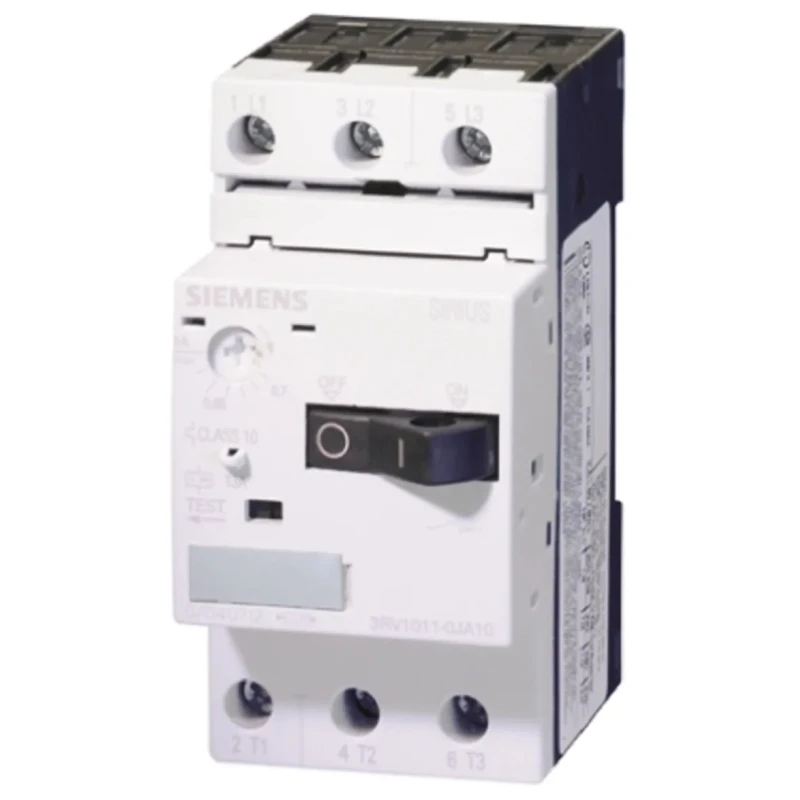

Siemens 4A 3RV1 Motor Protection Circuit Breaker 690V -20°C to 60°C 3RV1011-1EA15
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Model | 3RV1011-1EA15 |
| IP Rating | IP20 |
| Overall Length | 90mm |
| Current Rating | 4A |
| Series | 3RV1 |
| Overall Width | 45mm |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Reliability | the terminal connection is resistant to shock and vibration |
| Sensing type | Current |
| Supply Voltage | 690V |
| Number of Poles | 3 |
| Standards/Approvals | EN60947, VDE 0990, UL, UKCA, IEC 947, CSA |
| Overall Depth | 81mm |
| Motor Protection Component | Circuit Breaker |
| Motor Protection System | Motor Protection Circuit Breaker |
| Time saving | the connection can be made quickly without having to press on end sleeves |
| Reduced maintenance | the cage clamp system means that the checking of screw connections following transportation is unnecessary |
Key Features
- Provides precise overcurrent and short-circuit protection for induction motors.
- Compact and current limiting design suitable for motor feeders.
- Equipped with a 3-pole configuration ensuring effective motor control.
- Features IP20 protection rating for safe installation environments.
- Operation supported by Siemens SIRIUS Cage Clamp technology for secure wiring.
- Compatible for use at special voltages including 440V, 480V, 550V, and 690V.
- Electronic release mechanism sensitive to phase failure and unbalance conditions.
- Complies with EN60947, VDE 0990, UL, UKCA, IEC 947, and CSA standards.
Product Description
Siemens 3RV1011-1EA15 Motor Protection Circuit Breaker is a new, high-quality device designed for protecting motors in industrial and commercial electrical systems. Rated at 4A and suitable for supply voltages up to 690V, it operates efficiently within temperature limits from -20°C to 60°C.
This circuit breaker belongs to the Siemens 3RV1 series, known for compact design and current limiting capabilities. It is effective in switching and safeguarding induction motors, offering overload and short-circuit protection with an electronic release sensitive to phase failures and unbalances, ensuring system safety under challenging operational conditions.
The motor starter protector comes with a 3-pole configuration and an IP20 rating, making it suitable for a wide range of electrical installations. Its robust construction incorporates Siemens SIRIUS Cage Clamp technology for secure and vibration-resistant wiring connections, enabling quick installation without the need to press on end sleeves.
This motor protection circuit breaker complies with internationally recognized standards including EN60947, VDE 0990, UL, UKCA, IEC 947, and CSA. Manufactured in Germany, it guarantees reliability and longevity for industrial use.
Its versatility allows usage with various special voltages such as 440V, 480V, 550V, and 690V, and optimized protections make it ideal for motor feeders needing precise motor control and safety.
Provides precise overcurrent and short-circuit protection for induction motors. Compact and current limiting design suitable for motor feeders. Equipped with a 3-pole configuration ensuring effective motor control. Features IP20 protection rating for safe installation environments.
Operation supported by Siemens SIRIUS Cage Clamp technology for secure wiring. Compatible for use at special voltages including 440V, 480V, 550V, and 690V. Electronic release mechanism sensitive to phase failure and unbalance conditions.
Complies with EN60947, VDE 0990, UL, UKCA, IEC 947, and CSA standards. Manufactured in Germany with strict quality assurance. Reduces maintenance due to robust connection system technology.
This Motor Protection Circuit Breaker is ideal for industrial electrical automation, manufacturing plants, HVAC motor protection, water treatment pumps, and other critical motor-driven applications. Discover similar Siemens industrial electrical components and circuit breakers on EnvMart for comprehensive motor protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4A, suitable for protecting motors in various applications.
It can operate at a maximum supply voltage of 690V, making it versatile for different motor applications.
The operating temperature range is from -20°C to 60°C, allowing for use in various environmental conditions.
This motor protection circuit breaker is equipped with a 3-pole configuration, ensuring effective motor control.
The overall dimensions are 90mm in length, 45mm in width, and 81mm in depth.
It complies with several standards including EN60947, VDE 0990, UL, UKCA, IEC 947, and CSA.
It utilizes Siemens SIRIUS Cage Clamp technology, which ensures secure and vibration-resistant wiring connections.
Yes, it is compatible with special voltages including 440V, 480V, 550V, and 690V.
It provides precise overcurrent and short-circuit protection for induction motors, enhancing safety and reliability.
This model has an IP20 protection rating, making it suitable for safe installation environments.
The electronic release mechanism is sensitive to phase failure and unbalance conditions, ensuring enhanced operational safety.
It is manufactured in Germany, ensuring compliance with strict quality assurance standards.
