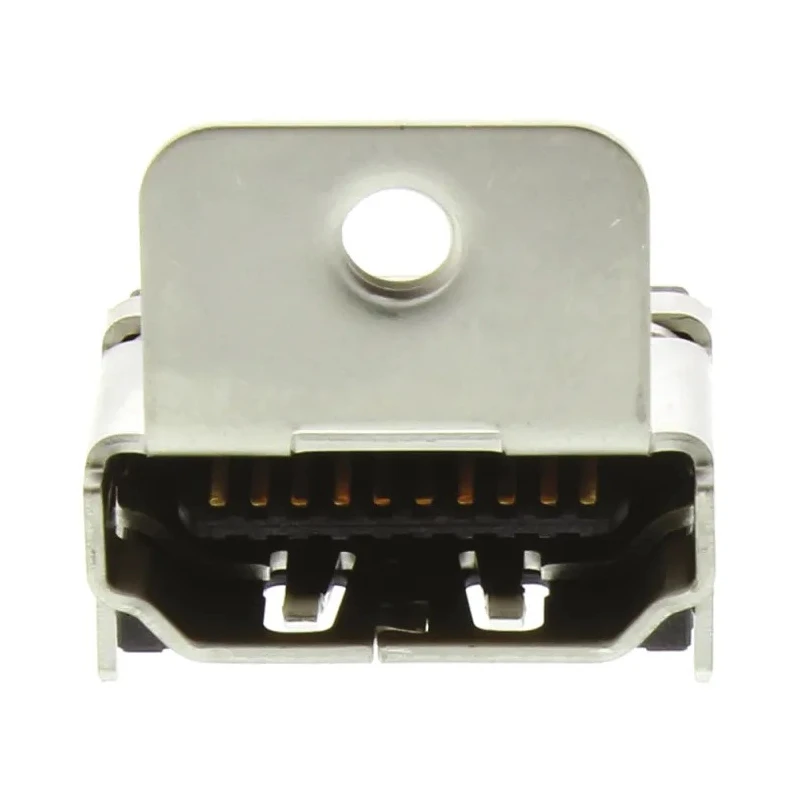

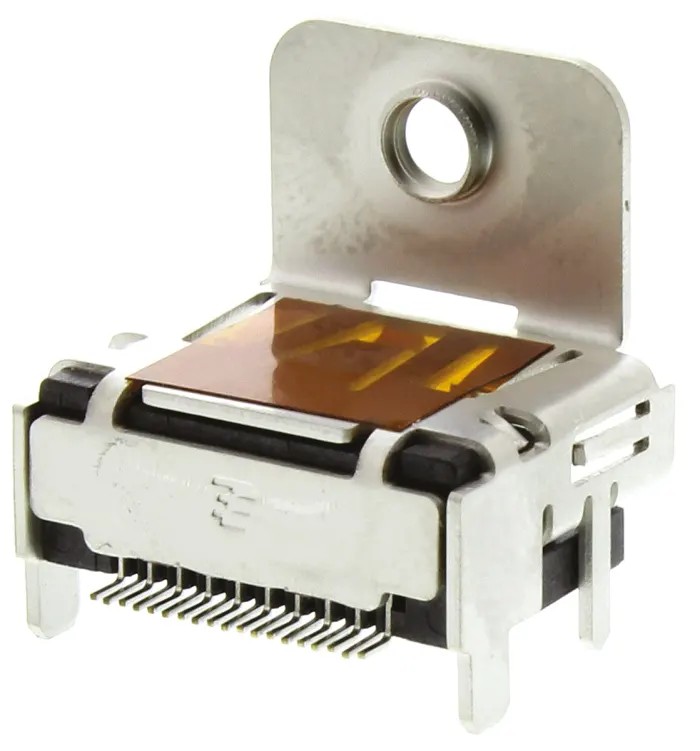

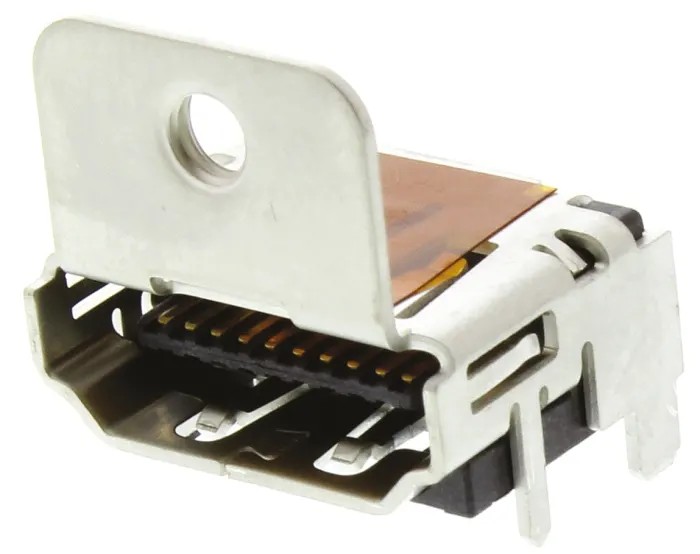

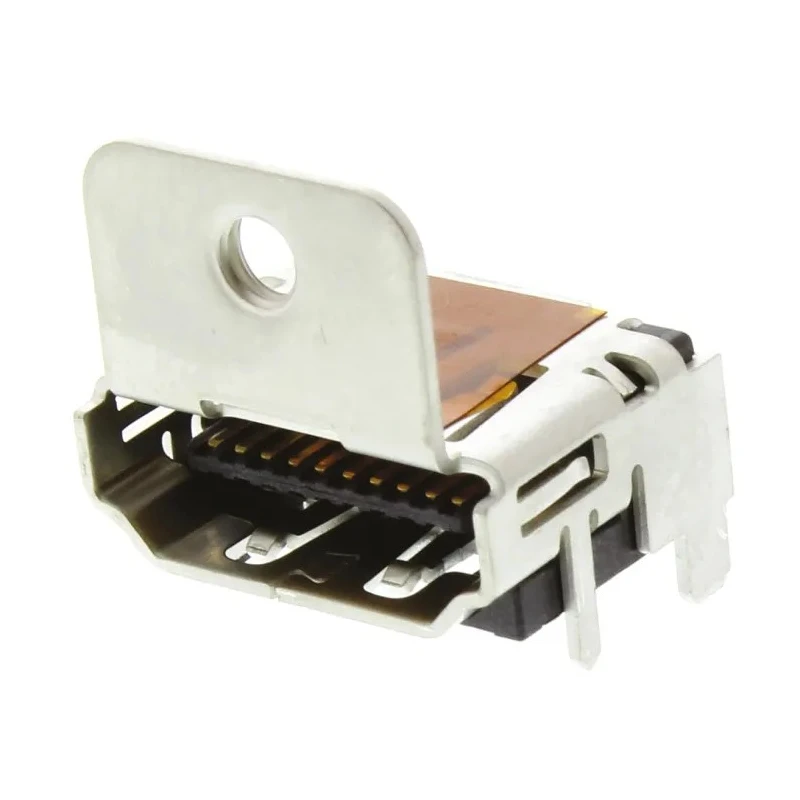

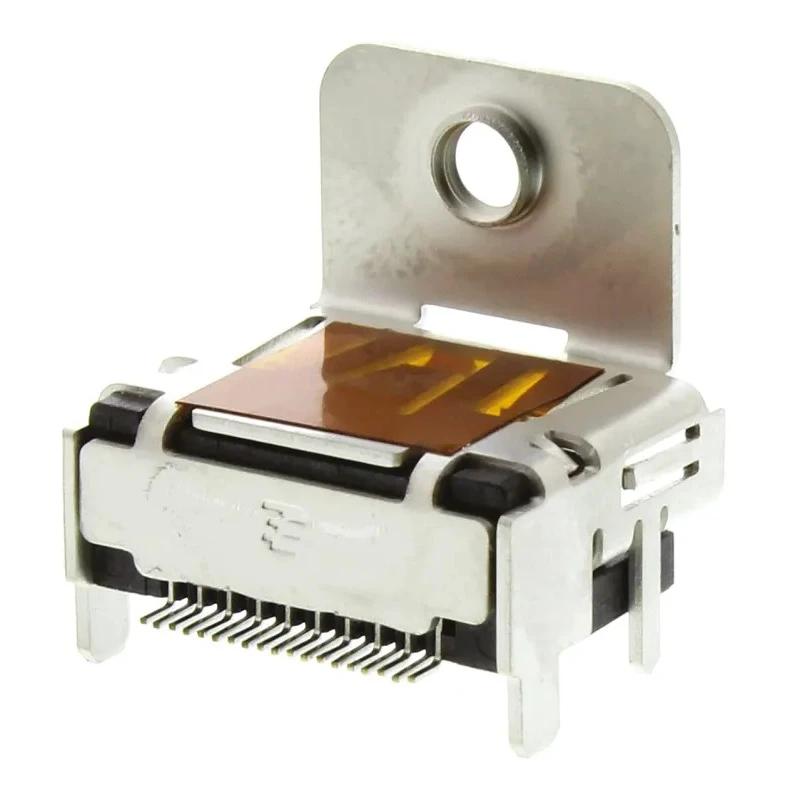

TE Connectivity Type A 19 Way Right Angle Female HDMI Connector 40V 1-1747981-1
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 40V |
| Size | Type A |
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Connector Gender | Female |
| TE Connectivity Standard 19 Way Right Angle HDMI ConnectorBrand | TE Connectivity |
Key Features
- This HDMI connector supports 19 contacts and delivers reliable 5 Gbps bandwidth.
- The connector features copper alloy contact material with gold over nickel plating for durability.
- It has a thermoplastic housing and black color finish.
- Designed with a surface mount type and solder termination for PCB integration.
- Operates across a wide temperature range from -55°C to 105°C.
- The connector orientation is right angle with a friction lock design ensuring secure contact.
- Suitable for electronic and audio/video applications requiring HDMI connectivity.
- Manufactured in China as a new product from TE Connectivity.
Product Description
TE Connectivity 1-1747981-1 is a Type A HDMI Connector featuring 19 contact positions and a right angle female orientation rated for 40 volts. The connector adopts a PCB surface mount receptacle style with an M3 threaded panel flange for secure mechanical mounting. It supports high-speed data transfer bandwidths of up to 5 Gbps, enabling simultaneous video and multi-channel audio transmission over a single cable.
The contact material is copper alloy plated with gold over nickel to ensure excellent conductivity and corrosion resistance, enhancing reliability in demanding electrical environments. It has a thermoplastic black housing that offers robustness and insulation. Termination is by solder, suitable for surface mount PCB assembly.
Designed for durability, this connector operates within an extended temperature range of -55°C to 105°C, making it suitable for various industrial, audio/video, and electronic applications. The right angle orientation aids in compact PCB designs and efficient cable management.
This product is compliant with industry standards though it does not hold specific certifications noted. Manufactured in China, it represents a high-quality HDMI connector solution for prototype development, electronic manufacturing, and repair.
This HDMI Connector supports 19 contacts and delivers reliable 5 Gbps bandwidth. The connector features copper alloy contact material with gold over nickel plating for durability. It has a thermoplastic housing and black color finish.
Designed with a surface mount type and solder termination for PCB integration. Operates across a wide temperature range from -55°C to 105°C. The connector orientation is right angle with a friction lock design ensuring secure contact.
Suitable for electronic and audio/video applications requiring HDMI connectivity. Manufactured in China as a new product from TE Connectivity. Explore the TE Connectivity range on EnvMart for advanced electronic components and connectors suitable for industrial, laboratory, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This HDMI connector is rated for 40 volts.
It supports 19 contacts.
The connector operates within a temperature range of -55°C to 105°C.
The contact material is copper alloy with gold over nickel plating, and it has a thermoplastic housing.
It uses a solder termination type suitable for surface mount PCB assembly.
This model features a right angle orientation.
The current rating for this HDMI connector is 500mA.
It supports a surface mount type with an M3 threaded panel flange for secure mechanical mounting.
This connector is manufactured in China.
The housing of this connector is black in color.
The friction lock design ensures secure contact, enhancing the reliability of the connection.
