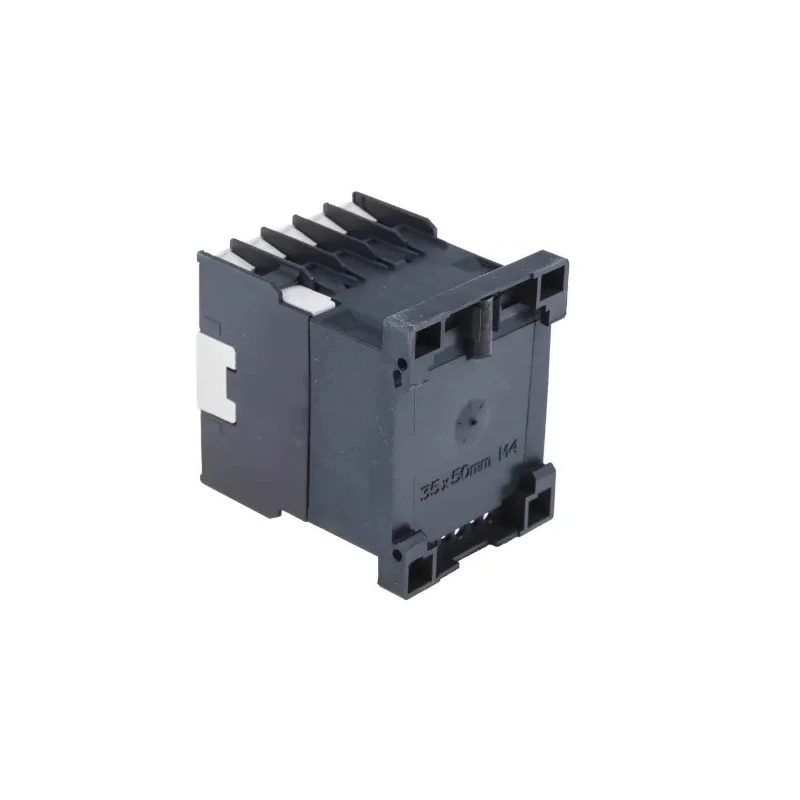

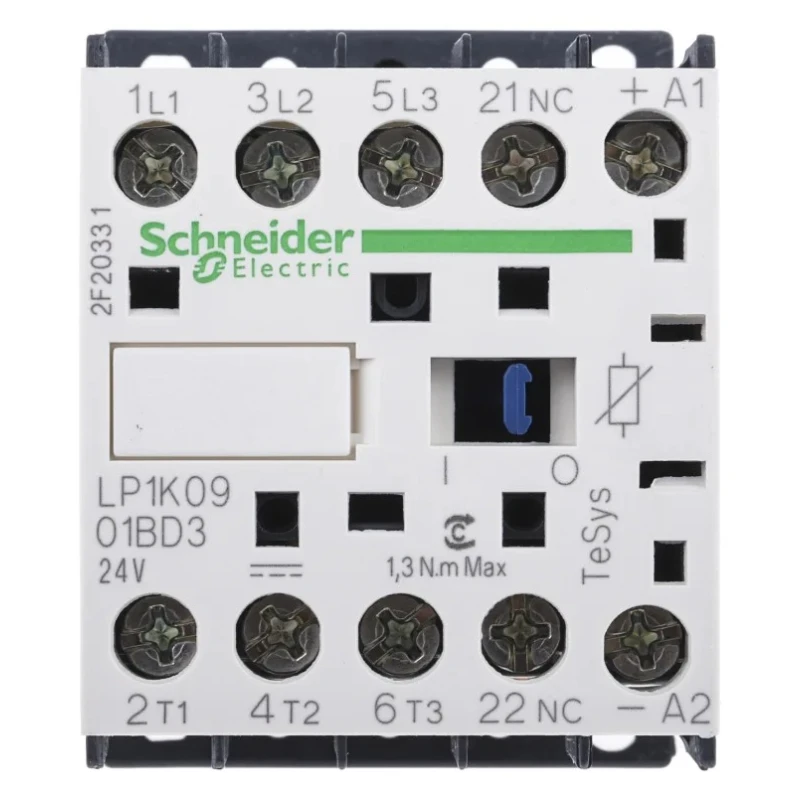

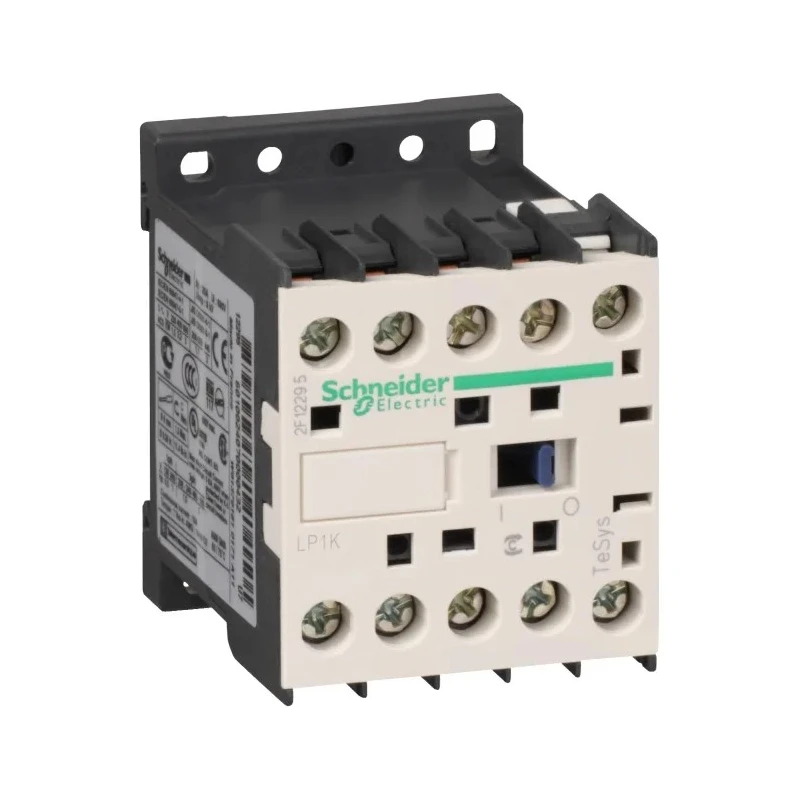

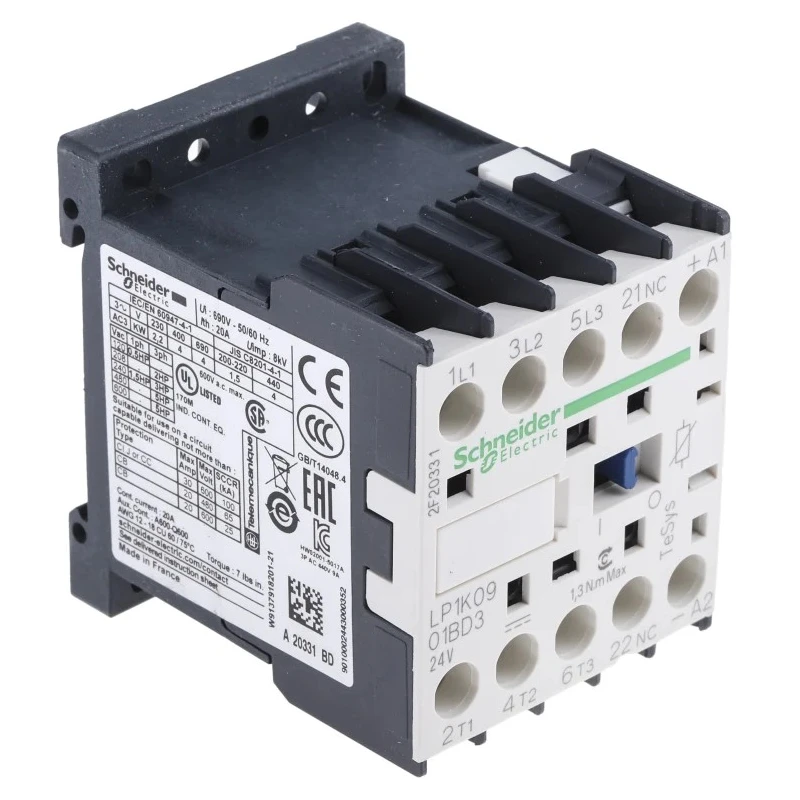

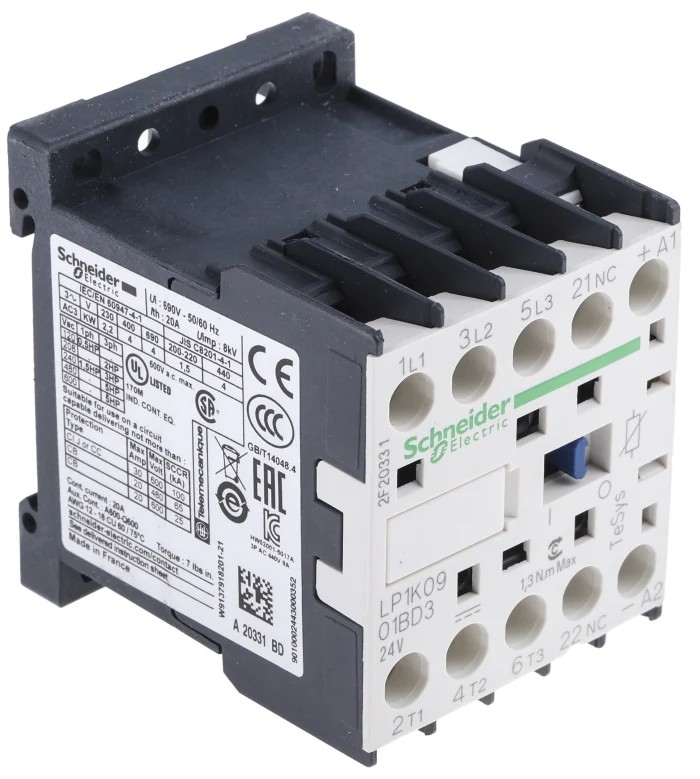

Schneider Electric LP1K Contactor, 24V DC Coil, 3-Pole, 9 A, 3 NO, 690V AC LP1K0901BD3

Schneider Electric LP1K0901BD3 is a high-quality 3-pole contactor with a 24V DC coil designed for precise motor control and resistive load applications, rated at 9A operational current at 690V AC. This contactor belongs to the LP1K series, known for compact design and reliable performance in industrial and commercial electrical automation.

The device mounts easily on DIN rails, allowing secure and space-efficient installation in control panels. Its thermoplastic housing offers excellent impact resistance and adds an essential insulation layer for enhanced operator safety.

Terminals are engineered with screw-type connectors that are finger-safe, reducing risks during wiring. The product functions effectively within an ambient temperature range from -25°C to +50°C, making it suitable for various climatic conditions encountered in industrial environments.

Key electrical features include a contact voltage of 690V AC, 3 normally open contacts providing flexible circuit control, and an auxiliary contact configuration featuring 1 normally closed contact for auxiliary signaling. The contactor also boasts a rated impulse withstand voltage of 8kV, safeguarding equipment from transient power surges.

Energy efficiency is maintained with a minimal power dissipation of 3W while supporting a motor control function and resistive load handling up to 4 kW power rating. The compact dimensions (58mm length, 45mm width, and 57mm depth) accommodate installations where space is limited.

The LP1K0901BD3 is certified to CSA and UL standards, ensuring compliance with stringent safety and performance regulations. Typical applications include controlling motors in HVAC systems, bucket lifts, and mixers in both industrial and commercial settings.

Designed and manufactured in France, this Schneider Electric contactor contributes to reliable and sustainable electrical control solutions. Its compactness, safety features, and robustness make it a preferred choice for engineers and technicians alike.

Equipped with a 24V DC coil voltage for efficient control. Features 3 normally open (NO) contacts for circuit management. Supports a contact current rating of 9 amps at 690 volts AC. Mountable on DIN rail for secure and space-saving installation.

Robust thermoplastic housing ensures impact resistance and electrical insulation. Terminal screws designed for finger-safe operation, enhancing user safety. Operating temperature range from -25°C to 50°C suitable for varied environments.

Low power dissipation of 3W contributes to energy efficiency. Rated impulse withstand voltage of 8kV to protect against power surges. Compact dimensions of 58mm (L) x 45mm (W) x 57mm (D) for space-constrained setups. Explore more Schneider Electric products and Contactors on EnvMart for trusted electrical automation solutions.
