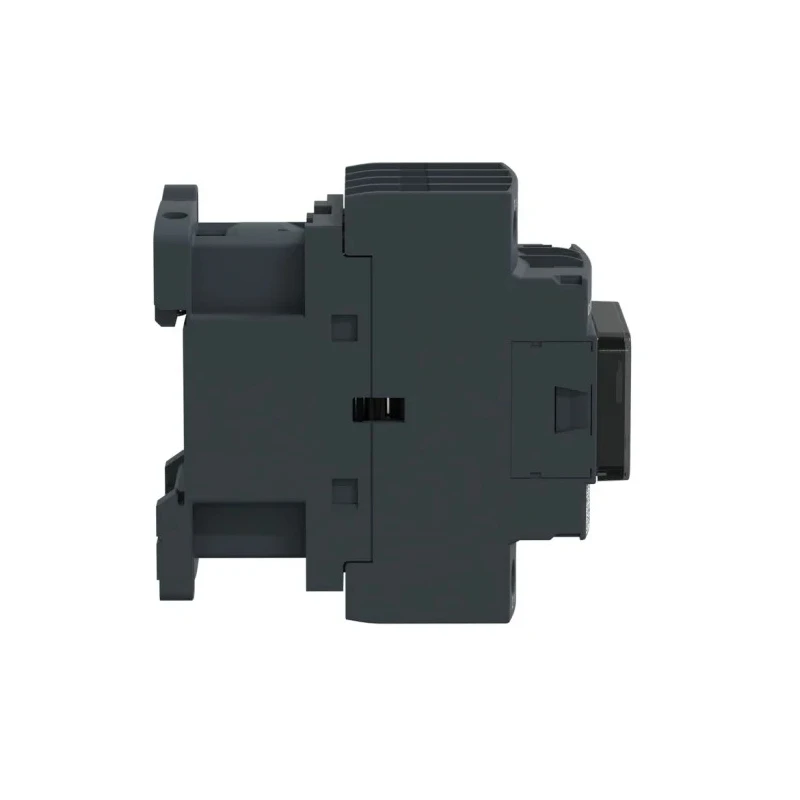

Schneider Electric LC1DT20M7 Contactor, 220V AC Coil, 4-Pole, 20A, 4 NO, 690V AC/DC LC1DT20M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT20M7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 220V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 20A contact current and 690V AC/DC contact voltage rating.
- Features four normally open (4 NO) contacts and two auxiliary contacts (1 NO).
- Mountable on DIN rail with screw clamp terminals for secure and reliable connections.
- Operates with a coil voltage of 220V AC at 50/60Hz frequency.
- Compact dimensions of 85mm length, 45mm width, and 92mm depth for efficient panel mounting.
- Designed to function reliably from -5°C up to 60°C ambient temperature.
- High operational current Ie of 20A supporting robust applications.
- Certified to UL, CSA, IEC, CCC, EAC, and Marine standards ensuring global compliance.
Product Description
Schneider Electric LC1DT20M7 is a high-quality TeSys D series contactor featuring a 220V AC coil for reliable motor control and resistive load applications. This 4-pole contactor supports a nominal contact current of 20A and can sustain contact voltages up to 690V AC/DC, making it suitable for various industrial and commercial automation systems.
The device includes four normally open contacts and two auxiliary contacts to provide flexible control options. Its DIN rail mounting and screw clamp terminals simplify installation and maintenance in control panels. The contactor is engineered to operate efficiently within a temperature range from -5°C up to 60°C, supporting harsh environmental conditions.
Compact in size with a width of 45mm and depth of 92mm, the LC1DT20M7 contactor provides high reliability with mechanical and electrical life designed to meet demanding industrial cycles up to 3600 operations per hour. It integrates quick-connect screw terminals that are IP20 finger-safe and clearly marked for both North American and International standards.
Certified to an extensive suite of international standards including UL, CSA, IEC, CCC, EAC, and Marine, the contactor assures compliance and safety for global applications. Additionally, it is a Green Premium product compliant with RoHS and REACh regulations, demonstrating Schneider Electric’s commitment to sustainability.
The contactor is widely used in motor starters, machinery controls, HVAC systems, manufacturing automation, water treatment plants, and other industrial automation solutions where reliable switching and motor control are essential.
Equipped with a 20A resistive load rating to handle diverse industrial loads. Features 1 normally open and 1 normally closed auxiliary contact, with NC mirror certification. Compact, robust construction suitable for panel or DIN rail mounting.
IP20 finger-safe terminals with dual-standard markings for versatile installation. Green Premium certified, supporting eco-friendly industrial solutions. Wide operating temperature range ensures durability in varied climates.
High cycling performance for long-term operational reliability. Explore more Contactors and control gear from Schneider Electric on EnvMart for superior automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 20A.
It operates with a coil voltage of 220V AC.
The maximum contact voltage rating is 690V AC/DC.
This contactor features four poles (4 NO).
It is designed to operate efficiently within a temperature range of -5°C to 60°C.
This model is mountable on DIN rail.
The dimensions are 85mm in length, 45mm in width, and 92mm in depth.
It includes two auxiliary contacts, with one normally open (1 NO) configuration.
It is certified to UL, CSA, IEC, CCC, EAC, and Marine standards.
It features IP20 finger-safe screw terminals with dual-standard markings.
This contactor is suitable for motor control and resistive load applications in various industrial and commercial automation systems.
The operational current rating (Ie) is 20A.
