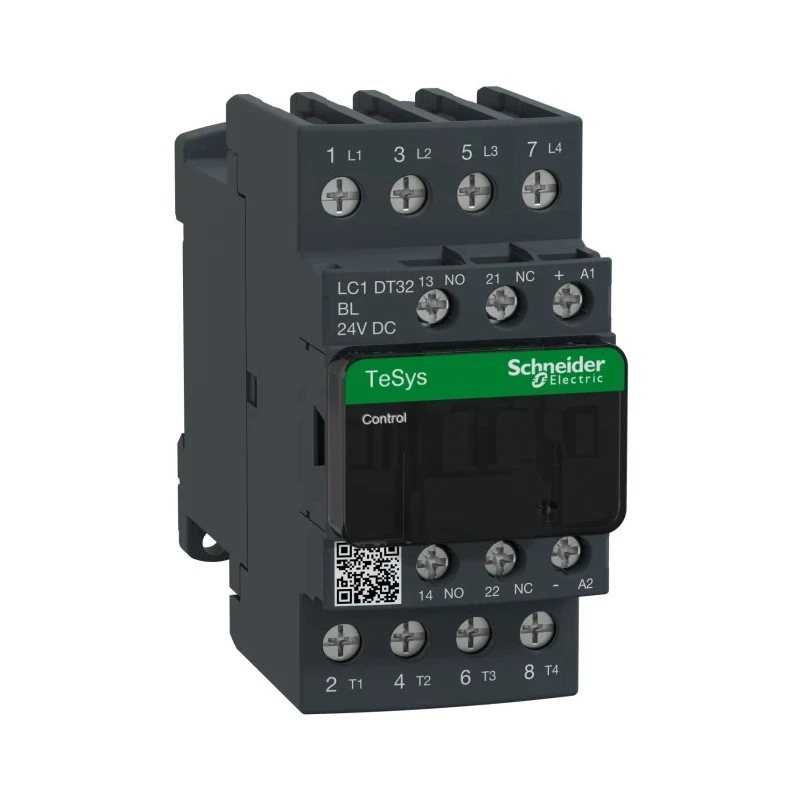

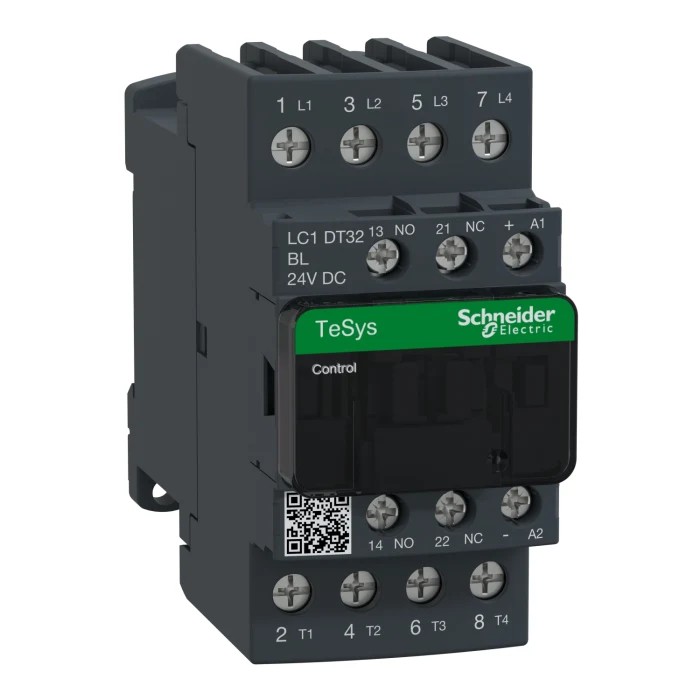

Schneider Electric LC1D Contactor 24V DC Coil, 4-Pole, 32A, 14.08kW, 4 NO, 690V AC/DC LC1DT32BL
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT32BL |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 14.08kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load switching with high reliability.
- Operates at 24V DC coil voltage with 4 poles and 4 normally open contacts.
- Rated contact current of 32A and contact voltage of 690V AC/DC.
- Wide operating temperature range from -40°C to +60°C for varied environments.
- Includes 2 auxiliary contacts with screw terminal type for secure connections.
- Mechanical lifespan of up to 30 million cycles ensuring long-lasting performance.
- Compliant with CSA and UL standards for safety and quality assurance.
Product Description
Schneider Electric LC1DT32BL contactor features a robust 24V DC coil and a 4-pole configuration designed for use in motor control and resistive load switching applications. It delivers a power rating of 14.08 kW and supports a contact current of 32A at a contact voltage of 690V AC/DC, making it suitable for heavy-duty electrical switching tasks.
Compactly designed to fit DIN rail mounting systems, this contactor measures 45mm wide, 91mm high, and 107mm deep, allowing easy integration into crowded electrical panels. The device supports a wide temperature operating range from -40°C to +60°C, ensuring reliable operation in diverse and demanding industrial environments.
Equipped with 4 normally open (NO) contacts and 2 auxiliary contacts (configured as 1 NO), the LC1DT32BL has screw-type terminals providing IP20 finger-safe protection with clear international and North American terminal markings for easy wiring and enhanced safety.
Designed with longevity in mind, this contactor offers a mechanical lifespan of up to 30 million cycles and can operate up to 3600 cycles per hour, supporting continuous, high-frequency switching needs typical in HVAC, lighting controls, domestic electrical supplies, and other automation systems.
The contactor complies with CSA and UL standards, ensuring its use in certified electrical installations, with additional features such as a bidirectional peak limiting diode suppressor to protect the coil and flexible control circuit options for diverse application requirements.
Applications include lighting controls, heating systems, motor starters, and various industrial automation setups. Installation is streamlined with DIN rail mounting compatibility and optional accessories like the TeSys Deca safety cover for added user protection.
Designed for reliable motor control and resistive load applications. Supports industrial, laboratory, HVAC, and manufacturing automation needs. Wide temperature operation ensures durability in harsh conditions. Complies with international safety standards CSA and UL.
Includes auxiliary contacts and screw terminals for enhanced switching and connection security. Explore our range of automation components and Contactors at EnvMart to optimize your industrial and commercial electrical systems with trusted Schneider Electric products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT32BL contactor has a power rating of 14.08 kW.
This model supports a maximum contact voltage of 690V AC/DC.
The rated contact current of this contactor is 32A.
The coil voltage for the LC1DT32BL contactor is 24V DC.
This contactor has a 4-pole configuration.
The operating temperature range for this unit is from -40°C to +60°C.
It features screw-type terminals with IP20 finger-safe protection.
Yes, it includes 2 auxiliary contacts configured as 1 normally open (NO).
This contactor measures 45mm in width, 91mm in height, and 107mm in depth.
The contactor complies with CSA and UL standards for safety and quality assurance.
It is designed for motor control, resistive load switching, HVAC, lighting controls, and various industrial automation setups.
This model is designed for DIN rail mounting, allowing easy integration into electrical panels.
