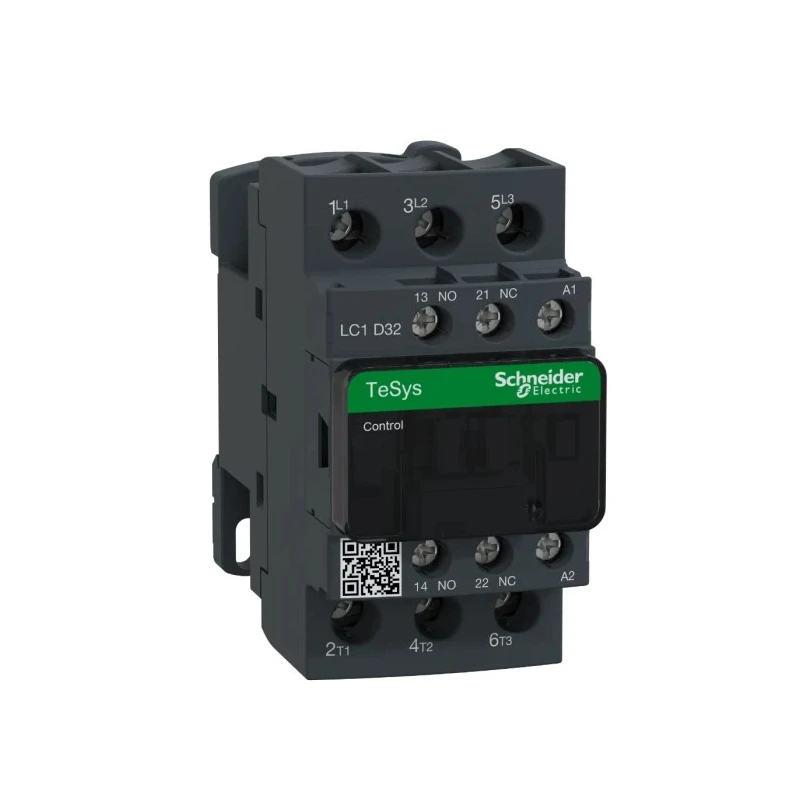

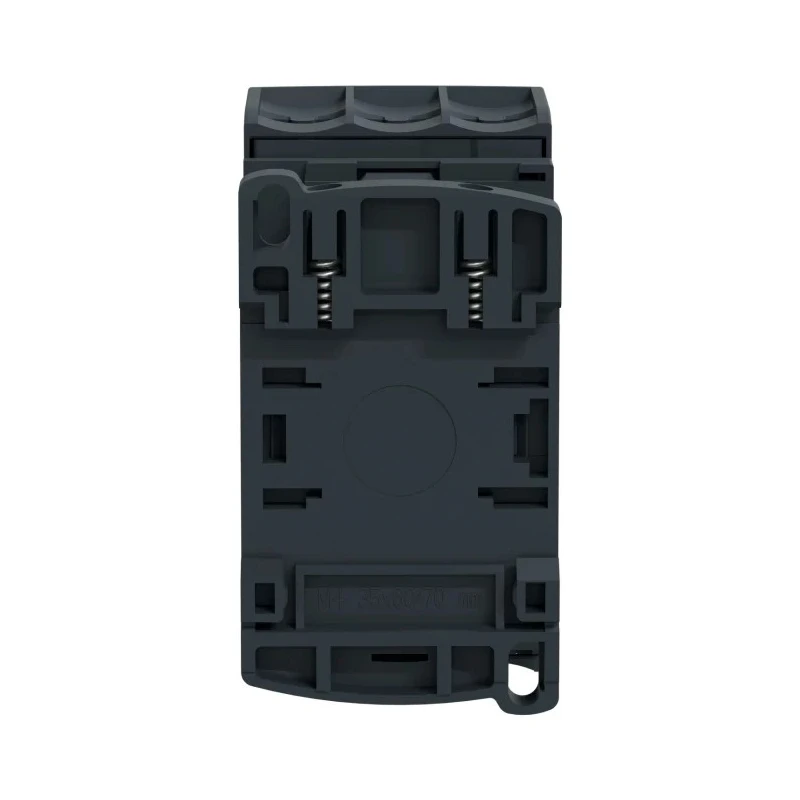

Schneider Electric Motor Control Contactor, 3-Pole, 32 A, 2 HP, 480V AC Coil, 690V AC/DC, Screw Terminals LC1D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 480V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 480V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for reliable motor starter applications with a 3 pole configuration and 3 NO contacts.
- Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC for enhanced switching capability.
- Screw terminals provide IP20 finger-safe connections with international and North American markings.
- Flexible DIN rail or panel mounting for diverse installation requirements.
- Operates within a temperature range of -5°C to 60°C ensuring durability under varied environmental conditions.
- Complies with CSA and UL standards, ensuring safety and performance compliance.
- Bidirectional peak limiting diode suppressor protects the coil from voltage spikes.
- Compact dimensions (85 mm length x 45 mm width x 92 mm depth) aid space-efficient panel integration.
Product Description
Schneider Electric LC1D32T7 is a high-reliability motor control contactor designed for demanding industrial automation and electrical applications. Featuring a coil voltage of 480V AC, this 3-pole device manages currents up to 32 A and supports motor loads up to 2 HP at 480V AC, making it ideal for various motor control and resistive load situations.
This product includes 3 normally open (NO) main contacts, complemented by built-in auxiliary contacts arranged as 1 NO and 1 NC, providing additional switching flexibility. With IP20 finger-safe screw terminals and clear terminal markings compatible with international and North American standards, safe wiring and maintenance are ensured.
The LC1D32T7 is engineered for easy integration with DIN rail or screw panel mounting options. Its operational temperature range from -5°C to 60°C ensures resilient performance even in challenging environments. Additionally, built-in features such as a bidirectional peak limiting diode protect the coil against voltage transients, enhancing operational longevity.
Constructed to comply with CSA and UL safety standards, this contactor offers dependable functionality combined with ergonomic dimensions (85mm length, 45mm width, 92mm depth) for compact installations.
Applications include industrial motor starters, HVAC systems, compressors, pump controls, conveyors, and other automation systems requiring robust contactor performance. The LC1D range features linear translation technology supporting double-break contacts for superior switching reliability.
Designed for motor control and resistive load applications. 3-pole configuration with 3 NO contacts and 2 auxiliary contacts (1 NO, 1 NC). Screw terminal connections with IP20 finger-safe protection. DIN rail and panel mounting flexibility.
Operational temperature from -5°C to 60°C. Compact dimensions ideal for panel integration. Compliant with UL and CSA international safety standards. Protective diode suppressor for coil protection. Part of the LC1D TeSys D contactor series known for long operational life.
This Schneider Electric contactor is essential for reliable industrial automation, electrical motor control, and HVAC applications. Explore more products and solutions in the Automation & Control Gear category at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum current rating of 32 A, making it suitable for various motor control applications.
It operates within a temperature range of -5°C to 60°C, ensuring functionality in diverse environmental conditions.
The coil voltage for this contactor is 480V AC, which is standard for many industrial applications.
This contactor features a 3-pole configuration, which is typical for motor control applications.
It is equipped with screw terminals that provide IP20 finger-safe connections, ensuring safe wiring and maintenance.
This model includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), enhancing its switching capabilities.
The dimensions of this contactor are 85 mm in length, 45 mm in width, and 92 mm in depth, allowing for compact installations.
It complies with CSA and UL standards, ensuring safety and performance in industrial applications.
This contactor is suitable for applications including industrial motor starters, HVAC systems, compressors, and pump controls.
It can be mounted using DIN rail or screw panel mounting options, providing flexibility for installation.
The power rating of this model is 2 HP, making it suitable for various motor control and resistive load situations.
This contactor includes a bidirectional peak limiting diode suppressor to protect the coil from voltage spikes, enhancing its operational longevity.
