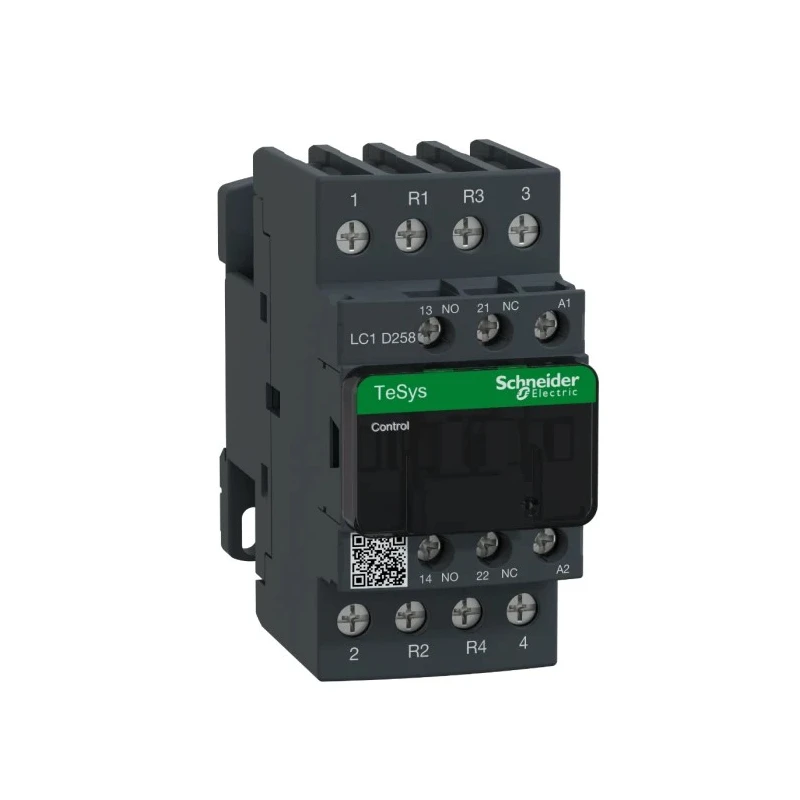

Schneider Electric LC1D Contactor, 230V AC Coil, 4-Pole, 40A 240V, 2 NO/2 NC, 690V AC/DC LC1D258U7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 105mm |
| Model | LC1D258U7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Coil voltage rated at 230V AC ensuring reliable operation.
- Features 4 poles with contact current capacity of 40A at 240V.
- Configuration includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
- Designed for use up to a maximum operating temperature of 60°C.
- Mounting options include DIN rail and panel mounting with screw connections.
- Equipped with screw terminals compliant with IP20 finger-safe standards.
- Operational life combines mechanical and electrical endurance for high reliability.
- Compliant with CSA and UL safety standards.
Product Description
Schneider Electric LC1D258U7 is a high-quality, durable contactor equipped with a 230V AC coil and 4 poles, each rated for 40A at 240V. This contactor is engineered for applications involving motor control and resistive loads, offering high reliability and excellent resistance to shock and vibration.
The device features 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, providing flexible configuration options. It supports control circuit voltages of 240V and operates effectively in temperatures ranging from -5°C to 60°C. The contactor is designed for DIN rail mounting or direct panel mounting, secured by screw connections with IP20 IP20 finger-safe terminals that meet both North American and International marking standards.
This model complies with UL and CSA standards, ensuring industrial safety and performance. It includes auxiliary contacts configured with 1 NO and 1 NC contact to expand its control capabilities. The Schneider Electric LC1D contactors use a linear translation mechanism providing double breaking of the poles, which enhances operational safety and longevity.
Typical applications involve switching resistive loads and motor starting duties, suitable for industrial, HVAC, manufacturing, and commercial automation systems. The TeSys D range is ideal for integration into control panels requiring dependable Contactors with simple setup and substantial durability.
Accessories available for this contactor include auxiliary contact blocks with serrated wiping action, front-mounted dust-tight auxiliary contacts, pneumatic time delay blocks, transient voltage surge suppressors, interface modules, electronic timers, and mechanical latching blocks.
Coil voltage: 230V AC for consistent activation. Poles: 4 poles enabling multi-circuit control. Contact configuration: 2 NO and 2 NC provides versatility. Operating temperature range: -5°C to 60°C supports varied environments.
Mounting: DIN rail or panel with screw connections. Auxiliary contacts: 1 NO and 1 NC for extended control functions. Protection: IP20 finger-safe terminals ensure user safety. Approvals: UL and CSA certified for industrial standards compliance.
Robust build: Designed for mechanical and electrical longevity. Suitable for industrial automation, manufacturing, HVAC, and resistive load control. Explore more Schneider Electric automation and control gear products on EnvMart for efficient and reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is rated at 230V AC, ensuring reliable operation.
It has a contact current capacity of 40A at 240V.
This contactor features 4 poles, allowing for multi-circuit control.
The operating temperature range for this model is from -5°C to 60°C.
It includes 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, providing flexible configuration options.
It can be mounted on a DIN rail or directly on a panel using screw connections.
The contactor is equipped with screw terminals that are compliant with IP20 finger-safe standards.
This unit includes 2 auxiliary contacts configured as 1 Normally Open (NO) and 1 Normally Closed (NC).
It complies with UL and CSA safety standards, ensuring industrial safety and performance.
It is designed for motor control and resistive load applications, suitable for industrial and commercial automation systems.
The dimensions of this model are 105mm in length, 99mm in depth, and 45mm in width.
This contactor can switch resistive loads and is suitable for applications involving motor starting duties.
