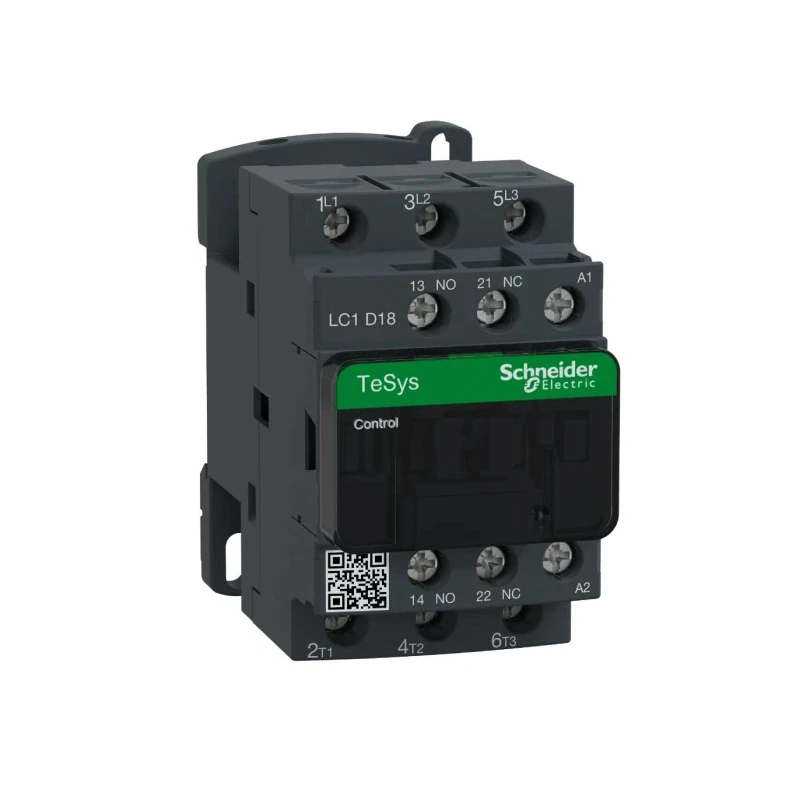

Schneider Electric LC1D TeSys D 3-Pole Contactor, 42V AC Coil, 18A Contact Current, 230V Control Voltage, 690V AC/DC LC1D18D7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 77mm |
| Model | LC1D18D7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 42V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 250A |
| Control Circuit Voltage Uc | 230V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a coil voltage of 42V AC for reliable operation.
- Supports a contact current of 18A at 690V AC/DC.
- Includes 3 poles and a normal state configuration of 3 NO (normally open) contacts.
- Equipped with 2 auxiliary contacts configured as 1 NO and 1 NC for additional switching functions.
- Mounts easily on DIN rail or panel with screw connections and IP20 finger-safe terminals.
- Control circuit voltage is 230V for integration with various control systems.
- Operational current up to 250A for robust motor starting and switching.
- Designed to operate between temperatures of -5°C and 60°C for a variety of industrial environments.
Product Description
Schneider Electric LC1D18D7 3-Pole Contactor from the TeSys D series is engineered for high reliability and long mechanical and electrical life in motor control and automation applications.
It operates with a 42V AC coil and features a contact current rating of 18A at up to 690V AC/DC, suitable for controlling motors and other loads requiring frequent switching.
The contactor includes 3 NO contacts in the normal state configuration and is equipped with 2 auxiliary contacts (1 NO and 1 NC) to enhance switching capabilities for control circuits.
The device supports a control circuit voltage of 230V and an operational current (Ie) of 250A, ensuring efficient motor starting and stopping under diverse industrial conditions. Designed for DIN rail or panel mounting, it features screw connections with IP20 finger-safe terminals and markings suitable for both North American and International standards.
Operational between -5°C and 60°C, the contactor is suitable for a range of industrial, manufacturing, HVAC, and automation environments. Compliant with CSA and UL standards, the unit is a 'Better World' product designed for disassembly and sustainability.
42V AC coil voltage for reliable motor control. 18A contact current rating at 690V AC/DC. 3-pole configuration with 3 NO contacts. 2 auxiliary contacts configured as 1 NO and 1 NC. Screw terminal connections with IP20 finger safety.
Control voltage of 230V for control circuit compatibility. Operational current rating up to 250A. Wide temperature operating range from -5°C to 60°C. Compact dimensions: 45mm width, 77mm length, 86mm depth. Complies with CSA and UL international approvals.
This contactor is essential for motor control in industrial automation, manufacturing equipment, HVAC systems, and other electrical control applications. The robust build and compliance with multiple standards ensure dependable performance and safety.
Discover the range of Schneider Electric automation and control gear at EnvMart for advanced electrical control solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 18A at 690V AC/DC.
This model operates with a coil voltage of 42V AC.
It features a 3-pole configuration with 3 normally open (NO) contacts.
The operational current capacity is up to 250A.
The dimensions are 45mm in width, 77mm in length, and 86mm in depth.
The control circuit voltage is 230V.
It is designed for DIN rail mounting with screw connections.
This contactor operates within a temperature range of -5°C to 60°C.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor complies with CSA and UL standards.
It is designed for motor control in industrial automation, manufacturing equipment, and HVAC systems.
It is designed for disassembly, supporting sustainability efforts.
