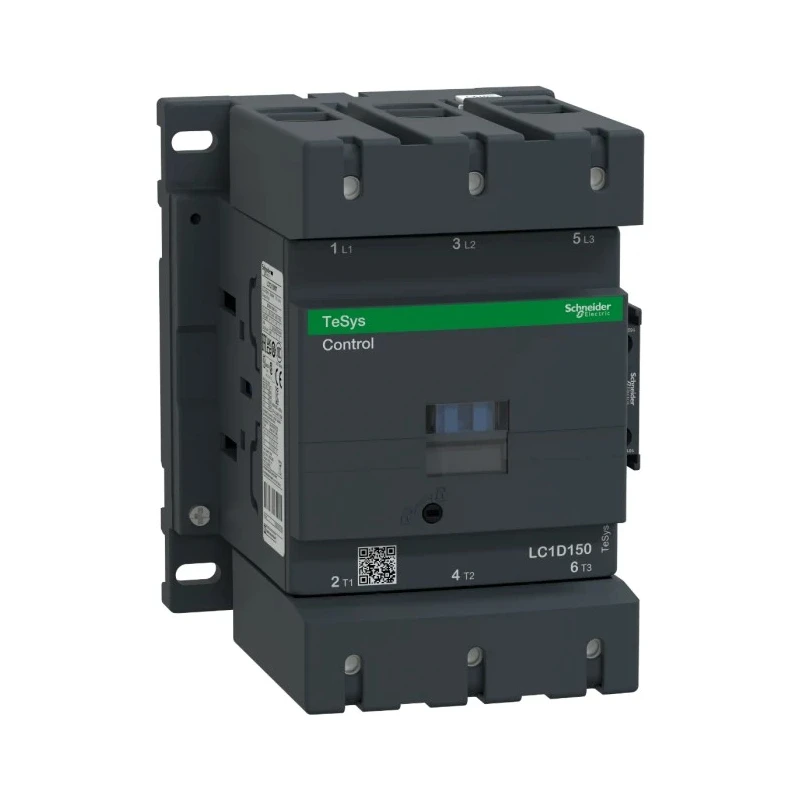

Schneider Electric LC1D Contactor, 400V AC Coil, 3-Pole, 150 A, 80 kW 415V, 3 NO, 1 kV AC LC1D150N7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D150N7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 80kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 1kV ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 415V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Rated for 150 amperes and 80 kW at 415 volts AC.
- Operates with a 400V AC coil providing reliable motor control.
- Features 3 normally open poles and 2 built-in auxiliary contacts (1 NO / 1 NC).
- Compact design with dimensions of 158 mm length, 120 mm width, and 136 mm depth.
- Suitable for motor control and resistive load applications with a control circuit voltage of 415V.
- Mounts easily on DIN rail or by screws for flexible installation.
- High operating temperature range from -5°C to 60°C ensuring durability in harsh environments.
- Complies with UL, CSA standards and is a Green Premium product meeting RoHS and REACh standards.
Product Description
Schneider Electric LC1D150N7 is a high-performance TeSys Deca contactor designed for industrial motor control applications. It features a 3-pole configuration with a 400V AC coil and supports a contact current of 150 amperes with a power rating of 80 kW at 415V. This contactor is ideal for controlling motors and resistive loads, offering high reliability and durability with an operating temperature range of -5°C to 60°C.
The device includes 3 normally open main contacts and 2 auxiliary contacts (1 normally open and 1 normally closed), providing enhanced switching capabilities. The screw clamp terminals are IP20 finger-safe with both North American and international terminal markings, enabling safe and easy wiring. Its compact size (158 mm length, 120 mm width, 136 mm depth) and lightweight design facilitate flexible mounting options on DIN rails or with screws.
Certified under multiple international standards including UL, CSA, IEC, CCC, EAC, and Marine, the LC1D150N7 contactor also meets environmental regulations such as RoHS and REACh, classifying it as a Green Premium product. The built-in transient suppressor diode protects the coil from voltage spikes, while the contactor supports up to 1200 operating cycles per hour for demanding industrial environments.
150 A contact current and 80 kW power rating at 415V. 400V AC coil voltage suitable for industrial motor control. Compact, durable design with an extensive temperature operating range. Certified to international safety and environmental standards.
Flexible mounting and easy installation with screw and DIN rail options. Equipped with built-in auxiliary contacts for added functionality. Secure screw clamp terminals with comprehensive terminal markings. Supports high switching frequency for industrial automation.
Used widely in industrial automation, manufacturing plants, HVAC systems, and motor control centers, this contactor ensures reliable performance and extended service life. It is a vital component for integrating motor starters and control circuits in electrical automation systems. Explore more Schneider Electric products and advanced automation gear on EnvMart for comprehensive solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D150N7 contactor has a rated contact current of 150 amperes.
This contactor has a power rating of 80 kW at 415 volts AC.
It operates with a coil voltage of 400V AC.
This model features a 3-pole configuration.
The operating temperature range for the LC1D150N7 is from -5°C to 60°C.
It includes 2 auxiliary contacts, with 1 normally open (NO) and 1 normally closed (NC).
The dimensions are 158 mm in length, 120 mm in width, and 136 mm in depth.
It can be mounted easily on DIN rails or by screws, providing flexible installation options.
This contactor complies with UL and CSA standards, among others.
It is suitable for motor control and resistive load applications.
It features screw clamp terminals that are IP20 finger-safe with both North American and international terminal markings.
The LC1D150N7 supports up to 1200 operating cycles per hour, making it suitable for demanding industrial environments.
