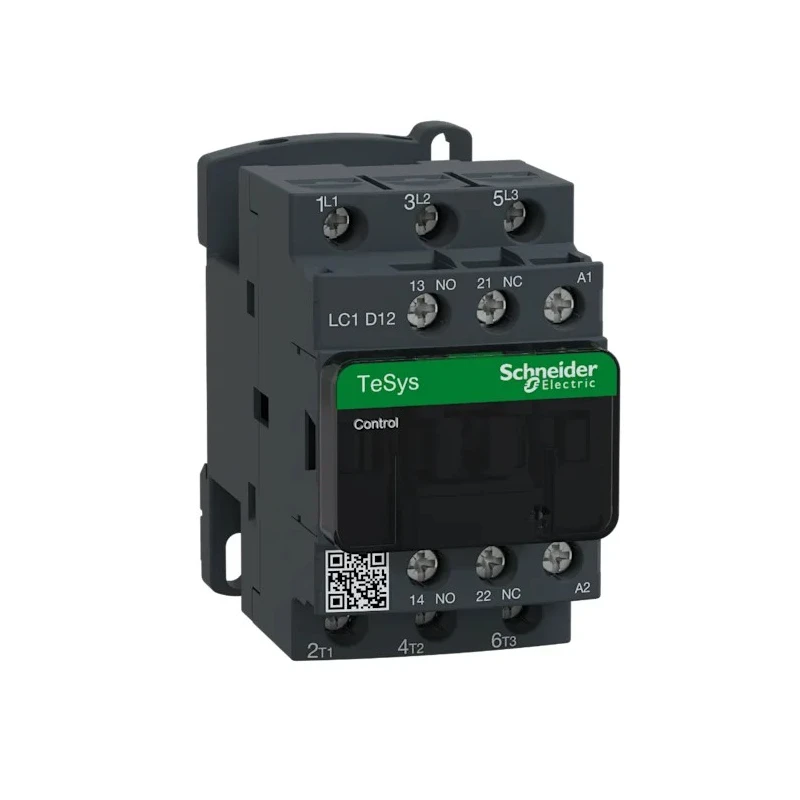

Schneider Electric LC1D Contactor, 440V AC Coil, 3-Pole, 12A, 0.5 HP 230V, 3 NO, 690V AC LC1D12R7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 77mm |
| Model | LC1D12R7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 0.5HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 440V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 230V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor supports a 690V AC contact voltage and features 3 normally open poles.
- It includes 2 auxiliary contacts with a 1 NO and 1 NC configuration.
- Mounting is via DIN rail, ensuring easy installation and integration.
- Screw clamp terminals provide secure, finger-safe connections with international markings.
- Operates reliably within a temperature range of -40°C to 60°C.
- Designed for high durability with up to 3600 operating cycles per hour.
- Compact dimensions allow space-saving installations (45mm width, 77mm length, 86mm depth).
- Complies with multiple international standards including UL, CSA, IEC, CCC, and Marine certifications.
Product Description
Schneider Electric LC1D12R7 is a high-performance TeSys D contactor designed for motor control applications requiring reliable switching of currents up to 12 amperes and power ratings up to 0.5 HP at 230V. The 3-pole design features a 440V AC coil operating at 50/60 Hz and provides 3 normally open main contacts while integrating 1 NO and 1 NC built-in auxiliary contacts. This contactor is suitable for industrial, manufacturing, HVAC, and commercial motor control systems.
Featuring compact dimensions with 45mm width, 77mm length, and 86mm depth, the LC1D12R7 is DIN rail mountable or can be fixed by screw for secure installation. Screw clamp terminals ensure IP20 finger-safe protection and compliance with both North American and international terminal markings.
Operational in temperature extremes ranging from -40°C to 60°C, it delivers high durability for up to 3600 cycles per hour. The device supports a control circuit voltage of 230V, an operational current Ie of 25A, and a contact voltage and current rating of 690V AC and 12A respectively.
Certified to global standards including UL, CSA, IEC, CCC, EAC, and Marine, the contactor boasts Green Premium status for sustainability with RoHS and REACh compliance. It is ideal for integration in motor starters across various industrial and commercial applications including conveyors, compressors, lifts, and air conditioning units.
The product offers auxiliary switching capabilities with built-in auxiliary contacts for enhanced functionality. Screw terminals provide safe and reliable electrical connections. Suitable for controlling 3-phase motors with power ratings up to 10 HP at 600V.
Designed for easy system integration and high operational reliability. Compact and robust construction for versatile installation environments. Meets demanding industrial environmental and operational conditions.
This Schneider Electric LC1D12R7 contactor is a trusted component in automation and control systems, certified to meet rigorous performance and safety standards. Explore more products in the Automation & Control Gear category at EnvMart to complete your industrial setup.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 690V AC.
It has a power rating of 0.5 HP at 230V.
This contactor features a 3-pole design with 3 normally open contacts.
The operational current rating (Ie) is 25A.
The coil voltage for this model is 440V AC.
The dimensions are 45mm in width, 77mm in length, and 86mm in depth.
It supports DIN rail mounting for easy installation.
It operates reliably within a temperature range of -40°C to 60°C.
This contactor includes 2 auxiliary contacts with a configuration of 1 NO and 1 NC.
It complies with multiple international standards including UL and CSA.
It is suitable for motor control applications in industrial, manufacturing, HVAC, and commercial settings.
It uses screw clamp terminals that provide IP20 finger-safe protection.
