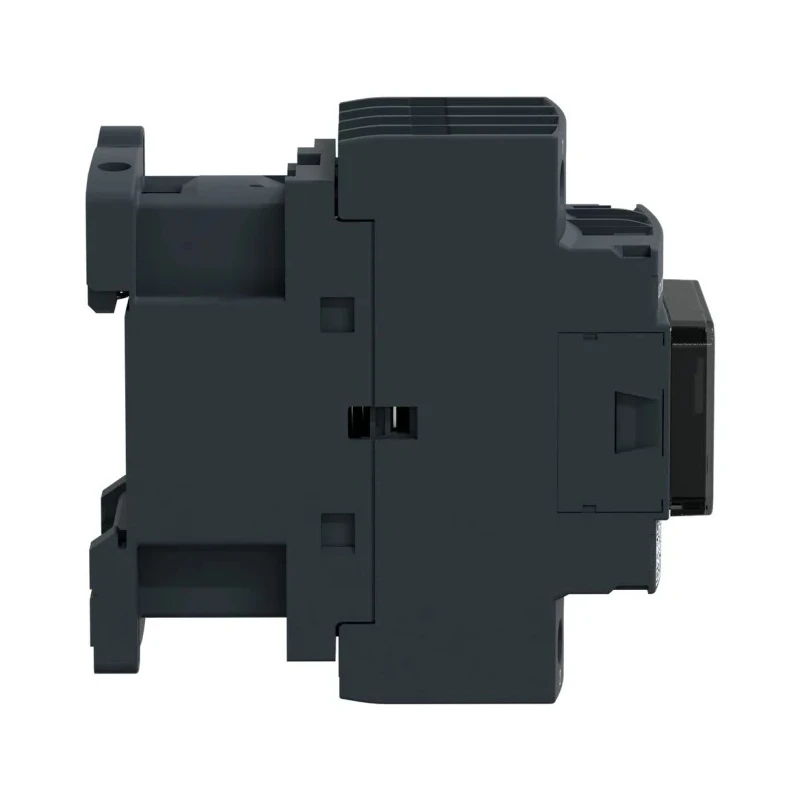

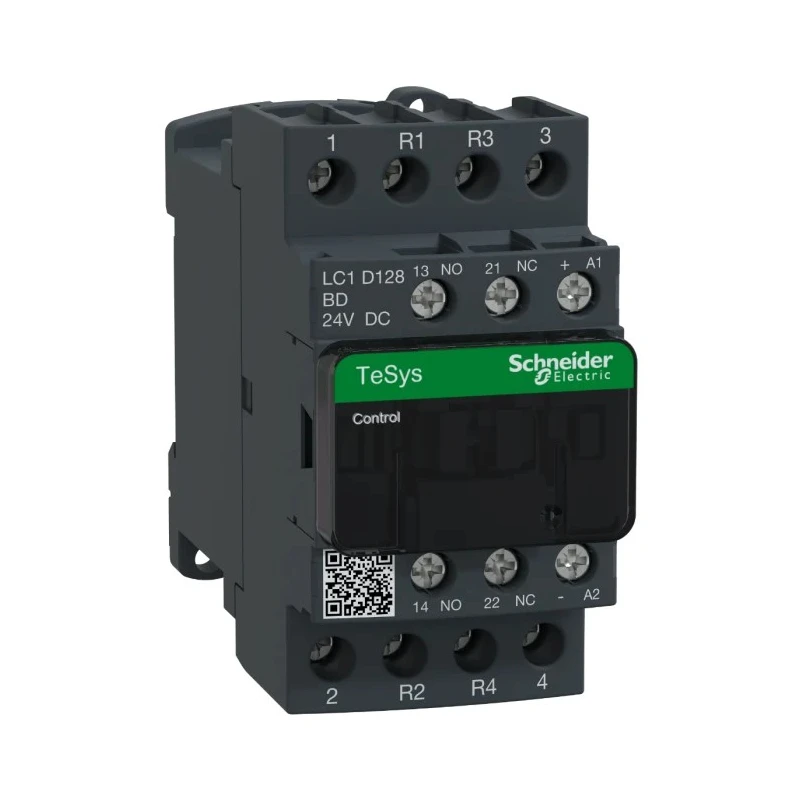

Schneider Electric LC1D Contactor 24V DC Coil 4-Pole 25A 2 NO/2 NC 690V AC/DC LC1D128BD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 85mm |
| Model | LC1D128BD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 4-pole configuration with 2 normally open and 2 normally closed contacts.
- Designed for use in motor starters and various control systems.
- Wide operating temperature range from -40°C to 60°C ensures reliability.
- Compact design with 45mm width suitable for DIN rail mounting.
- Includes 1NO and 1NC auxiliary contacts built-in for additional control functionality.
- Equipped with screw clamp terminals for secure electrical connections.
- High durability with operational reliability up to 3600 cycles per hour.
- Certified to IEC, UL, CSA, CCC, EAC, and Marine standards ensuring safety and quality.
Product Description
Schneider Electric LC1D128BD is a 4-pole TeSys D contactor designed for industrial resistive load applications. It operates with a 24V DC coil and supports a rated current of 25A at up to 690V AC/DC, making it ideal for motor control and automation systems.
This compact contactor features 2 normally open (NO) and 2 normally closed (NC) contacts with high mechanical and electrical endurance. The built-in auxiliary contacts (1NO + 1NC) enable enhanced control and monitoring capabilities. The screw clamp terminal design ensures secure and easy wiring connections.
The product supports an operating temperature range from -40°C to 60°C and can operate at rates up to 3600 cycles per hour, providing dependable performance in a variety of industrial environments. Its slim 45mm width and DIN rail mounting compatibility allows for efficient panel space usage.
Schneider Electric has built this contactor with compliance to multiple international standards including IEC 60947-4-1, UL, CSA, CCC, EAC, and Marine certifications. It is also Green Premium compliant, meeting RoHS and REACh environmental regulations, supporting sustainable industrial operations.
Compact 4-pole design with 2 NO and 2 NC contacts. 24V DC coil voltage with transient suppressor module. Rated for 25A resistive load at 690V AC/DC. Built-in 1 NO + 1 NC auxiliary contacts (NC mirror certified). Screw clamp terminals for reliable connections.
Supports operating temperatures from -40°C to 60°C. DIN rail mounting or screw fixing options. Multi-standard certifications ensuring safety and quality. Green Premium product supporting eco-friendly industrial use.
This contactor is widely used in industrial automation, manufacturing equipment, motor starters, and electrical control panels. Schneider Electric’s TeSys D series provides a robust solution for critical control applications requiring long operational life and reliability.
Explore EnvMart’s comprehensive range of Contactors and control gear to find the perfect fit for your electrical automation needs. Schneider Electric products in EnvMart deliver trusted performance and support for your industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D128BD contactor has a rated current of 25A and can operate at voltages up to 690V AC/DC.
This model operates with a coil voltage of 24V DC.
It features a 4-pole configuration with 2 normally open (NO) and 2 normally closed (NC) contacts, along with 1 NO and 1 NC auxiliary contact.
The operating temperature range for this contactor is from -40°C to 60°C.
It is equipped with screw clamp terminals for secure electrical connections.
The dimensions of the Schneider Electric LC1D128BD are 85mm in length, 45mm in width, and 99mm in depth.
This contactor is certified to IEC, UL, CSA, CCC, EAC, and Marine standards, ensuring compliance with safety and quality requirements.
It is designed for DIN rail mounting, allowing for efficient installation in control panels.
This contactor is widely used in industrial automation, motor starters, and electrical control panels.
It has an operational reliability of up to 3600 cycles per hour, making it suitable for demanding applications.
Yes, it is specifically designed for resistive load applications.
The contactor is designed for disassembly, supporting sustainable practices in industrial operations.
