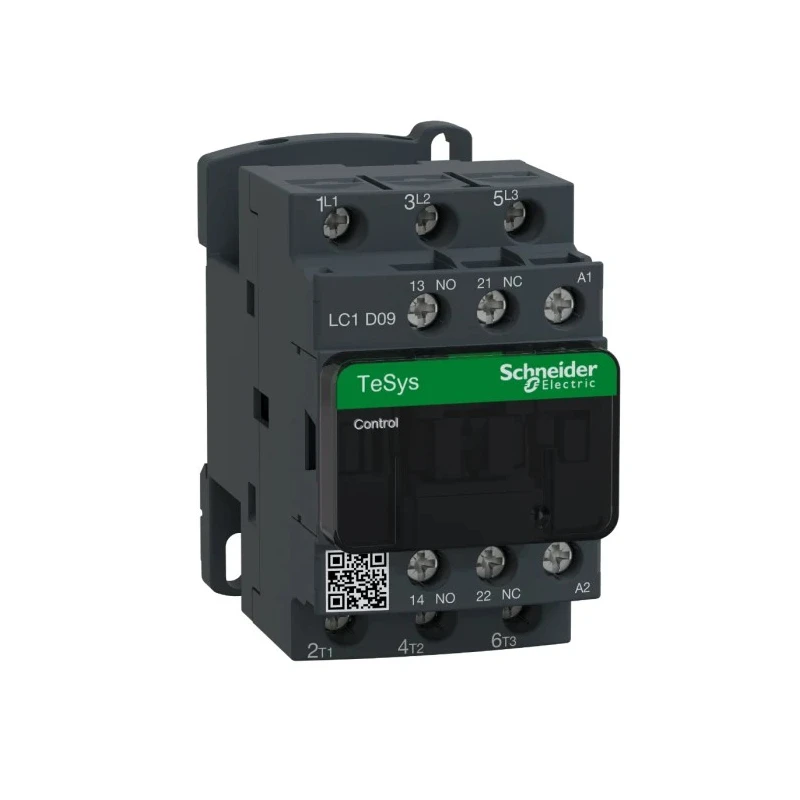

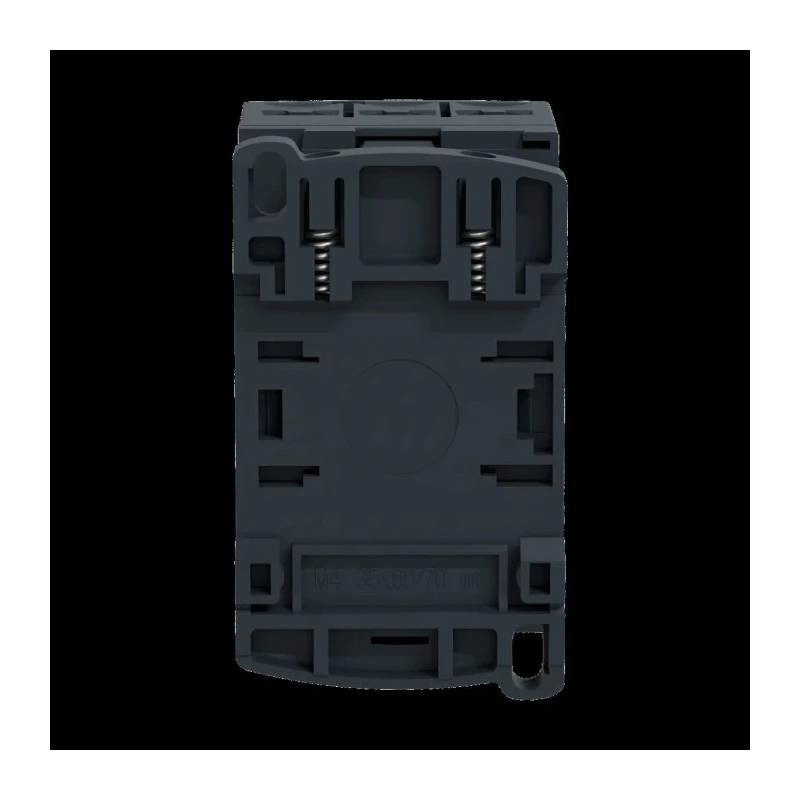

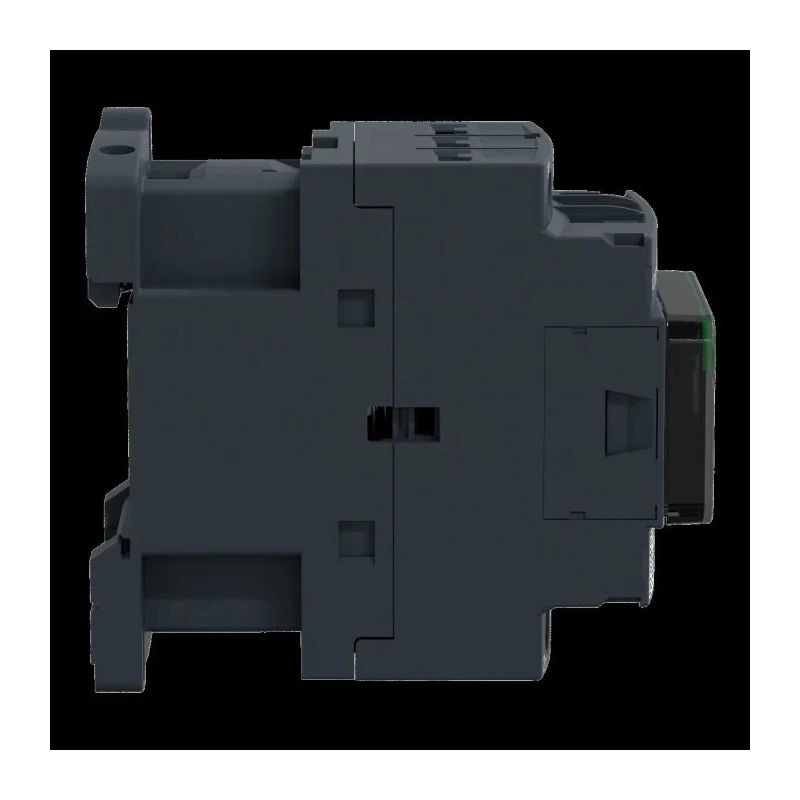

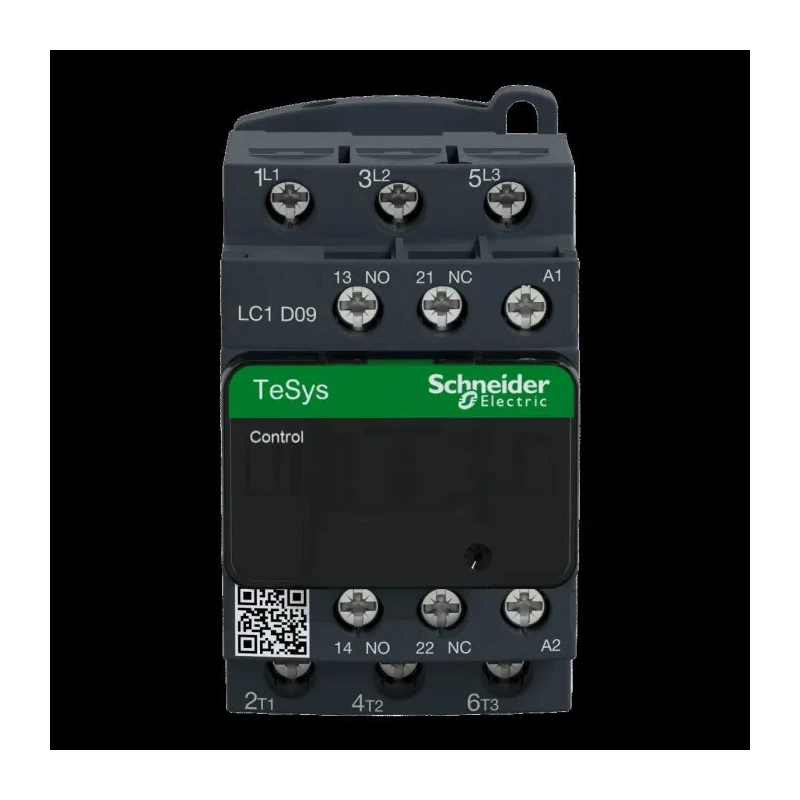

Schneider Electric LC1D Contactor 3-Pole 9A 2.2kW with 440V AC Coil and 24V Control Circuit LC1D09R7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09R7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 440V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 200A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a rated contact current of 9 amps suitable for moderate load demands.
- Power rating of 2.2 kW ensures compatibility with small motors and heating loads.
- Includes 3 normally open (NO) main contacts and 2 auxiliary contacts configured as 1 NO and 1 NC.
- Operational temperature range from -40°C to 60°C supports diverse industrial environments.
- Designed to meet IEC 61095 standards for reliable and safe operation.
- Equipped with screw-type terminals for secure wiring connections.
- Classified under utilisation categories AC-1 for resistive loads and AC-3 for squirrel cage motors.
- Manufactured in France with a focus on sustainability and designed for easy disassembly.
Product Description
Schneider Electric LC1D09R7 Contactor is a high-quality 3-pole contactor with a coil voltage of 440V AC and control circuit voltage of 24V, designed for motor control and resistive load applications. It features a contact current rating of 9A and a power rating of 2.2 kW, suitable for controlling motors and heating loads up to this capacity. This DIN rail-mounted contactor measures 77mm in length, 45mm in width, and 86mm in depth, offering a compact footprint for electrical panels.
The product offers excellent durability and reliability, complying with IEC 61095 standards to ensure safe operation in industrial environments. It includes 3 normally open main contacts and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, providing flexible control and signaling options. With a control circuit voltage of 24V, it integrates easily with automation systems.
Operating temperature range from -40°C to 60°C allows use in a wide variety of conditions. The screw terminal connections facilitate secure and straightforward wiring, supporting efficient installation and maintenance. This contactor is classified for utilisation categories AC-1 and AC-3, making it ideal for applications involving resistive loads and squirrel cage motors such as pumps, compressors, conveyors, and air conditioning units.
The LC1D09R7 is part of Schneider Electric’s LC1D series, known for long mechanical and electrical life, ensuring reduced downtime in industrial, construction, HVAC, manufacturing, and water treatment sectors. The product is manufactured in France, emphasizing sustainability with design features for easy disassembly and reuse.
Rated coil voltage: 440V AC. 3-pole configuration with 9A contact current rating. Power rating of 2.2 kW at 690V AC/DC. Auxiliary contacts consisting of 1 NO and 1 NC type. Designed for motor control and resistive load applications.
Compact DIN rail mount installation. Meets IEC 61095 compliance standards. Durable under temperatures from -40°C to 60°C. Supports control voltage of 24V for coil circuit.
Schneider Electric LC1D09R7 is an ideal choice for industrial automation and control systems requiring reliable contactor performance with sustainable design principles. Browse the Automation & Control Gear category on EnvMart for a wide selection of Schneider Electric control products and accessories.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D09R7 contactor has a contact current rating of 9A.
It has a power rating of 2.2 kW, making it suitable for small motors and heating loads.
This model features a coil voltage of 440V AC.
The contactor measures 77mm in length, 45mm in width, and 86mm in depth.
It is designed for DIN rail mounting, which allows for easy installation in electrical panels.
The operational temperature range is from -40°C to 60°C, allowing for use in diverse industrial environments.
This contactor includes 3 normally open (NO) main contacts.
It has 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The LC1D09R7 complies with IEC 61095 standards, ensuring reliable and safe operation.
It is suitable for motor control and resistive load applications, including pumps, compressors, and conveyors.
It is equipped with screw-type terminals for secure wiring connections.
This contactor is classified under utilization categories AC-1 for resistive loads and AC-3 for squirrel cage motors.
