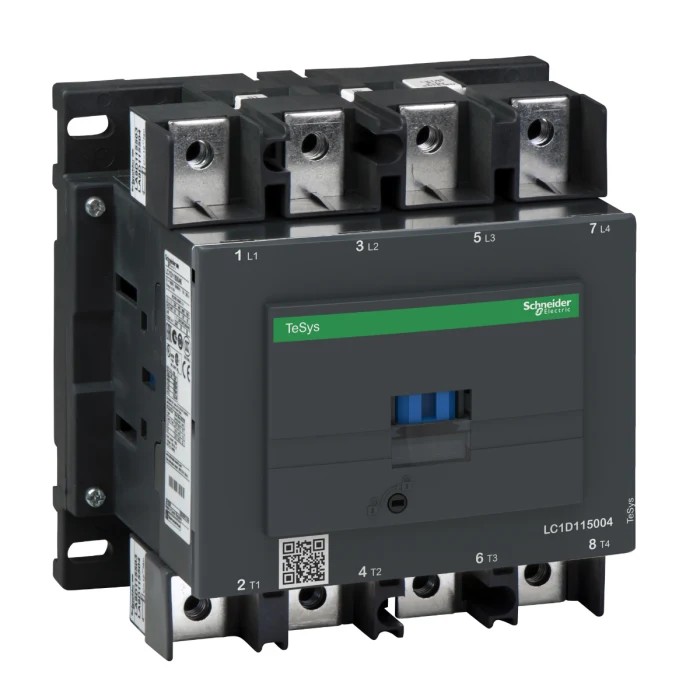

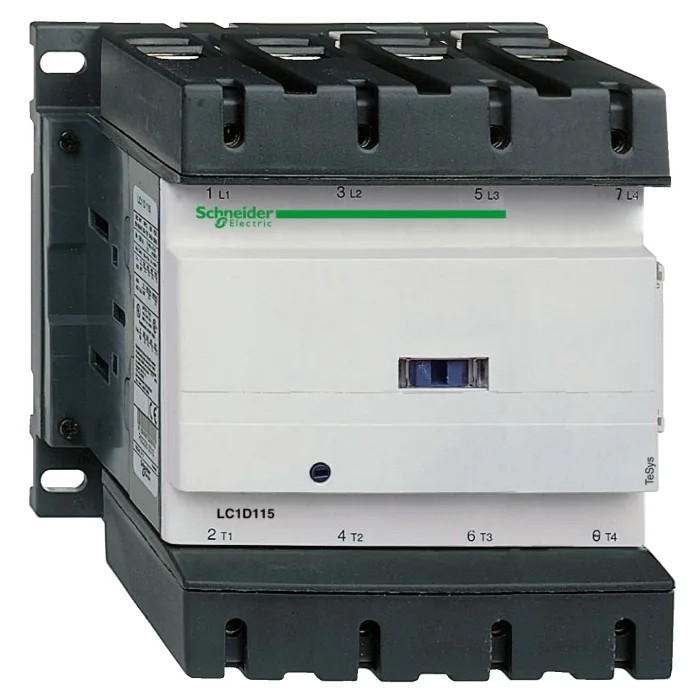

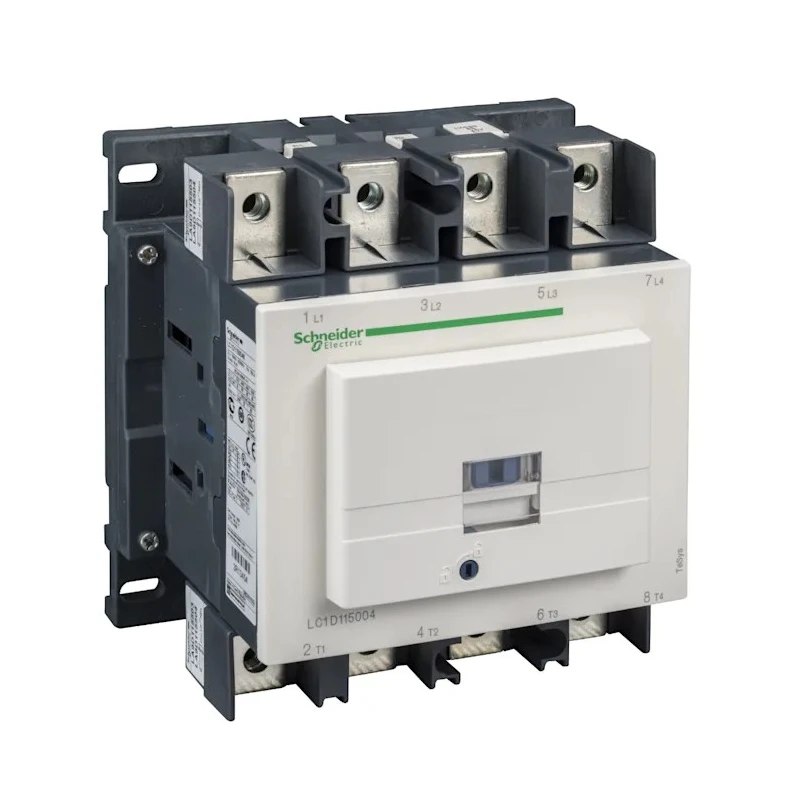

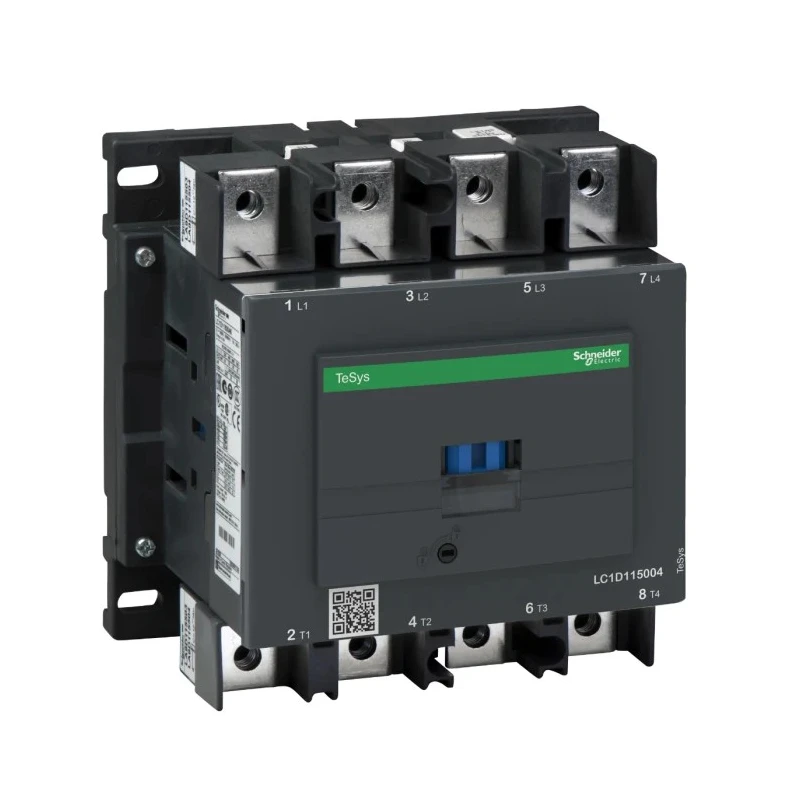

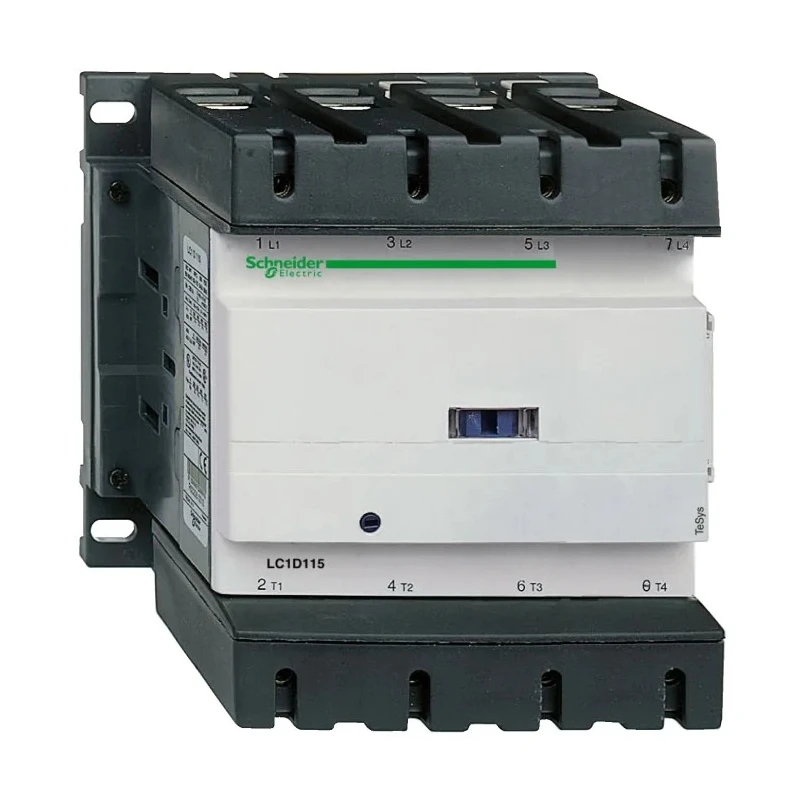

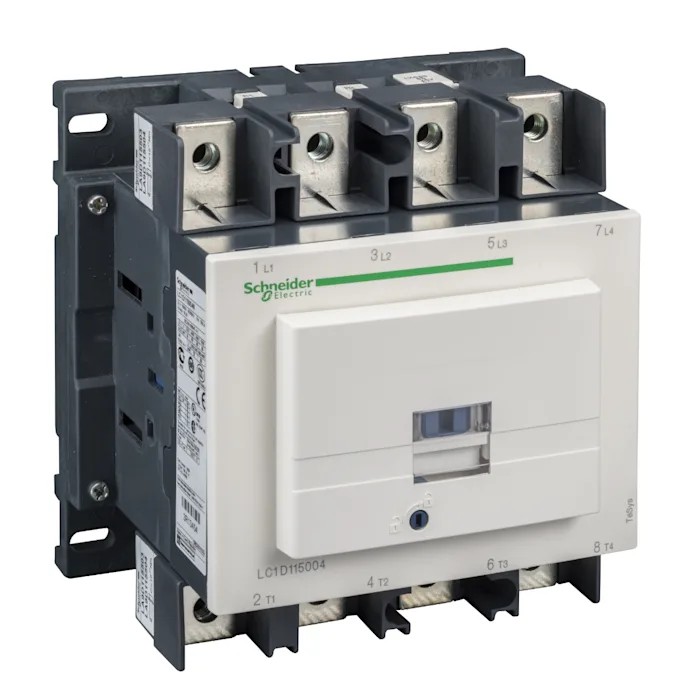

Schneider Electric LC1D Contactor, 24V DC Coil, 4-Pole, 115 A Contact Current, 1kV AC Contact Voltage LC1D1150046BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1150046BD |
| Depth | 115mm |
| Width | 155mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 4 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Contact Current | 115A |
| Auxiliary Contact Configuration | 4 NO |
| Operational Current Ie | 200A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 4-pole configuration with 4 normally open (NO) contacts.
- Rated for 115 A contact current and 1 kV AC contact voltage.
- Equipped with an IP20 finger-safe terminal design with international terminal markings.
- Suitable for DIN rail panel mounting with screw or DIN rail installation options.
- Operational temperature range from -40°C to 70°C ensures reliability in diverse environments.
- Includes a bidirectional peak limiting diode suppressor to protect the coil.
- Controls motor starters and resistive loads efficiently with high shock and vibration resistance.
- Flexible control circuits support a wide range of industrial automation applications.
Product Description
Schneider Electric LC1D1150046BD Contactor features a 24V DC coil and a robust 4-pole, 115 A contact design with a contact voltage rating of 1 kV AC. This contactor is engineered for industrial and commercial motor control as well as resistive load applications. It offers excellent reliability and quality, designed to integrate seamlessly into automation control systems.
The device supports quick and simple setup, contributing to efficient motor starter assemblies. It features IP20 finger-safe terminals that provide secure connections with both North American and international terminal markings. Installation flexibility is ensured with options for both DIN rail and screw panel mounting.
Designed to operate in harsh industrial conditions, the contactor withstands a temperature range from -40°C up to 70°C. The coil includes a bidirectional peak limiting diode suppressor, offering enhanced protection against voltage spikes and extending coil life.
This model is suitable for controlling motors with AC-3 utilization category characteristics, where the break occurs while the motor is running, as well as AC-1 category resistive loads like heaters and distribution systems. The TeSys D contactors provide a double breaking of poles via linear translation movement, improving contact reliability and longevity.
Additional accessories such as auxiliary contact blocks, dust-tight blocks, pneumatic delay blocks, surge suppressors, and electronic timers are compatible with this contactor to meet advanced control needs.
4-pole contact design with 4 NO contacts. Coil voltage: 24V DC with wide control voltage band and low consumption. High operational current rating of 200 A for enhanced capacity. Screw connections with IP20 finger-safe terminals and international markings.
Industrial-grade durability with resistance to shock and vibration. Temperature operating range from -40°C to 70°C for diverse environments. Mountable on DIN rail or with screws for installation flexibility. Double break pole contactor mechanism for superior electrical performance.
This Schneider Electric contactor is ideal for uses in industrial automation, HVAC systems, manufacturing, water treatment, and other commercial electrical control applications. Browse more Contactors and automation equipment on EnvMart to find components that meet your system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 115 A.
It operates with a coil voltage of 24V DC.
The maximum contact voltage is rated at 1 kV AC.
The operational temperature range is from -40°C to 70°C.
This model features a 4-pole configuration with 4 normally open (NO) contacts.
It is suitable for motor control and resistive load applications.
It can be mounted on DIN rail or with screws for installation flexibility.
It is equipped with IP20 finger-safe terminals with both North American and international terminal markings.
The depth is 115 mm and the width is 155 mm.
The operational current rating is 200 A.
Yes, it includes a bidirectional peak limiting diode suppressor to protect the coil against voltage spikes.
It is suitable for industrial automation, HVAC systems, manufacturing, and water treatment applications.
