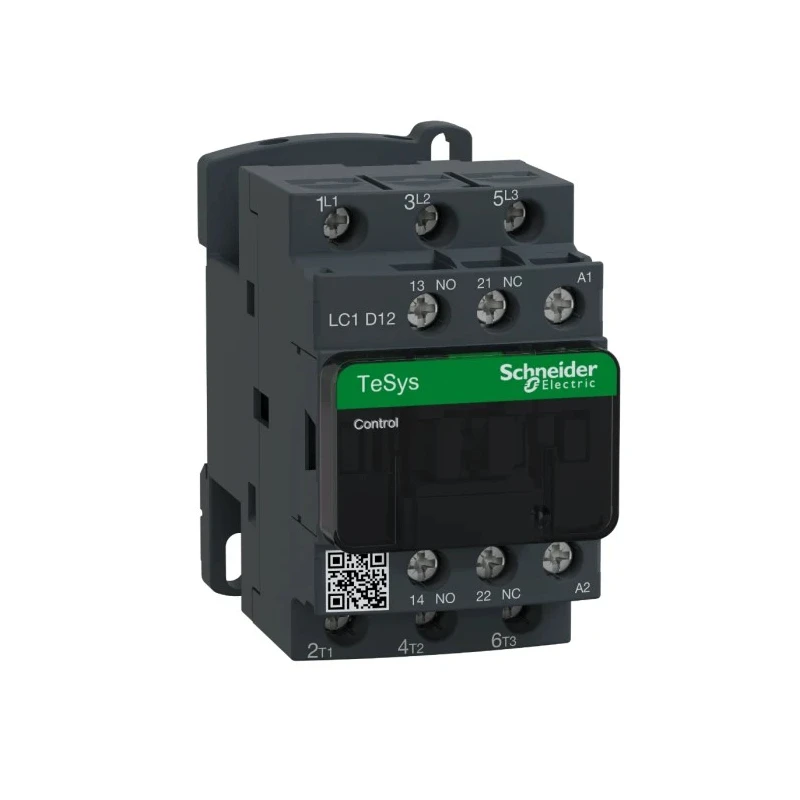

Schneider Electric Motor Control Contactor 36V AC Coil, 3-Pole, 12A, 30 kW, 3 NO, 690V AC LC1D12C7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D12C7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac |
| Coil Voltage | 36V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 36V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 36V AC coil suitable for various industrial applications.
- Designed with 3 poles and a normal state configuration of 3 NO contacts.
- Rated for a contact voltage of 690V AC and a contact current of 12A.
- Power rating up to 30 kW suitable for motor control tasks.
- Mountable on DIN rails or panels with screw connections for easy installation.
- Includes built-in auxiliary contacts with 1 NO and 1 NC.
- Features IP20 finger-safe screw terminals with dual international terminal markings.
- Suitable for industrial, HVAC, manufacturing, and automation control environments.
Product Description
Schneider Electric LC1D12C7 motor control contactor designed for efficient switching in motor control and resistive load applications. This 3-pole contactor operates with a coil voltage of 36V AC and supports a maximum operational current of 12A, making it ideal for industrial automation, manufacturing processes, HVAC systems, and commercial electrical setups.
The contactor features a normal state configuration of 3 NO (normally open) contacts with a contact voltage rating of 690V AC, and a power rating rated up to 30 kW. It is configured for control of squirrel cage motors and other resistive loads, adhering to AC-1 and AC-3 utilisation categories, ensuring reliable operation in heavy-duty switching cycles.
The device supports flexible mounting options including screw panel mount or DIN rail, facilitating straightforward installation into existing control panels. Screw connections come with IP20 finger-safe terminals featuring both North American and International markings to ensure safety and compatibility. Built-in auxiliary contacts arranged as 1 NO and 1 NC offer enhanced switching capabilities, allowing integration with auxiliary control circuits.
The LC1D12C7 contactor complies with the EN 60947-4-1 standard, confirming its suitability for industrial applications and conformity to international safety and performance standards. Operating temperature ranges from -5°C to 60°C, allowing use in varied environmental conditions.
Additional features include a bidirectional peak limiting diode suppressor to protect the coil and easy accessory installation. The design supports sustainable use, being engineered for disassembly under the Better World initiative by Schneider Electric.
Equipped with a 36V AC coil suitable for various industrial applications. Designed with 3 poles and a normal state configuration of 3 NO contacts. Rated for a contact voltage of 690V AC and a contact current of 12A. Power rating up to 30 kW suitable for motor control tasks.
Mountable on DIN rails or panels with screw connections for easy installation. Includes built-in auxiliary contacts with 1 NO and 1 NC. Features IP20 finger-safe screw terminals with dual international terminal markings.
Suitable for industrial, HVAC, manufacturing, and automation control environments. Compliant with EN 60947-4-1 for safety and quality assurance. Works effectively within the operating temperature range of -5°C to 60°C.
This Schneider Electric LC1D12C7 contactor is an excellent choice for demanding industrial control applications requiring high reliability and performance. Explore related products in the EnvMart Automation & Control Gear category for comprehensive solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this model is up to 30 kW, making it suitable for motor control tasks.
It operates with a coil voltage of 36V AC.
The contact voltage is rated at 690V AC, and it supports a maximum operational current of 12A.
This model is designed with 3 poles and features a normal state configuration of 3 normally open (NO) contacts.
The dimensions are 77mm in length, 86mm in depth, and 45mm in width.
It can be mounted on DIN rails or panels using screw connections.
The operating temperature range is from -5°C to 60°C.
This contactor includes built-in auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with the EN 60947-4-1 standard, ensuring suitability for industrial applications.
It is suitable for motor control and resistive loads, adhering to AC-1 and AC-3 utilization categories.
It features IP20 finger-safe screw terminals with dual international terminal markings for safety and compatibility.
The country of origin for this contactor is India.
