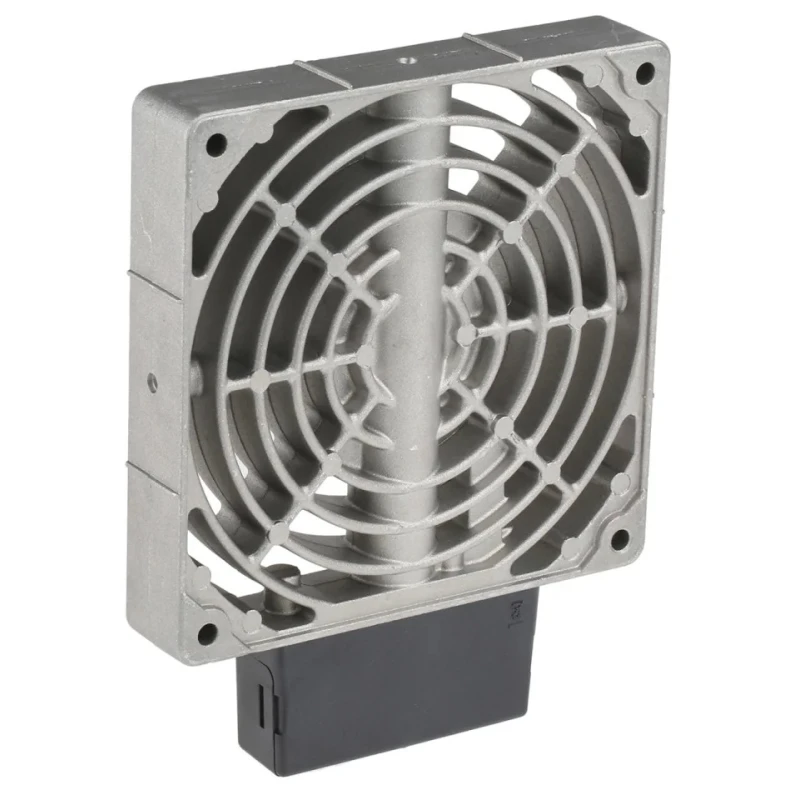

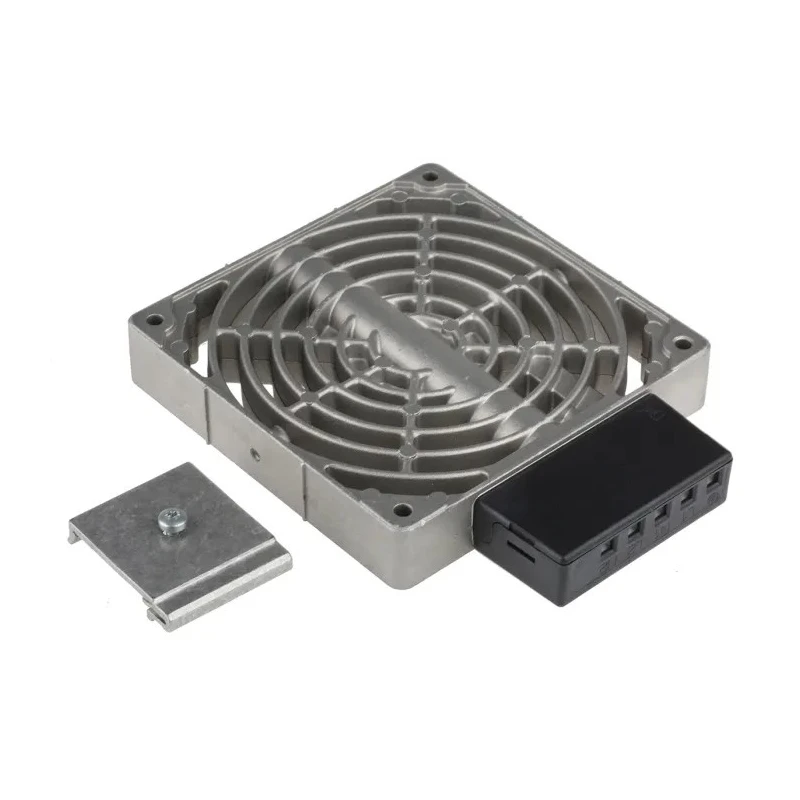

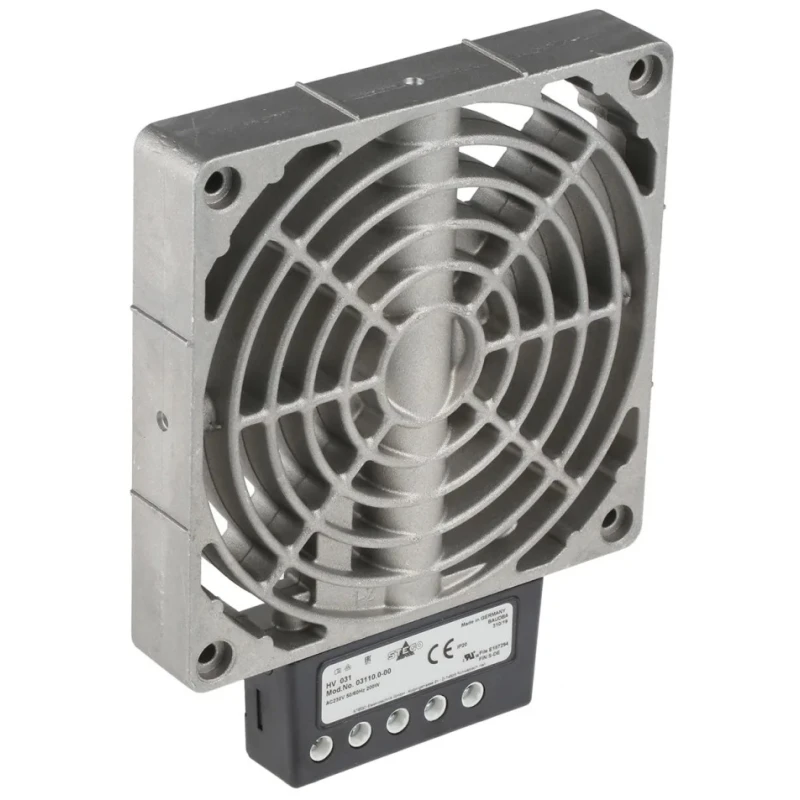

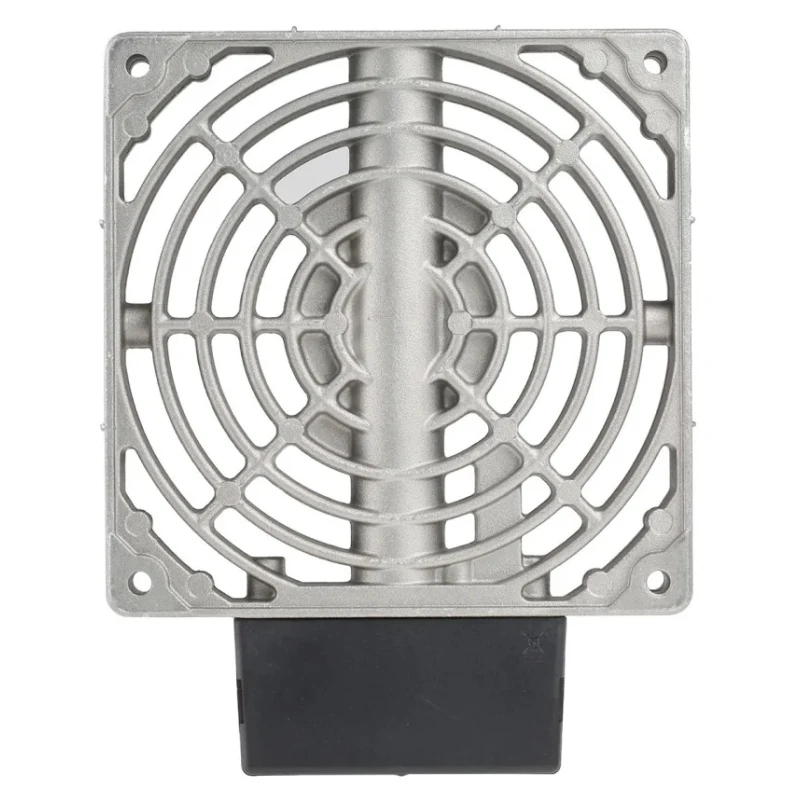

STEGO Enclosure Heater, 230V AC, 200W Output Power, DIN Rail Mount, IP20 Protection 03110.0-00
Specifications
| Country of Origin | India |
|---|---|
| Brand | STEGO |
| Mounting | clip for 35mm DIN rail, EN 60 715 |
| Air Flow | 108m³/h |
| Connection | 3-pole terminal AWG 14 max. (2.5mm2), torque 0.8Nm max |
| Connection Type | 3-Pole Terminal |
| Depth | 151mm |
| IP Rating | IP20 |
| Width | 119mm |
| Output Power | 200W |
| Mount Type | DIN Rail |
| Input power | 200W |
| Heating element | high performance cartridge |
| Maximum Operating Temperature | 158°C |
| Minimum Operating Temperature | -49°C |
| Supply Voltage | 230V ac |
| Overheat Protection | built-in temperature limiter |
| Mounting Position | horizontal |
| Standards/Approvals | RoHS, UL File No. E187294, CE, VDE (230V only) |
| Operating / Storage temperature | -49 to +158°F (-45 to +70°C) |
| Heater body | die-cast aluminum, glass bead finish |
| Connection housing | plastic, UL 94V-0, black |
| Protection class / Protection type | I (grounded) / IP20 |
| Axial fan, ball bearing service life | 50,000h at 77°F (25°C) |
| Axial fan connection | 2-pole terminal AWG 14 max. (2.5mm2), terminals L2/N2 |
Key Features
- The heater features a die-cast aluminum body with glass bead finish ensuring durability.
- It includes a built-in temperature limiter for overheat protection.
- Mounting is via a clip for 35mm DIN rail to support industrial installation standards.
- Connection is a 3-pole terminal compatible with AWG 14 max (2.5mm²) wiring.
- The unit provides IP20 protection class with insulated PTC heating technology.
- Operating temperature ranges from -49°C to 158°C allowing use in harsh conditions.
- Axial fan with ball bearing for long service life is compatible but must be purchased separately.
- Compact dimensions measure 119mm width and 151mm depth for efficient enclosure fitment.
Product Description
The STEGO 03110.0-00 Enclosure Heater is engineered to provide reliable interior heating for electrical enclosures, ensuring protection against condensation and temperature fluctuations. Operating at 230V AC with a power output of 200W, this heater is well suited for industrial, manufacturing, automation, and HVAC applications requiring stable enclosure temperatures.
The heater incorporates a high performance cartridge heating element combined with a built-in temperature limiter for overheat protection, enhancing operational safety. The heater body is constructed from die-cast aluminum finished with glass bead blasting for corrosion resistance and robust durability.
Installation is simplified with a clip mount for 35mm DIN rails complying with EN 60 715, allowing horizontal mounting within enclosures. Connection is through a 3-pole terminal rated for AWG 14 wiring (2.5mm²) with a maximum torque of 0.8 Nm, and the connection housing is made from black plastic rated UL 94V-0 for flame resistance.
The enclosure heater is designed for demanding environments with a wide operating temperature range from -49°C up to 158°C. Protection class I (grounded) and an IP20 ingress protection rating ensure suitability in controlled indoor industrial settings.
Axial fans with ball bearing design, offering service life of 50,000 hours at 25°C, are recommended to complement the heater for enhanced air circulation but must be sourced separately (compatible fans: 80mm or 120mm size).
Die-cast aluminum heater body with glass bead finish for durability. Built-in temperature limiter for safe operation. High performance cartridge heating element technology. 3-pole terminal connection AWG 14 max. (2.5mm²) with plastic UL 94V-0 housing.
DIN rail clip mounting for 35mm rails, horizontal orientation. Operating temperature range from -49°C to 158°C. Protection class I grounded and IP20 rated enclosure protection. Compact dimensions of 119mm width by 151mm depth for easy integration.
Supports axial fan installation for airflow enhancement, fans sold separately. Ideal for use in industrial automation, electrical enclosures, manufacturing, and HVAC systems to maintain controlled internal temperatures.
This enclosure heater is part of the STEGO product line known for industrial reliability and high quality. EnvMart offers a wide selection of Enclosure Heaters and related thermal management solutions for electronics and electrical systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The heater has an output power of 200W, making it suitable for maintaining stable temperatures within electrical enclosures.
It operates within a temperature range of -49°C to 158°C, allowing it to function effectively in harsh environments.
This model is mounted via a clip for 35mm DIN rail, complying with EN 60 715 standards, and is designed for horizontal installation.
It features a 3-pole terminal connection rated for AWG 14 wiring (2.5mm²) with a maximum torque of 0.8 Nm.
The heater body is made from die-cast aluminum with a glass bead finish, ensuring durability and corrosion resistance.
Yes, it includes a built-in temperature limiter for overheat protection, enhancing operational safety during use.
It has an IP20 ingress protection rating, making it suitable for indoor industrial settings where it is protected from solid objects larger than 12mm.
The heater provides an air flow of 108m³/h, which aids in maintaining the internal temperature of enclosures.
It utilizes a high performance cartridge heating element, which contributes to its effective heating capabilities.
Yes, an axial fan with a ball bearing design can be connected to enhance air circulation, but it must be purchased separately.
This unit is certified with RoHS, UL (File No. E187294), CE, and VDE (230V only), ensuring compliance with various safety and environmental standards.
The compact dimensions of this model are 119mm in width and 151mm in depth, facilitating easy integration into enclosures.
