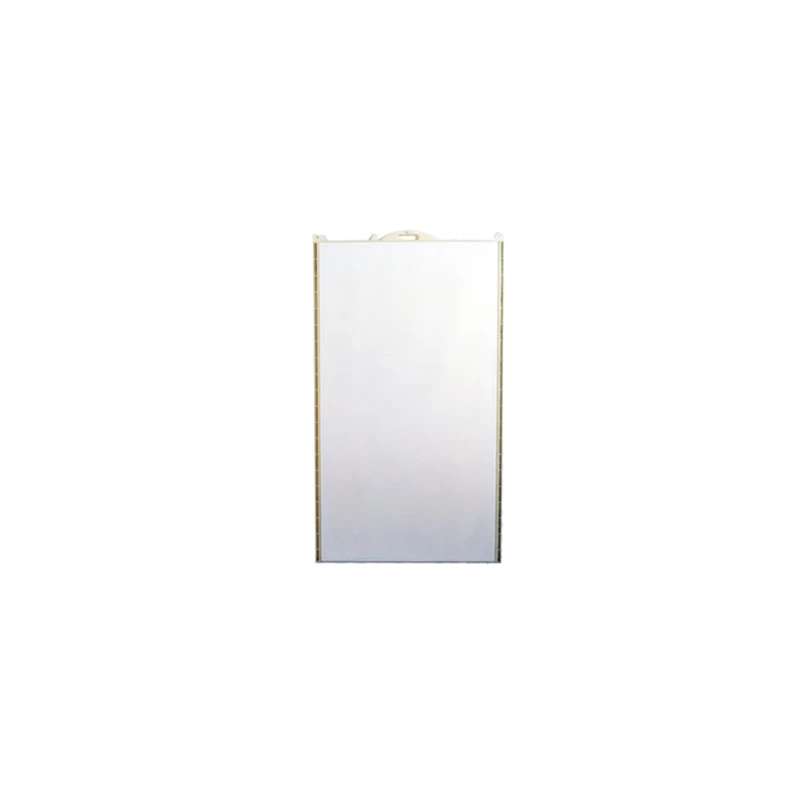

Flat Sheet Membrane- FSMBR 08 (Standard Type)
Specifications
| Operating Temperature | 5 -40 degree c |
|---|---|
| pH Range | 06-09 pH |
| Model | FSMBR 08 |
| Weight | 1.3 |
| Membrane Material | PVDF |
| PH | 45629 |
| MLSS | 7000-l8000 PPM |
| DO Concentration | Greater Than 1 PPM |
| Operating Trans. Pressure | 50-200 Mbar |
| Plate Material | ABS |
| Membrane effective area (m 2 ) | 0.8 |
| Membrane pore size(Micro meter) | 0.1 |
| Output turbidity(NTU) | Less Than 1.0 |
| Output SS(mg/L) | Less Than -5 |
| Chemical cleaning | 5000mg/l NaClO |
| Design Flux LMH | 15-34 LMH |
| Operating mode(permeate/relaxation) | 08-02 Min |
| Max press drop | 350 Mbar |
| Size(L×W×T)(mm) | 1020 x 510 x 14 |
| Permeate Flux[l/( pc·d)] | 320-550 |
Key Features
- Permanently hydrophilic
- High MLSS concentration
- High Flux & low fouling
Product Description
Flat Sheet Membrane- FSMBR 08 (Standard Type), flat sheet membrane is made of PVDF, which has better chemical stability, fouling resistance, and mechanical strength. With advanced membrane fabrication technology, which controls the membrane pore size around 0.1 um to get a higher water flux and water quality. The mortise and tenon structure is used in the support plate to get a more stable spacing without side panels. The support plate can be installed from the top and installed from one side without the limits of the construction site conditions.FMBR PVDF Series is a high-flux Flat Sheet MBR membrane delivering excellent permeability, fouling resistance, stability, and elimination effectiveness. Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage. FMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrial and domestic wastewater.
- High chlorine resistance
