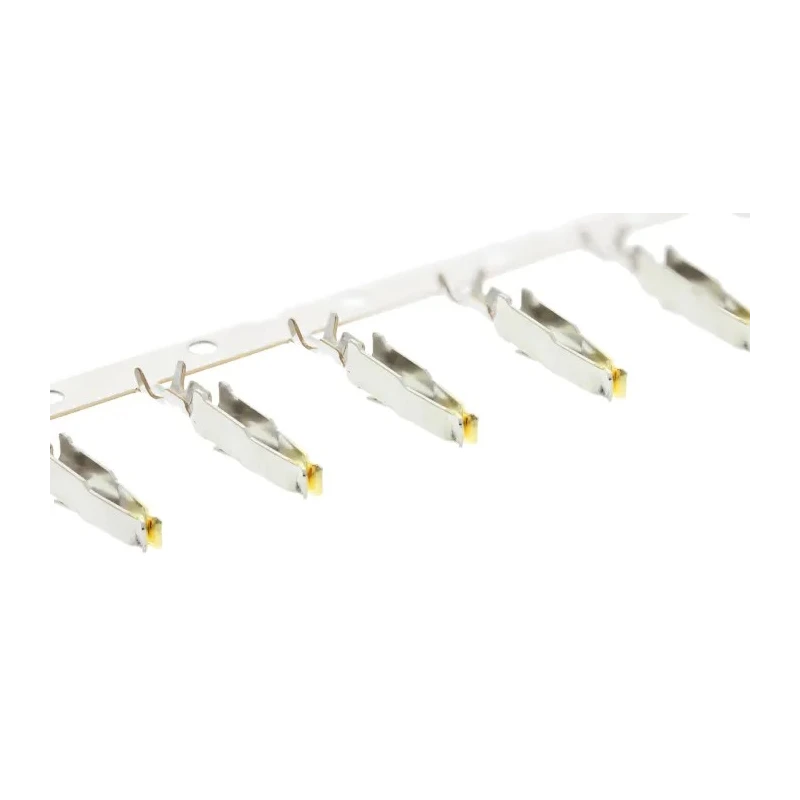

HARTING Backplane Connector Contact Straight Female Gold over Nickel Copper Alloy 6A 09060006481
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Wire size | 0.14, 0.56mm² |
| For Use With | DIN41612 Type D Female Connector, DIN41612 Type F Female Connector, DIN41612 Type E Female Connector |
| Contact Plating | Gold over Nickel |
| Maximum Contact Resistance | 20mΩ |
Key Features
- The contact is made of copper alloy ensuring durability and conductivity.
- Gold over nickel plating provides corrosion resistance and reliable electrical connection.
- Compatible with DIN41612 Type D, E, and F female connectors.
- Supports wire sizes between 0.14 mm² and 0.56 mm².
- Designed for crimp termination ensuring secure and efficient installation.
- Operates reliably between -55°C and 125°C temperature range.
- Maximum contact resistance is specified at 20 milliohms for consistent performance.
- Manufactured in Germany under high-quality standards.
Product Description
HARTING 09060006481 is a high-quality backplane connector contact designed as a straight female contact with gold over nickel plating on copper alloy material. This contact is engineered to fit DIN41612 Type D, E, and F female connectors, widely used in industrial and electronic applications.
Rated for a current of 6 amperes, it supports wires from 0.14 mm² to 0.56 mm², making it suitable for control cards, power supplies, and electronic circuit backplane systems.
The gold over nickel plating ensures excellent corrosion resistance and reliable electrical conductivity, crucial for long-term performance in harsh industrial environments. The crimp termination type assures a secure mechanical and electrical connection, simplifying installation and maintenance.
Operating in a temperature range from -55°C to 125°C, these contacts perform reliably under varying environmental conditions, catering to diverse industrial, manufacturing, and electrical assembly needs.
The maximum contact resistance of 20 milliohms guarantees minimal voltage drops and stable signal transmission, enhancing the overall efficiency of electrical systems. The contact is made of copper alloy ensuring durability and conductivity.
Gold over nickel plating provides corrosion resistance and reliable electrical connection. Compatible with DIN41612 Type D, E, and F female connectors. Supports wire sizes between 0.14 mm² and 0.56 mm². Designed for crimp termination ensuring secure and efficient installation.
Operates reliably between -55°C and 125°C temperature range. Maximum contact resistance is specified at 20 milliohms for consistent performance. Manufactured in Germany under high-quality standards.
HARTING backplane connector contacts are essential components in electronic manufacturing, automation, and signal processing setups where durable and precise connections are critical. Their robust construction and dependable performance make them suitable for demanding laboratory, industrial, and commercial applications.
Explore more in the Backplane Connector Contacts category to find compatible connectors and accessories designed to enhance your system’s reliability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This backplane connector contact is rated for a maximum current of 6 amperes.
It supports wire sizes ranging from 0.14 mm² to 0.56 mm².
It operates reliably within a temperature range of -55°C to 125°C.
This model is designed for crimp termination, ensuring a secure connection.
It is compatible with DIN41612 Type D, E, and F female connectors.
The maximum contact resistance is specified at 20 milliohms.
The contact is made of copper alloy, providing durability and conductivity.
This backplane connector contact is manufactured in Germany.
It features gold over nickel plating for corrosion resistance and reliable electrical connection.
The orientation of this model is straight.
It belongs to the 09 06 series of backplane connector contacts.
This contact is suitable for use in control cards, power supplies, and electronic circuit backplane systems.
