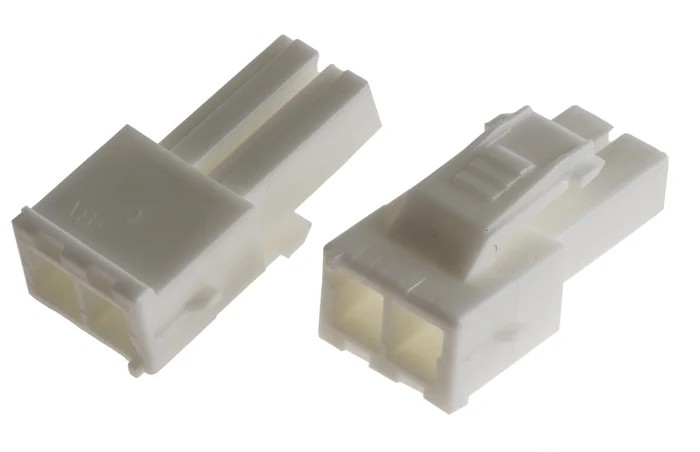

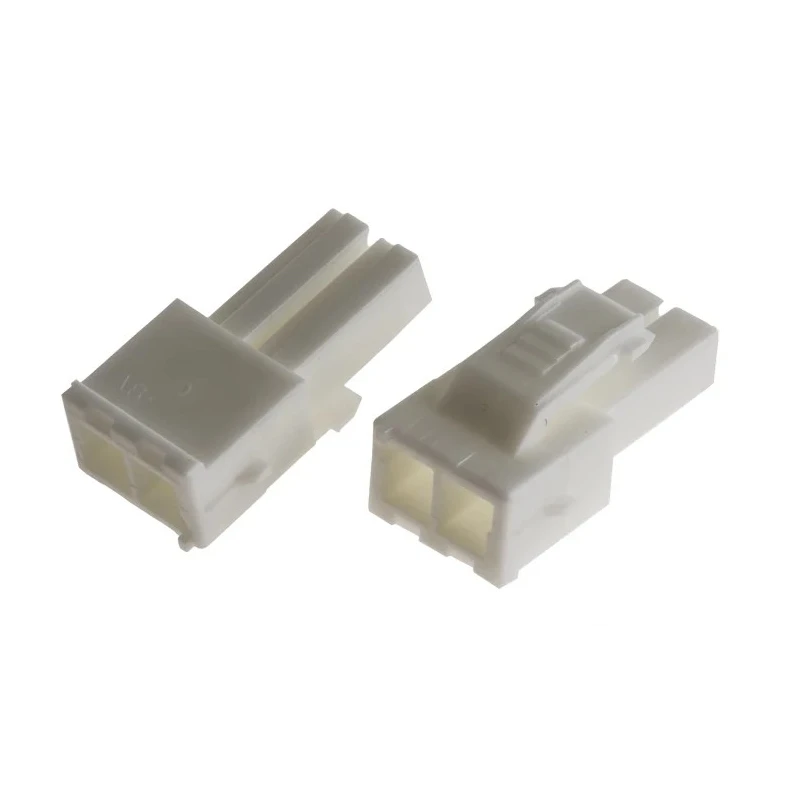

TE Connectivity Power Double Lock Male Connector Housing 3.96 mm Pitch 2 Way 1 Row Straight 177898-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 9.94mm |
| Model | 177898-1 |
| Width | 6.9mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Power Double Lock |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | Centerline Power Double Lock Connector |
| Standards/Approvals | UL 94V-0 (Flame Retardant) |
| Number of Contacts | 2 |
| Connector Gender | Male |
Key Features
- Features a compact design with a 3.96 mm pitch for precise contact spacing.
- Constructed with durable nylon housing material ensuring mechanical strength and insulation.
- Designed with a straight orientation and cable mount type for flexible wiring installations.
- Includes a double lock plate mechanism to prevent partial mating of contacts.
- Compatible with Power Double Lock Connector series for reliable connection performance.
- Housing lance design prevents contact entanglement and enhances contact retention.
- Commonly used in appliances such as refrigerators, air conditioners, washing machines, and vending machines.
- Requires separately purchased crimp contacts suitable for plug or socket housings.
Product Description
TE Connectivity presents the 177898-1 Power Double Lock Male Connector Housing, a premium connector housing designed for power circuit applications requiring reliable and secure connection performance. This connector features a 3.96 mm pitch with 2 contacts arranged in a single row, providing precise and robust connection alignment.
The housing is made from nylon material, offering excellent mechanical strength and electrical insulation properties. Its straight orientation and cable mounting type make it ideal for flexible wiring harness assemblies in various power applications.
Equipped with a double lock plate, this housing effectively prevents partial or incomplete mating of the contacts, ensuring consistent and safe electrical connectivity. The innovative housing lance design further enhances reliability by avoiding entanglement of contacts.
Typical applications for this connector housing include household appliances such as refrigerators, air conditioners, washing machines, gas equipment, photocopiers, and vending machines where power transmission reliability is critical.
Crimp contacts designed for this housing are sold separately, with plug housings compatible with receptacle crimp contacts and socket housings compatible with tab crimp contacts, allowing customized configurations to suit specific wiring requirements.
Compact design with double-lock security for reliable connections. Robust nylon housing material tolerates mechanical and environmental stresses. 3.96 mm pitch suited for precise electronic and electrical applications. Straight orientation facilitates efficient cable routing and assembly.
Prevents contact partial mating with a double lock plate design. Wide industrial use in major home appliances and commercial equipment. Separate crimp contacts available to customize connector assembly. This product is compliant with UL 94V-0 standards, demonstrating high flame resistance suitable for electronic industry safety requirements.
Explore more from TE Connectivity's Power Double Lock range and other wire housings and plugs in the Electronics & Electricals category on EnvMart.
Explore more products in our Power Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm, which allows for precise contact spacing.
This model features a straight orientation, making it suitable for flexible wiring installations.
The housing is constructed from nylon, providing mechanical strength and electrical insulation.
It accommodates 2 contacts arranged in a single row.
The length is 9.94 mm and the width is 6.9 mm.
This model uses a cable mount type for installation.
It is compatible with the Centerline Power Double Lock Connector series.
It complies with UL 94V-0 standards, indicating high flame resistance.
No, crimp contacts are sold separately and are required for use with this housing.
It includes a double lock plate mechanism that prevents partial mating of contacts.
The country of origin for this product is India.
