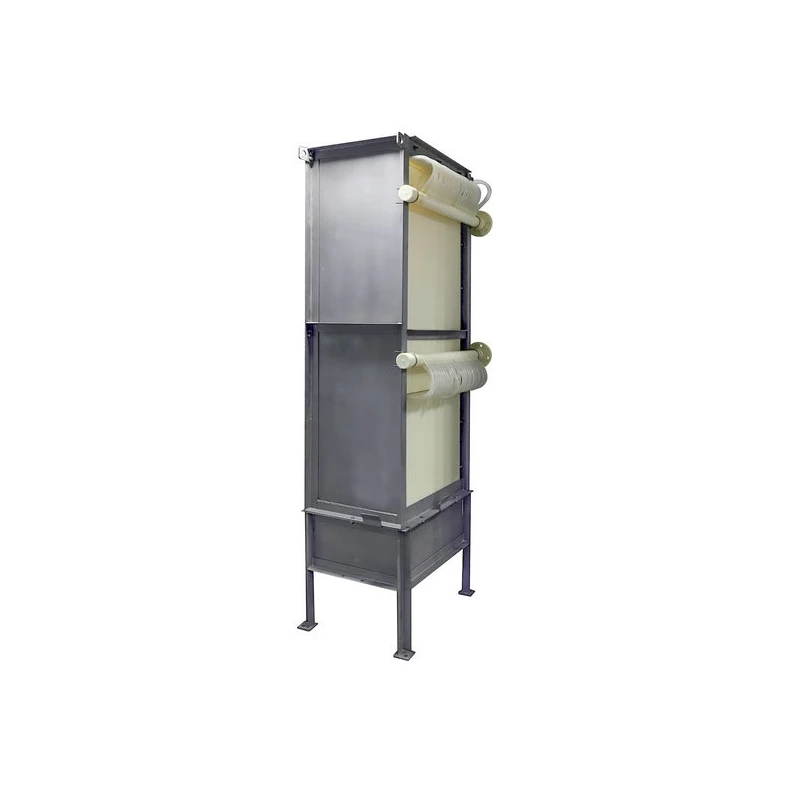

Double Deck Flat Sheet Membrane Total 250 Cassettes FSMBR 05-125-2
Specifications
| Operating Temperature | 5 -40 degree c |
|---|---|
| Length | 1695 mm |
| pH Range | 06-09 pH |
| Model | FSMBR 05-125-2 |
| Width | 600 mm |
| Membrane Material | PVDF |
| Standard Height | 2000 mm |
| Dry Weight | 1 Kg |
| MLSS | 7000-l8000 PPM |
| DO Concentration | Greater Than 1 PPM |
| Operating Trans. Pressure | 50-200 Mbar |
| MOC of Frame | SS-304/SS316 |
| Plate Material | ABS |
| Membrane effective area (m 2 ) | 125 |
| Membrane pore size(Micro meter) | 0.1 |
| Output turbidity(NTU) | Less Than 1.0 |
| Output SS(mg/L) | Less Than -5 |
| Chemical cleaning | 5000mg/l NaClO |
| Design Flux LMH | 15-34 LMH |
| Operating mode(permeate/relaxation) | 08-02 Min |
| Max press drop | 350 Mbar |
| Air Flowrate (l/min) | 1000 |
| No. Of Cassettes in One Deck | 125 |
| Total Cassettes | 250 |
Key Features
- Permanently hydrophilic
- High MLSS concentration
- High Flux & low fouling
Product Description
FSMBR 05 Double Deck Flat Sheet Membrane Total 250 Cassettes (Model No. FSMBR 05-125-2), FMBR PVDF Series is a high-flux Flat Sheet MBR membrane delivering excellent permeability, fouling resistance, stability, and elimination effectiveness. Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage. FMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrial and domestic wastewater.
- High chlorine resistance
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The membrane is made of PVDF (polyvinyl difluoride), while the frame is constructed from SS-304/SS316 and the plate material is ABS.
The operating temperature range for the FSMBR 05-125-2 is between 5 to 40 degrees Celsius.
This model operates effectively within a pH range of 6 to 9.
The maximum operating transmembrane pressure for this unit is 200 mbar.
There are 125 cassettes in one deck of the FSMBR 05-125-2.
The design flux for the FSMBR 05-125-2 ranges from 15 to 34 LMH.
The maximum pressure drop for this membrane system is 350 mbar.
The dry weight of the FSMBR 05-125-2 is 1 kg.
The output turbidity of the treated water is less than 1.0 NTU.
This model can handle a maximum MLSS concentration of 7000 to 8000 PPM.
