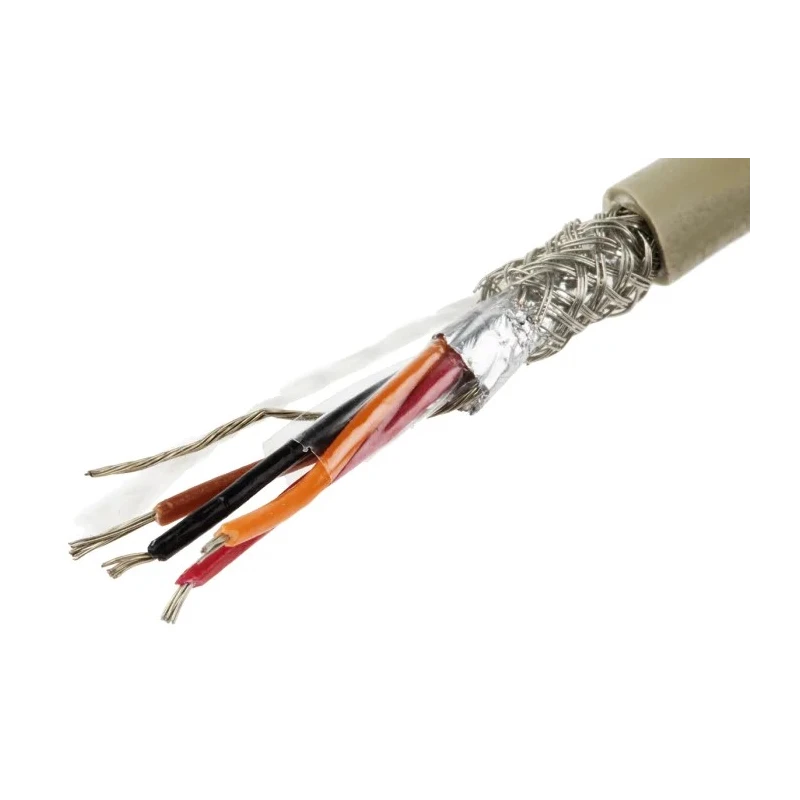

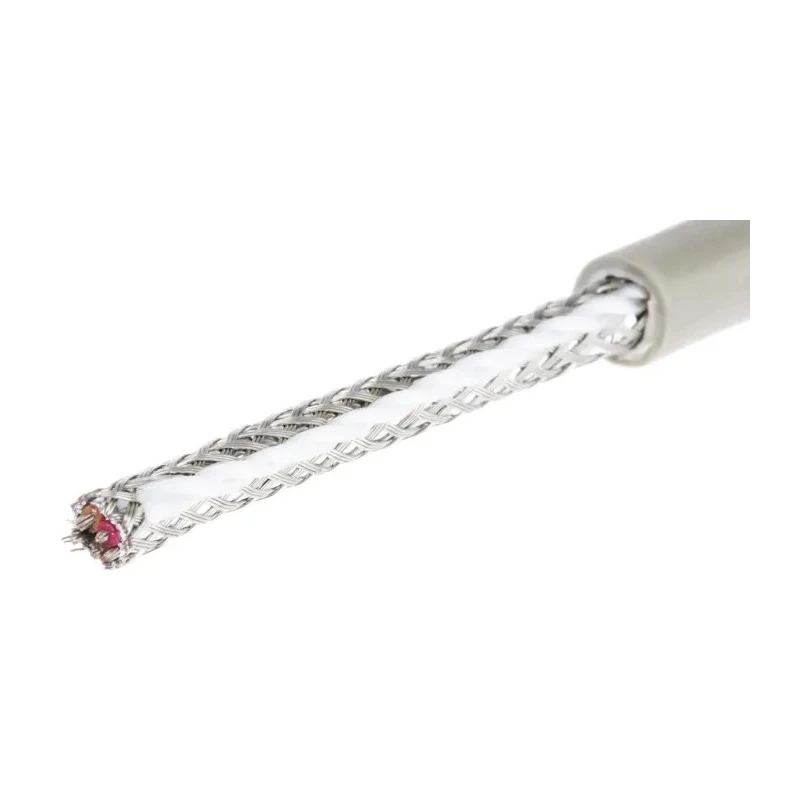

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.81 mm² 50 m Grey Sheath Polyvinyl Chloride B956044 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.81mm² |
| Model | B956044 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 7.26mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.286 inch (7.26 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Conductors | 4, Black, Red, White, Green |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 16/30 |
Key Features
- The cable is rated for 300 V operating voltage and a temperature range from -30°C to +105°C.
- The conductors are tin copper wire strands with 7 strands per core, each strand measuring 0.32 mm in diameter.
- The jacket material is flame retardant polyvinyl chloride providing UV and oil resistance.
- The cable has a nominal diameter of 7.26 mm and jacket thickness of 0.032 inch (0.81 mm).
- It is constructed with a stranded conductor design ensuring flexibility for industrial and automation applications.
- Available shielding options include unshielded, foil, braid, and Supra-Shield for EMI resistance.
- Colour coded cores include black, red, white, and green for easy identification.
- Approved and certified to CE, CSA, and UL standards, meeting IEC EN 60332-1 and related fire safety tests.
Product Description
Alpha Wire B956044 GE321 Pro-Tekt Series data cable is a high performance 4-core electrical cable with a 0.81 mm² stranded conductor cross section, sheathed in durable grey polyvinyl chloride (PVC). Designed for demanding European industrial and automation markets, it offers excellent flexibility and mechanical strength for use in confined spaces.
The cable is rated at 300 V with a wide temperature operating range from -30°C minimum to 105°C maximum, making it suitable for harsh environments inclusive of UV and oil exposure. Each of the four conductors consists of 7 strands of 0.32 mm diameter tin copper wire to ensure stable electrical performance and ease of connection.
Its PVC jacket is flame retardant and abrasion resistant, and the overall cable diameter is nominally 7.26 mm with a jacket thickness of 0.032 inch (0.81 mm). Alpha Wire offers multiple shielding configurations for the Pro-Tekt series, from unshielded cables for low-noise, controlled environments to Supra-Shield foil and braid combinations that deliver superior electromagnetic interference (EMI) protection.
Colour-coded conductors (black, red, white, green) facilitate quick identification and wiring. The cable meets CE, CSA Certified, UL, IEC EN 60332-1, and related international standards, confirming its fire retardant properties and adherence to safety regulations.
High flexibility with stranded tin copper conductors. Wide operating temperature range of -30°C to +105°C. Flame retardant and UV resistant PVC sheath for industrial longevity. Multiple shielding options for electromagnetic compatibility.
Robust cable design suitable for automation, aerospace, medical, petrochemical and commercial electronics. Colour-coded cores streamline installation and maintenance. Approved to international safety and performance standards including CE, CSA, UL, IEC EN 60332-1.
This Data Cable is ideal for industrial automation, power equipment, and any application that combines multiple signal transmissions within a flexible and durable single cable assembly. It ensures reliable connectivity across a wide range of demanding electrical and electronic systems.
Explore more high-quality wires and cables in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300 V operating voltage, making it suitable for various industrial applications.
The cable operates within a temperature range of -30°C to +105°C, allowing it to perform in harsh environments.
It features 4 cores, which are color-coded black, red, white, and green for easy identification.
The nominal diameter of this cable is 7.26 mm, providing flexibility and ease of installation in confined spaces.
The conductors are made of tin copper wire strands, and the jacket is made from flame retardant polyvinyl chloride (PVC).
This model offers various shielding options, including unshielded, foil, braid, and Supra-Shield configurations for EMI resistance.
The jacket thickness is 0.032 inch (0.81 mm), contributing to its durability and protection against environmental factors.
Yes, it is approved and certified to CE, CSA, and UL standards, meeting IEC EN 60332-1 and related fire safety tests.
Each conductor consists of 7 strands of 0.32 mm diameter wire, ensuring flexibility and stable electrical performance.
This cable is 50 meters long, making it suitable for various installation requirements in industrial settings.
This model is designed for industrial automation, power equipment, and applications requiring multiple signal transmissions within a single cable assembly.
The insulation thickness is 0.016 inch (0.41 mm), providing additional protection for the conductors.
