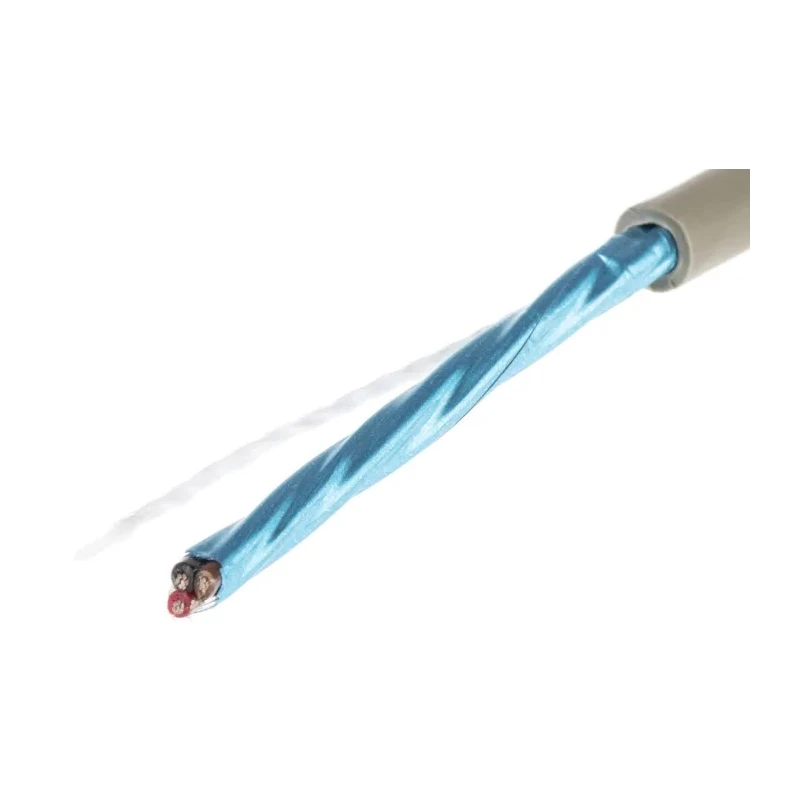

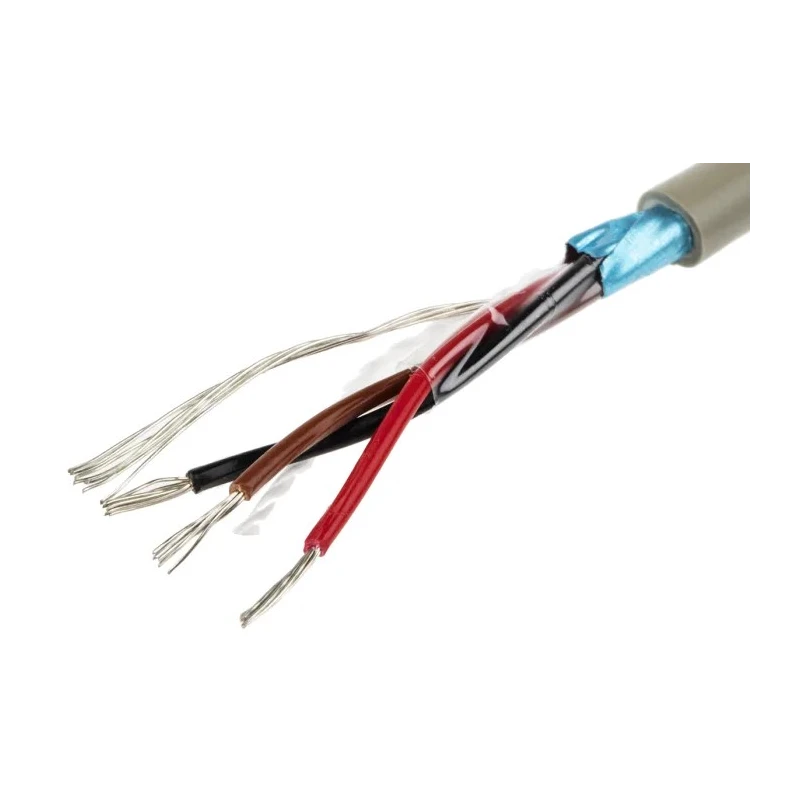

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953032 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B953032 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.22mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.166 inch (4.22 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
Key Features
- The cable has stranded tin copper wire conductors for increased flexibility.
- It operates at a voltage rating of 300V with a temperature range from -30°C to 105°C.
- The cable is flame retardant with a durable PVC jacket that is UV and oil resistant.
- Designed for industrial, automation, and commercial electronic applications requiring reliable data transmission.
- Complies with CE, CSA Certified, and UL standards for quality and safety.
- The cable provides good abrasion resistance and has a foil shielded construction for electromagnetic interference protection.
Product Description
Alpha Wire B953032 GE321 Pro-Tekt Series Data Cable is a high-performance, flame retardant, 3-core cable featuring 0.23 mm² stranded tin copper conductors, encased in a grey polyvinyl chloride (PVC) sheath. This cable has a nominal outside diameter of 4.22 mm and a length of 50 meters. It supports an operating voltage up to 300V and temperature tolerance ranging from -30°C to +105°C, making it suitable for demanding industrial environments.
The cable's stranded conductors provide excellent flexibility, while its premium grade PVC jacket offers resistance to UV, oil, and abrasion. Colour-coded cores in black, brown, and red facilitate easy identification during installation. Its foil shielded design ensures moderate electromagnetic interference protection, vital for data integrity in automation, manufacturing, and commercial electronics.
The Pro-Tekt series is compliant with CE, CSA Certified, and UL standards, confirming its quality and safety credentials. The cable features a nominal jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.010 inch (0.25 mm), optimized for durability and performance.
Applications include wiring in industrial automation systems, medical devices, aerospace equipment, petrochemical, and commercial electronic setups where reliable power and data transmission are critical.
Stranded conductors ensure flexibility and ease of handling. Flame retardant PVC sheath enhances safety in fire-prone environments. Operating temperature range of -30°C to 105°C expands applicability to harsh conditions.
Foil shield provides electromagnetic interference protection to maintain signal integrity. Colour-coded conductors simplify installation and maintenance. Compliant with international standards including CE, CSA, and UL for assured quality.
Nominal outer diameter of 4.22 mm balances robustness and compactness.
This Alpha Wire Pro-Tekt cable is an ideal choice for engineers and technicians requiring reliable, high-quality data and power cables for industrial and commercial use cases. Explore more from the Alpha Wire range to suit various electrical power and industrial cable needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 300V.
It has a temperature range from -30°C to +105°C, making it suitable for various environments.
This model features 3 cores, which are color-coded in black, brown, and red for easy identification.
The cable has stranded tin copper wire conductors and is encased in a grey polyvinyl chloride (PVC) sheath.
The nominal outside diameter of this cable is 4.22 mm.
Yes, the cable is flame retardant, enhancing safety in fire-prone environments.
It complies with CE, CSA Certified, and UL standards, ensuring quality and safety.
The insulation thickness is 0.010 inch (0.25 mm).
The cable length is 50 meters.
It is designed for industrial, automation, and commercial electronic applications requiring reliable data transmission.
The cable features a foil shielded design to provide protection against electromagnetic interference.
The jacket thickness is 0.032 inch (0.81 mm).
