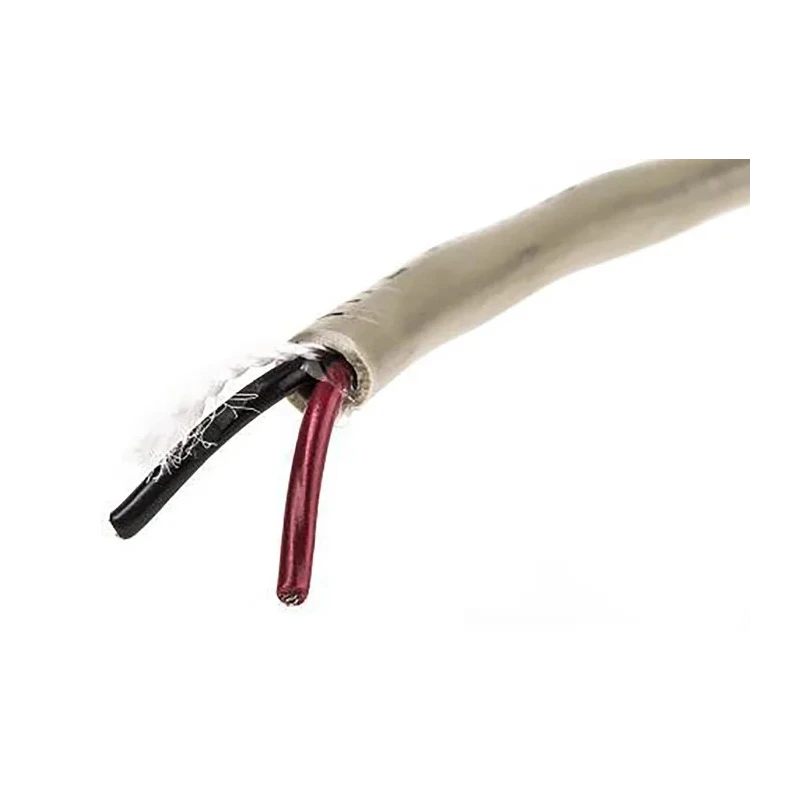

Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.14 mm² 50 m Grey Sheath Polyvinyl Chloride B952021 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.14mm² |
| Model | B952021 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 3.68mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.145 inch (3.68 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.16mm |
| Size of Strands | 0.16mm |
| Conductors | 2, Black, Brown |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/34 |
Key Features
- Constructed with stranded tin copper conductors for enhanced flexibility and conductivity.
- Rated for 300 V operating voltage with flame retardant polyvinyl chloride jacket.
- Operates reliably within a temperature range of -30°C to 105°C.
- Complies with CE, CSA, and UL standards ensuring safety and quality.
- Nominal diameter of 3.68 mm with a jacket thickness of 0.81 mm for robust protection.
- Features 7 strands per conductor, each strand measuring 0.16 mm for optimal performance.
- Designed for industrial and automation applications requiring flexible and flame retardant cables.
Product Description
Alpha Wire B952021 GE321 Pro-Tekt Series Data Cable is a premium quality, flexible cable designed for demanding industrial, automation, and electronic applications. Featuring 2 conductors each with a cross-sectional area of 0.14 mm², this cable is sheathed in a durable grey polyvinyl chloride jacket that resists UV exposure, oils, and abrasion.
The stranded tin copper conductors (7 strands of 0.16 mm diameter each) provide excellent flexibility and reliable electrical performance at an operating voltage of 300 V. The cable’s flame retardant PVC jacket ensures enhanced safety by resisting fire propagation.
It is rated for operation within a wide temperature range from -30°C up to 105°C, making it suitable for use in harsh environments. The 3.68 mm nominal diameter and 0.81 mm jacket thickness contribute to both mechanical protection and ease of installation in constrained spaces.
This Pro-Tekt cable meets high industry standards including CE marking, CSA certification, and UL approvals, making it ideal for European industrial automation, medical device wiring, aerospace electronics, petrochemical facilities, and commercial electronic systems.
Stranded tin copper conductors deliver superior flexibility and conductivity. Rated for 300 V with flame retardant polyvinyl chloride jacket. Wide operating temperature range of -30°C to 105°C ensures dependable function in varied environments.
Complies with CE, CSA Certified, and UL standards for safety and performance. Compact 3.68 mm diameter cable suitable for use in limited-space industrial applications. Robust jacket thickness of 0.81 mm protects against physical and environmental damage.
Suitable for combining data and power cores in complex industrial wiring schemes.
Alpha Wire’s Pro-Tekt range is designed to minimize downtime by providing reliable cable solutions for power and data transmission in automation, aerospace, medical, and commercial industries. This 50 m cable coil enables versatile installation and integration in equipment and control panels.
Explore more Alpha Wire products and cables in EnvMart to find solutions for your electronic and industrial wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this cable is 105°C.
The nominal diameter of this cable is 3.68 mm.
It features stranded tin copper conductors, with each conductor consisting of 7 strands measuring 0.16 mm in diameter.
This data cable is rated for an operating voltage of 300 V.
The jacket is made of flame retardant polyvinyl chloride (PVC), which provides protection against fire propagation.
The jacket thickness of this cable is 0.81 mm.
This cable complies with CE, CSA, and UL standards, ensuring safety and quality.
The length of this cable is 50 m.
The minimum operating temperature for this cable is -30°C.
This model has 2 cores.
It is designed for industrial and automation applications requiring flexible and flame retardant cables.
The insulation thickness of this data cable is 0.25 mm (0.010 inch).
