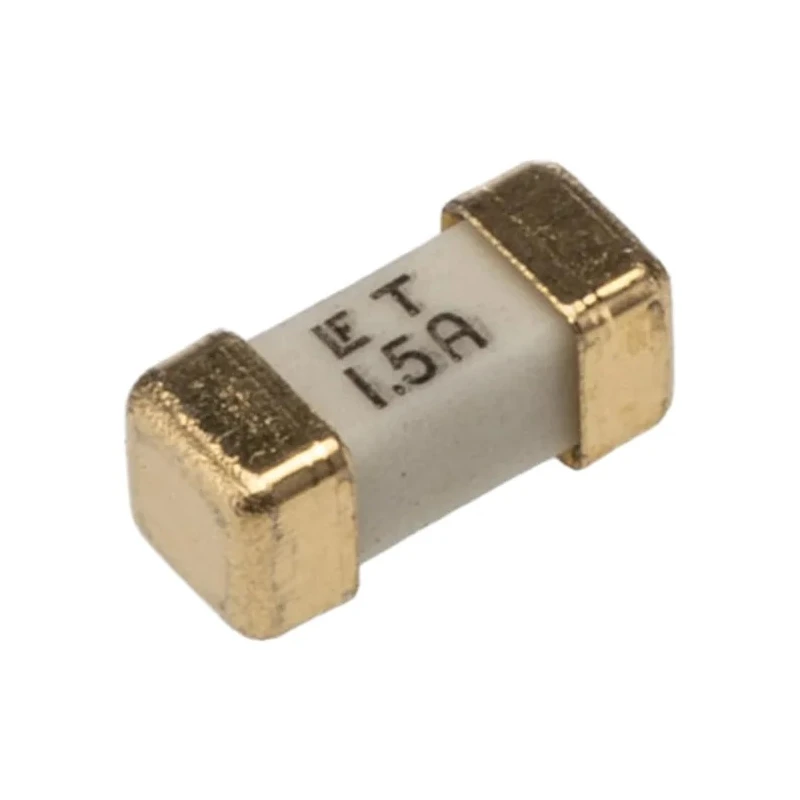

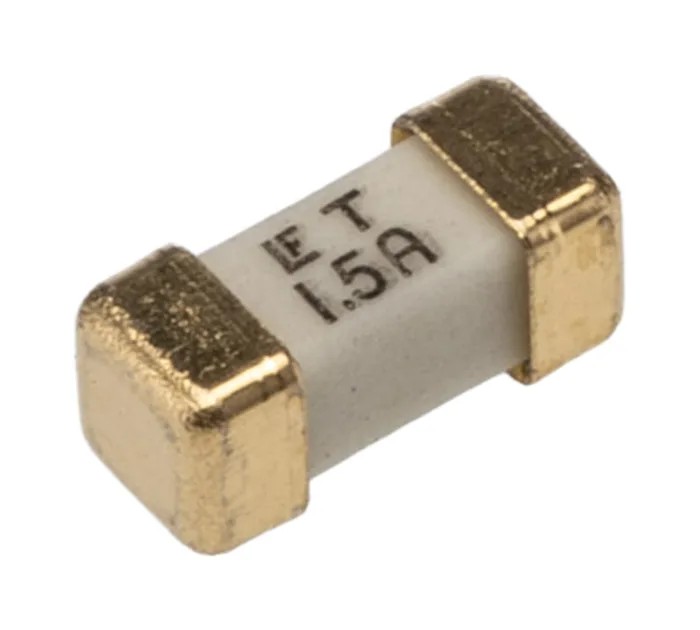

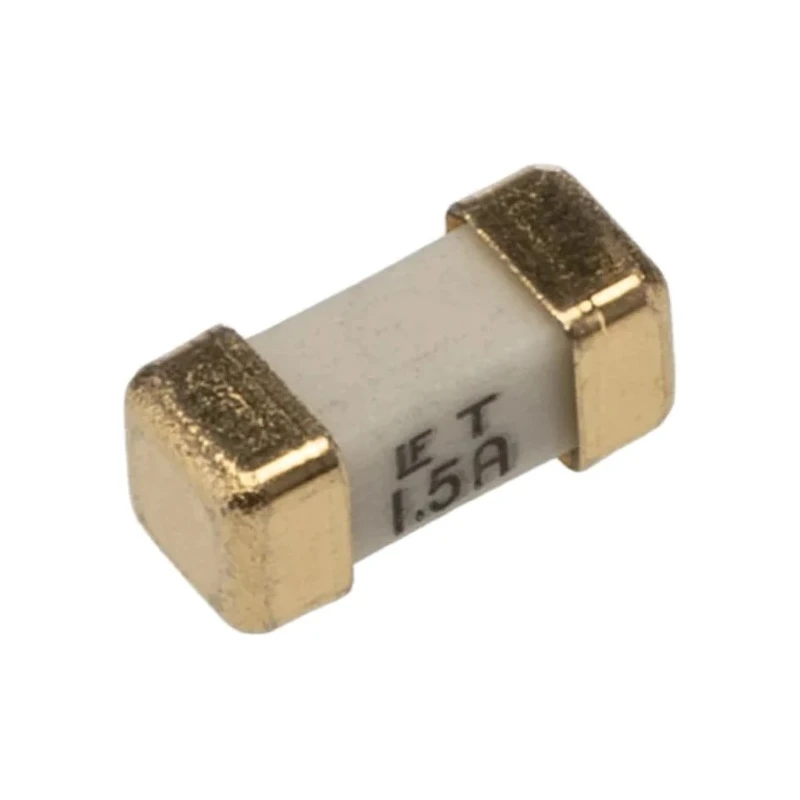

Littelfuse Non-Resettable Fuse Ceramic Body 1.5A 125V Time Delay 452 Series 045201.5MRL
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Height | 2.69mm |
| Model | 045201.5MRL |
| Depth | 10.1mm |
| Width | 2.69mm |
| Current Rating | 1.5A |
| Series | 452 |
| Maximum Operating Temperature | -55°C |
| Resistance | 0.09Ω |
| Package Type | Reel |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Gold Plated |
| Standards/Approvals | UL 248-14, CSA, RoHS |
| Fuse Characteristics | Time Delay |
Key Features
- This fuse has a current rating of 1.5 amperes and an operating voltage of 125 volts.
- It features a time delay fuse characteristic to accommodate inrush currents without nuisance tripping.
- The body is made from durable ceramic material providing high temperature resistance.
- The fuse comes supplied on reels, ideal for automated insertion in manufacturing processes.
- Breaking capacity is rated at 50 amperes to ensure safe operation under fault conditions.
- Its terminal material is gold plated for enhanced conductivity and corrosion resistance.
- The fuse complies with UL 248-14, CSA, and RoHS standards for quality and environmental safety.
- Compact dimensions of 2.69 mm width, 2.69 mm height, and 10.1 mm depth make it suitable for space-constrained applications.
Product Description
Littelfuse 045201.5MRL is a Non-Resettable Fuse designed for circuit protection in electrical, automation, and industrial applications. Operating at 1.5 amperes current rating and 125 volts voltage, it offers reliable protection with a time delay characteristic to handle inrush currents effectively.
The fuse features a robust ceramic body that provides excellent durability and thermal resistance, suitable for demanding environments. Its gold-plated terminals maximize electrical conductivity and resist corrosion over time.
Supplied on reels, the fuse facilitates automated assembly lines and enhances production efficiency. The compact size of 2.69 mm (width) x 2.69 mm (height) x 10.1 mm (depth) makes it ideal for densely packed circuit boards found in medical apparatus, audio/visual equipment, computer hardware, and power supplies.
The breaking capacity of 50 amperes ensures safe disconnection during electrical faults. It operates reliably across a wide temperature range, from -55°C to 125°C, thus supporting a variety of industrial and commercial environments.
The Littelfuse 452 series NANO2 surface mount fuses are recognized for their enhanced inrush withstand capabilities and time-lag properties, minimizing unnecessary fuse openings in circuits. Compliance with UL 248-14, CSA, and RoHS standards further guarantees safety and quality conformity.
This fuse has a current rating of 1.5 amperes and operates at 125 volts. Time delay characteristic accommodates transient currents without tripping. Ceramic body material offers high durability and thermal resistance. Gold plated terminals ensure excellent electrical contact and corrosion resistance.
Breaking capacity is rated at 50 amperes for effective fault protection. Compact dimensions make it suited for surface mount technology applications. Operating temperature range from -55°C to 125°C. Compliance with UL 248-14, CSA, and RoHS standards.
This Littelfuse non-resettable fuse is suitable for use in industrial machinery, manufacturing electronics, electrical automation, and other fields requiring reliable overcurrent protection.
Browse more in the Non Resettable Fuses category on EnvMart for compatible and complementary products from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The fuse has a current rating of 1.5 amperes.
It operates at a voltage of 125 volts.
The breaking capacity is rated at 50 amperes, ensuring safe operation during fault conditions.
The body is made from ceramic, providing high durability and thermal resistance.
It has compact dimensions of 2.69 mm in width, 2.69 mm in height, and 10.1 mm in depth.
The operating temperature range is from -55°C to 125°C.
It features a time delay characteristic to accommodate inrush currents without nuisance tripping.
It complies with UL 248-14, CSA, and RoHS standards for quality and environmental safety.
The terminals are gold plated to enhance conductivity and resist corrosion.
The fuse is supplied on reels, making it suitable for automated insertion in manufacturing processes.
It is suitable for industrial machinery, manufacturing electronics, electrical automation, and other fields requiring reliable overcurrent protection.
This model is part of the Littelfuse 452 series.
