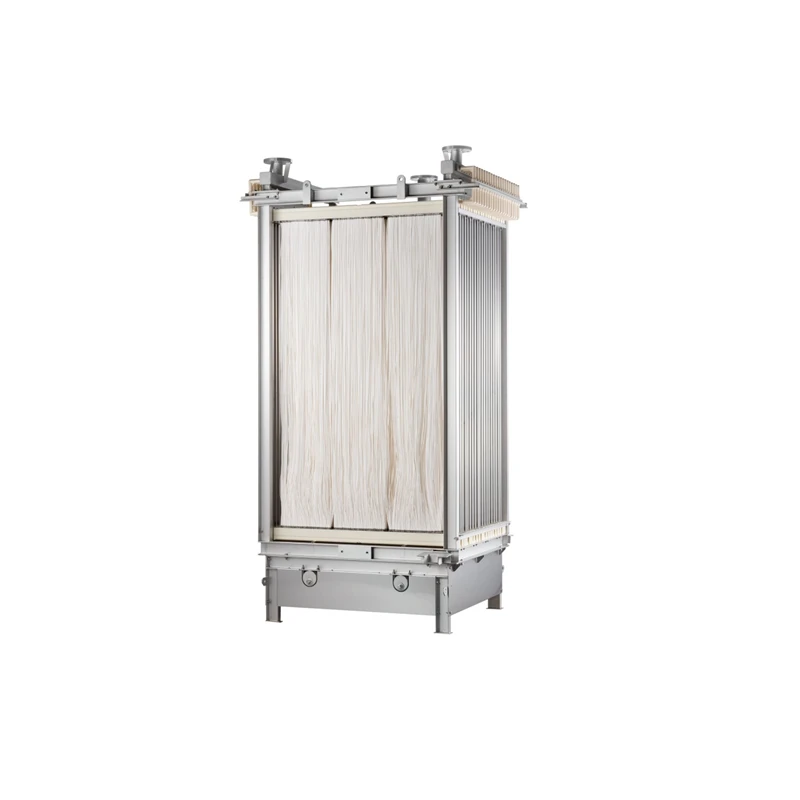

Hollow Fibre Membrane 46 Cassettes HFMBR -IB-25-46
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2760 mm |
| Length | 2600 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-25-46 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 1150 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 1056.8 Kg |
| Air Nozzle | DN 80 x 2 |
| Guide Pipe | DN 80 |
| Linear Velocity (75m/s) min Aeration m3/hr | 207 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 345 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 414 |
| Permeate Nozzle | DN 80 x 2 |
| No. of Cassettes | 46 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 46 Cassettes (HFMBR -IB-25-46), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 46 Cassettes (HFMBR -IB-25-46) is 1150 m².
The maximum operating temperature for this membrane is 40 degrees Celsius.

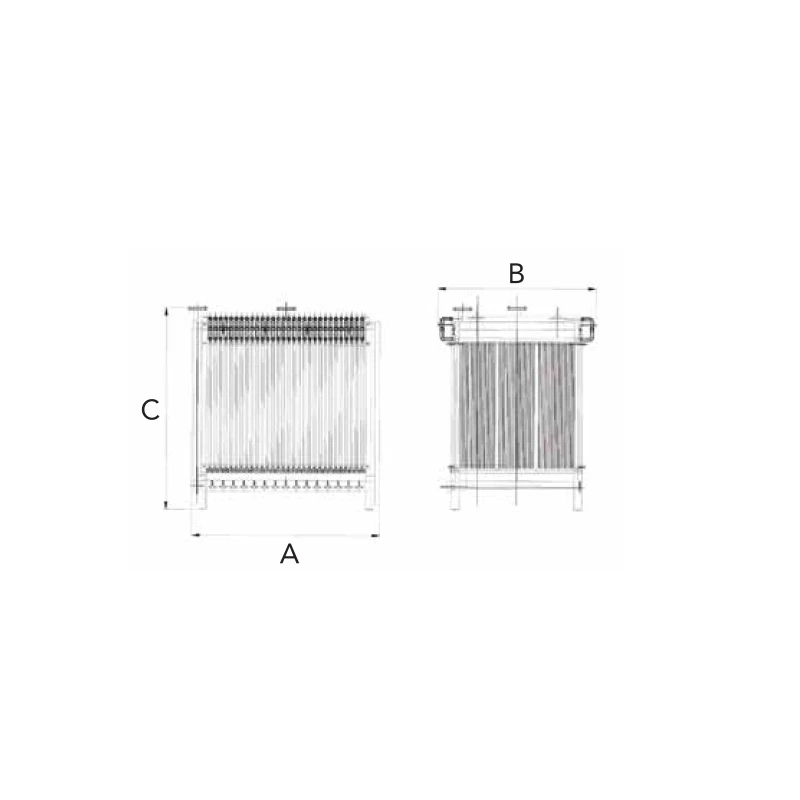

The dimensions of the Hollow Fibre Membrane 46 Cassettes are 2760 mm in height, 2600 mm in length, and 1510 mm in width.
The pH range for operating this membrane is between 4.5 and 5.4.
The maximum backwash pressure for the Hollow Fibre Membrane 46 Cassettes is 2000 mbar.
This membrane system includes 46 cassettes.
The frame of this membrane is made from SS-304/SS316.
The maximum transmembrane pressure (TMP) for this model is 400 mbar.
The linear velocity for standard aeration with this membrane is 345 m³/hr.
The operating temperature range for this membrane is between 5 and 40 degrees Celsius.
The weight of the Hollow Fibre Membrane module is 1056.8 kg.
The operating mode for permeate relaxation in this model is 08-02 minutes.
