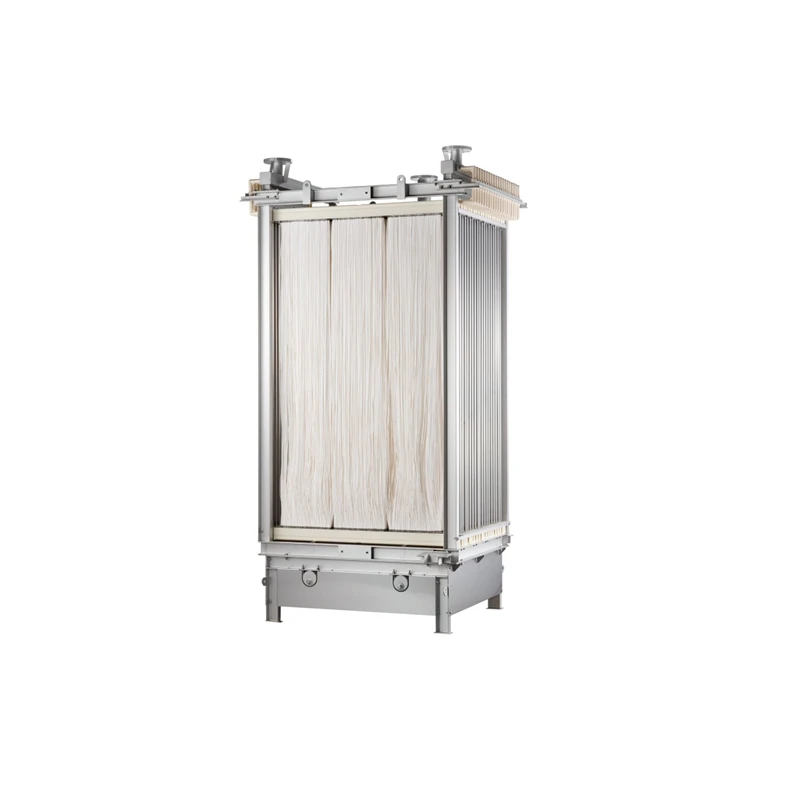

Hollow Fibre Membrane 36 Cassettes HFMBR -IB-25-36
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|

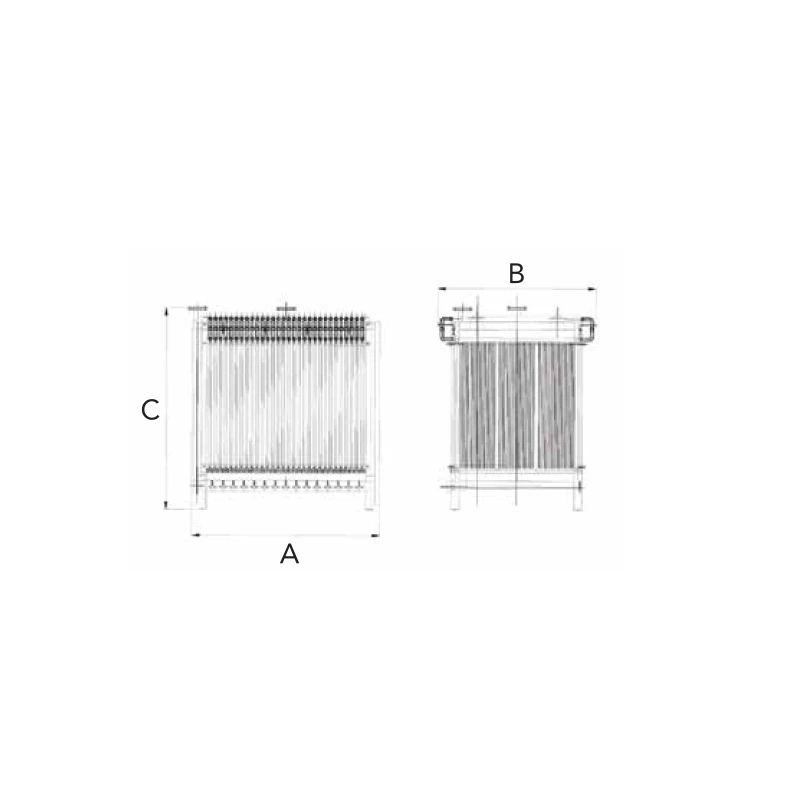

| Height | 2760 mm |
| Length | 2100 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-25-36 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 900 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 883.8 Kg |
| Air Nozzle | DN 80 |
| Guide Pipe | DN 80 |
| Linear Velocity (75m/s) min Aeration m3/hr | 162 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 270 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 324 |
| Permeate Nozzle | DN 80 |
| No. of Cassettes | 36 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 36 Cassettes (HFMBR -IB-25-36), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of this model is 900 m².
The maximum pressure drop for the HFMBR -IB-25-36 is 200 mbar.
This model operates within a temperature range of 5 to 40 degrees Celsius.
The maximum transmembrane pressure for this membrane is 400 mbar.
The height of this model is 2760 mm, and it weighs 883.8 kg.
The membrane frame is made of SS-304 and SS-316 stainless steel.
The pH range suitable for the operation of this model is 4.5 to 5.4.
This model consists of 36 cassettes.
The maximum backwash pressure for the HFMBR -IB-25-36 is 2000 mbar.
The linear velocity for minimum aeration is 162 m³/hr, standard aeration is 270 m³/hr, and maximum aeration is 324 m³/hr.
The operating transmembrane pressure range for the HFMBR -IB-25-36 is 100 to 500 mbar.
The membrane material used in this model is reinforced polyvinyl difluoride (PVDF).
