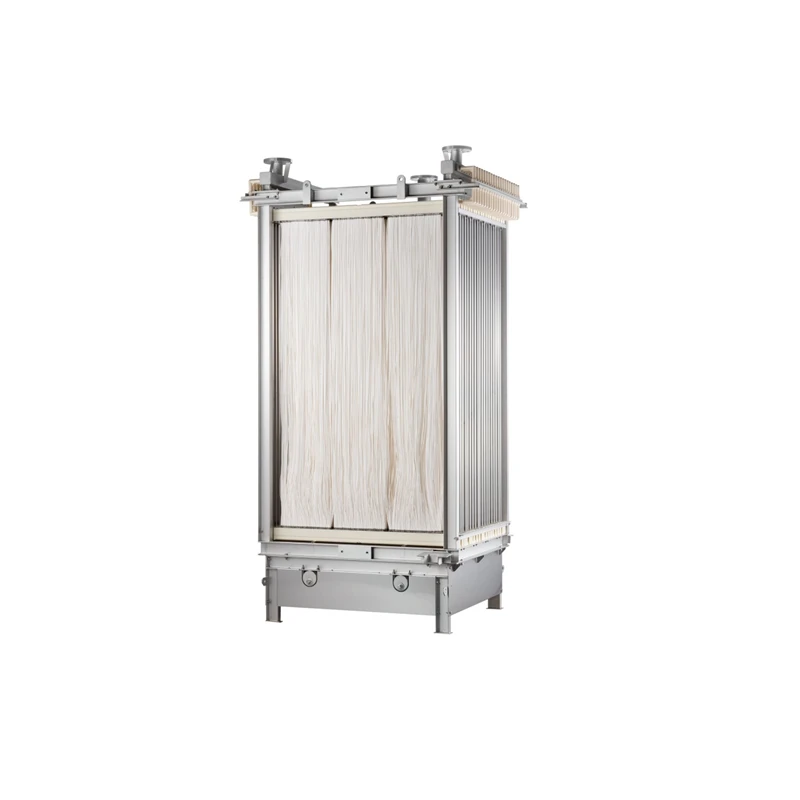

Hollow Fibre Membrane 16 Cassettes HFMBR -IB-25-16
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2760 mm |
| Length | 1100 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-25-16 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 400 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 537.8 Kg |
| Air Nozzle | DN 50 |
| Guide Pipe | DN 50 |
| Linear Velocity (75m/s) min Aeration m3/hr | 72 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 120 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 144 |
| Permeate Nozzle | DN 50 |
| No. of Cassettes | 16 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 16 Cassettes (HFMBR -IB-25-16), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of this model is 400 m².
The maximum operating temperature for the Hollow Fibre Membrane is 40 degrees Celsius.
The maximum transmembrane pressure (TMP) for this unit is 400 mbar.
The suitable pH range for this membrane is between 4.5 and 5.4.

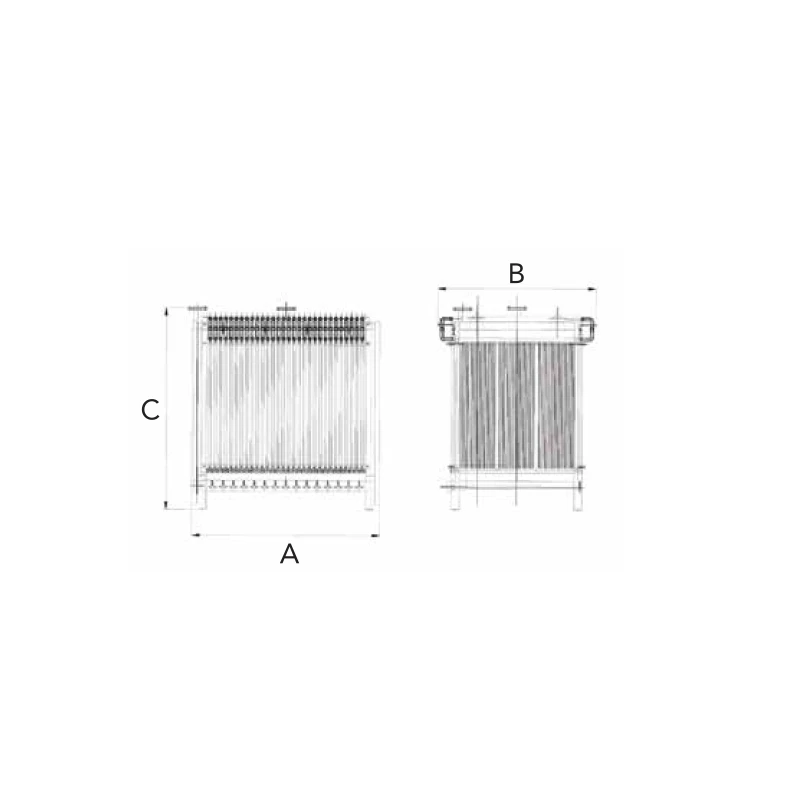

The dimensions are 2760 mm in height, 1100 mm in length, and 1510 mm in width.
The weight of this module is 537.8 kg.
The maximum backwash pressure for this model is 2000 mbar.
This model includes 16 cassettes.
The material of construction for the frame is SS-304/SS316.
The linear velocity specifications for aeration are 72 m³/hr at 75 m/s, 120 m³/hr at 125 m/s, and 144 m³/hr at 150 m/s.
The operating transmembrane pressure range for this unit is between 100 and 500 mbar.
The operating temperature range for this membrane is from 5 to 40 degrees Celsius.
