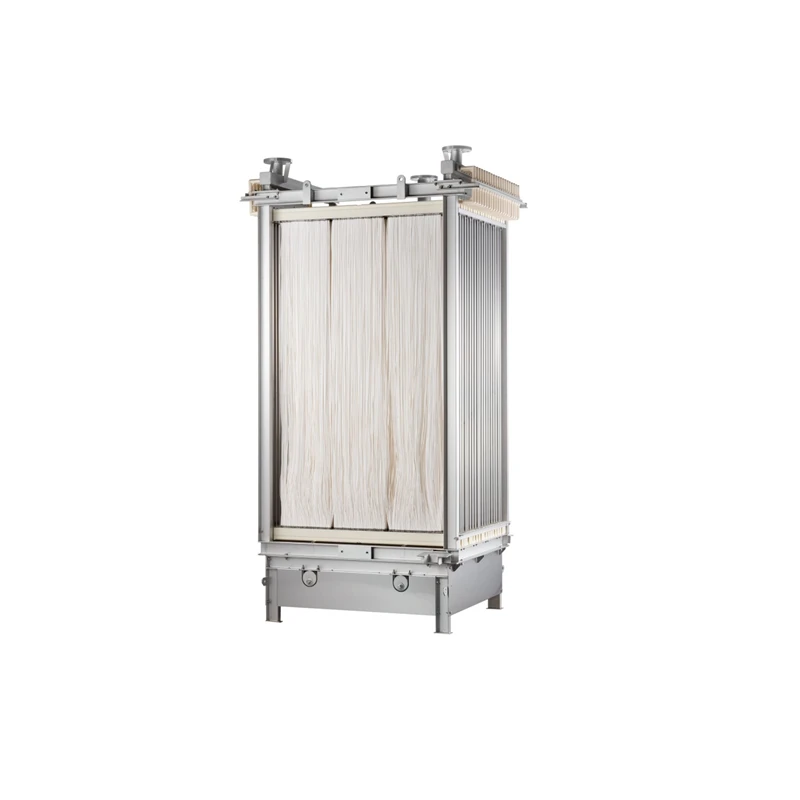

Hollow Fibre Membrane 8 Cassettes HFMBR -IB-25-8
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2760 mm |
| Length | 700 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-25-8 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 200 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 399.4 Kg |
| Air Nozzle | DN 40 |
| Guide Pipe | DN 40 |
| Linear Velocity (75m/s) min Aeration m3/hr | 36 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 60 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 72 |
| Permeate Nozzle | DN 40 |
| No. of Cassettes | 8 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 8 Cassettes (HFMBR -IB-25-8), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 8 Cassettes (HFMBR -IB-25-8) is 200 m².
This membrane operates within a temperature range of 5 to 40 degrees Celsius.
The maximum pressure drop for this model is 200 mbar.
The suitable pH range for the Hollow Fibre Membrane is between 4.5 and 5.4.
This model features 8 cassettes.
The membrane is made from reinforced PVDF, while the frame is constructed from SS-304/SS316.
The maximum transmembrane pressure (TMP) for this model is 400 mbar.

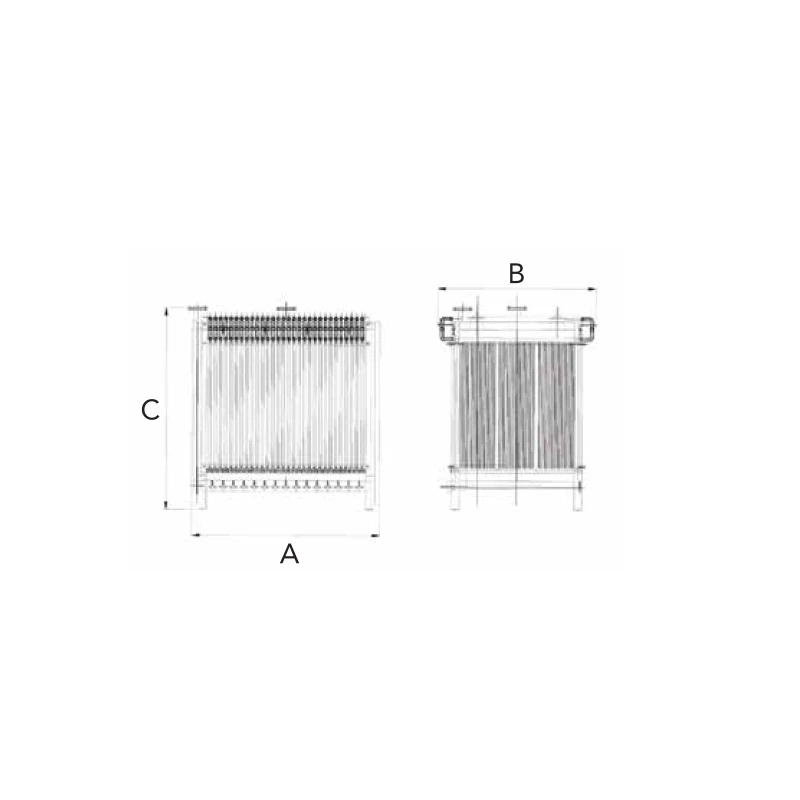

The dimensions of the Hollow Fibre Membrane are 2760 mm in height, 700 mm in length, and 1510 mm in width.
The maximum backwash pressure for this unit is 2000 mbar.
The linear velocity for standard aeration is 60 m³/hr.
The operating transmembrane pressure range for this model is between 100 and 500 mbar.
The air nozzle size for the Hollow Fibre Membrane is DN 40.
