RS PRO Pleated Panel HVAC Air Filter G4 Grade 8 MERV Rating 594mm x 594mm x 45mm 730-2858

RS PRO 730-2858 Pleated Panel HVAC Air Filter with G4 Grade and 8 MERV Rating measures 594 mm in width and height, with a depth of 45 mm. This high-capacity disposable air filter is designed for use in heating, ventilation, and air conditioning systems, offering a basic yet efficient level of filtration or pre-filtration in commercial and industrial HVAC applications. Constructed using patented Kimberly Clark Intrepid® filter media, it delivers consistent particulate filtering efficiency over its lifecycle with potential energy savings of up to 40 percent.

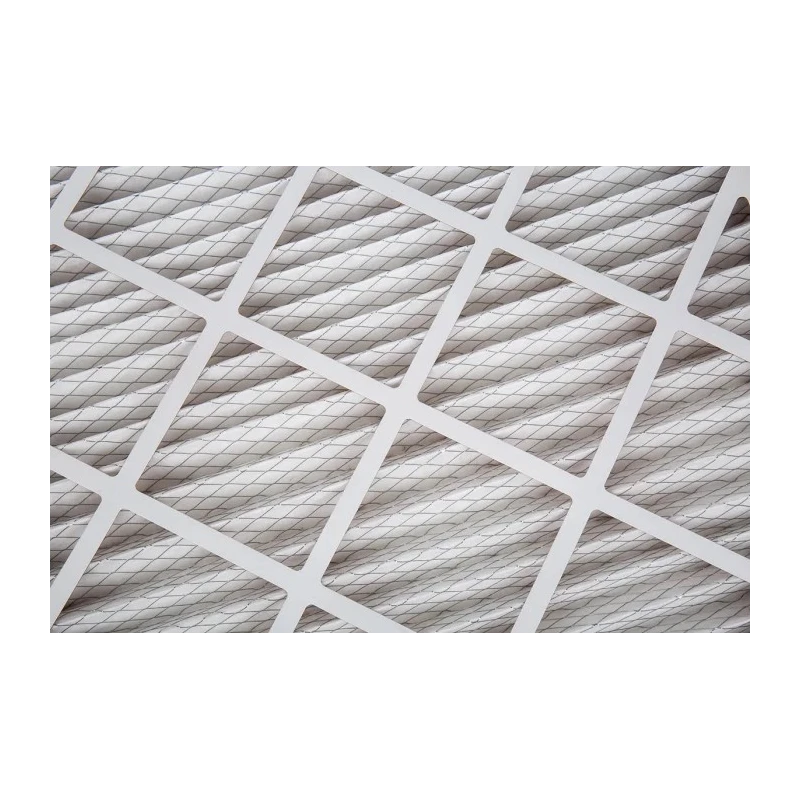

The filter includes a pleat pack of filter media bonded into a water-repellent AquaKote® card frame, which exhibits superior tear resistance when wet or dry, and is manufactured from renewable materials. The hydrophobic filter media features graduated density, allowing for even dirt loading, which translates to increased dust holding capacity and longer filter life. The natural electrostatic charge enhances filtering efficiency, especially against a range of particle sizes, while maintaining a low pressure drop to optimize airflow.

This pleated panel filter prevents dust and contaminants from entering HVAC equipment, thereby mitigating risks of overheating and operational failures. It supports a maximum airflow rate of 2540 cubic meters per hour, with an initial pressure drop of 47 Pa and a final pressure drop rated at 250 Pa. The filter complies with various standards and approvals including RoHS (2011/65/EU and 2015/863), ANSI/ESD S20.20:2014, and BS EN 61340-5-1:2007, ensuring its suitability for safe and environmentally compliant applications.

The filter is nominally sized at 24 inches width, 24 inches height, and 2 inches depth, suitable for common HVAC air filter slot configurations. The white AquaKote® case material enhances durability and professional aesthetics. Manufactured in the United Kingdom, this RS PRO product is built for reliability and performance in industrial, commercial, and institutional HVAC environments.

Patented Kimberly Clark Intrepid® media for sustained filtration efficiency. AquaKote® card frame provides water repellency and durability. Hydrophobic and electrostatically charged filter media. Max airflow: 2540 m³/h with low initial pressure drop (47 Pa).

Complies with RoHS, ANSI, and BS EN standards. Nominal dimensions 24" x 24" x 2" (594 mm x 594 mm x 45 mm). Suitable for HVAC air filtration and pre-filtration purposes. Constructed to resist tearing and particle shedding.

Efficient dust holding extends filter service life.

This RS PRO pleated panel air filter is ideal for HVAC systems requiring G4 grade filtration and 8 MERV rating, ensuring clean airflow and protecting critical equipment. Explore more HVAC Air Filter solutions and accessories at EnvMart for comprehensive system maintenance and performance.
