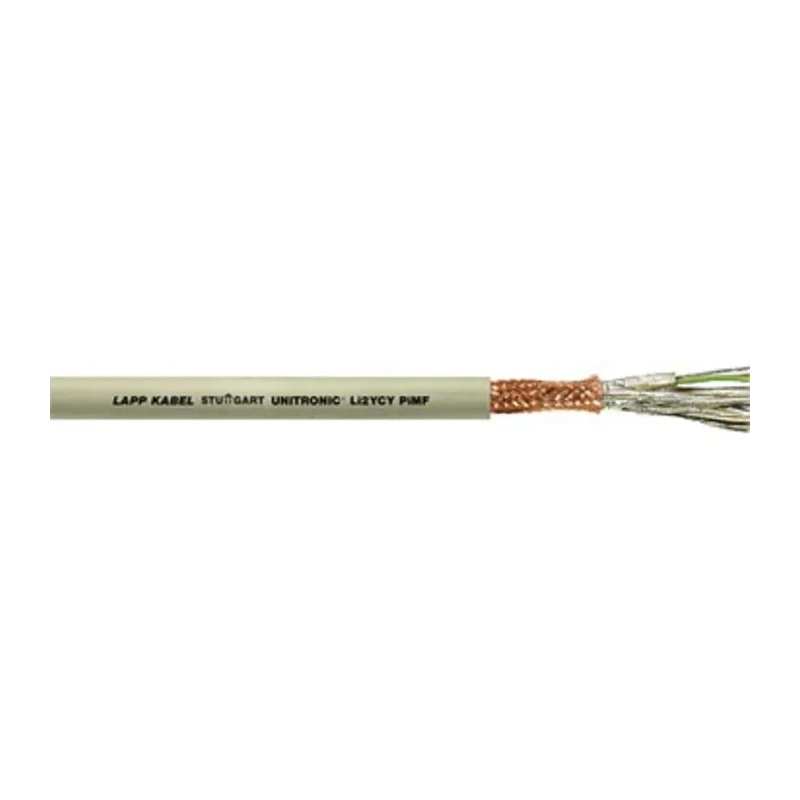

Lapp Unitronic Series Data Cable 4 Pairs 0.5 mm² 50 m Grey Sheath Polyvinyl Chloride 34062
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.5 mm² |
| Model | 34062 |
| Cable Length | 50m |
| Series | Unitronic |
| Outside diameter | 10.1mm |
| Maximum Operating Temperature | 75°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 4 |
| • Operating temperature in fixed installations | -40°C to +80°C |
Key Features
- The cable features low capacitance and twisted pair construction for sensitive signal transmission.
- It is shielded with a metal foil screen to prevent signal interference.
- Rated for 1000 V voltage and flame retardant to IEC 60332-1-2 standards.
- Suitable for fixed installation in dry or damp environments with operating temperatures from -40°C to 80°C.
- Conductor is made of stranded 7-wire bare copper for optimal conductivity.
- The grey PVC outer sheath provides mechanical protection and durability.
- Qualified for RS422 and RS485 interface compatibility.
- Designed for limited flexible use and fixed installations, with occasional flexing temperature range from -5°C to 70°C.
Product Description
Lapp 34062 Unitronic Series Data Cable is a high-quality 4-pair data cable with a 0.5 mm² cross-section and 50-meter length, sheathed in grey polyvinyl chloride. It is engineered for reliable transmission of low and sensitive signals with minimal interference, featuring a twisted pair design and a metal foil screen for enhanced signal protection.
This Data Cable operates at a voltage rating of 1000 V and meets RoHS compliance. The flame-retardant PVC sheath meets IEC 60332-1-2 standards, ensuring safety in electrical installations. Its operating temperature range from -40°C to +80°C allows it to perform efficiently in fixed installations, including dry and damp interiors.
The stranded 7-wire bare copper conductor offers excellent electrical conductivity, while the cable's construction supports limited flexibility and fixed wiring applications. The cable is qualified for RS422 and RS485 communication interfaces, making it suitable for diverse electronic circuits, computer systems, machine design, and office equipment applications.
The cable diameter measures 10.1 mm, balancing robustness and ease of installation in complex wiring systems. Recommended accessories include compatible Lapp Skintop MS-HF-M SC cable glands that ensure low resistance electrical contact.
The cable features low capacitance and twisted pair geometry optimized for high bit rate transmission. Additional shielding includes a foil wrap with a drain wire and overall copper braiding for enhanced noise immunity. Designed specifically for signal and control wiring in large industrial plants and sensitive electronic environments.
The sheath's flame-retardant properties ensure compliance with safety standards. Operating temperature capabilities accommodate both fixed and occasional flexible use. Constitutes a vital component for industrial automation, data processing, and communication infrastructure.
Lapp Unitronic cables are trusted for delivering high electrical interface quality in demanding applications. Explore more high-quality industrial cables and accessories in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 1000 V.
In fixed installations, the maximum operating temperature is +80°C.
The conductor is made of stranded 7-wire bare copper for optimal conductivity.
This data cable has a length of 50 meters.
The outside diameter of this cable is 10.1 mm.
Yes, it is suitable for fixed installation in both dry and damp environments.
The cable meets RoHS compliance and is flame retardant to IEC 60332-1-2 standards.
The minimum operating temperature is -40°C.
It is designed for signal and control wiring in industrial automation, data processing, and communication infrastructure.
The cable can operate with occasional flexing in temperatures from -5°C to +70°C.
It features a twisted pair construction and is shielded with a metal foil screen to prevent signal interference.
This model is qualified for RS422 and RS485 communication interfaces.
