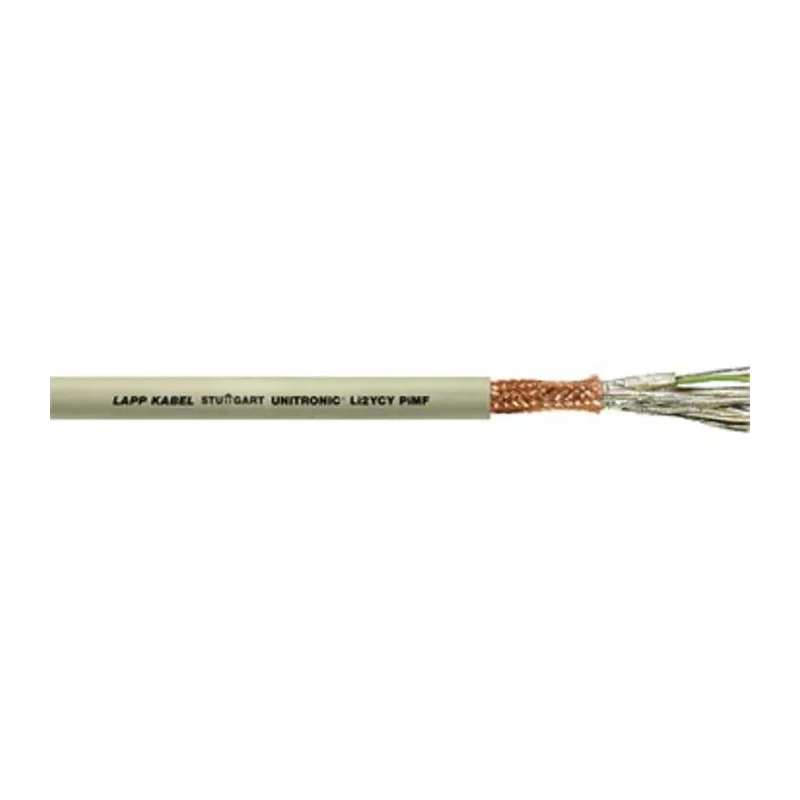

Lapp Unitronic Series Low Capacitance Data Cable 3 Pairs 0.5 mm² 50 m Grey Sheath Polyvinyl Chloride 34061
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Lapp |
| CROSS SECTIONAL AREA | 0.5 mm² |
| Model | 34061 |
| Cable Length | 50m |
| Series | Unitronic |
| Outside diameter | 9.3mm |
| Maximum Operating Temperature | 75°C |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 3 |
| • Operating temperature in fixed installations | -40°C to +80°C |
Key Features
- Constructed with 3 twisted pairs and 0.5 mm² bare copper conductors.
- Features a grey polyvinyl chloride (PVC) outer sheath for durability.
- Designed for limited flexible use and fixed installations in dry or damp interiors.
- Flame retardant to IEC 60332-1-2 standard for enhanced safety.
- Operates efficiently at voltages up to 1000 V and temperature ranges from -40°C to +80°C.
- Equipped with metal foil shielding to reduce signal interference.
- Ideal for sensitive signal transmission in electronic circuits and machine design.
- Complies with RoHS standards ensuring environmental safety.
Product Description
The Lapp 34061 Unitronic Series is a specialized low capacitance Data Cable with 3 pairs of 0.5 mm² bare copper conductors, designed to deliver optimal performance in industrial and commercial data transmission settings. This cable features a metal foil screen and an overall PVC jacket that provides flame retardant properties compliant with IEC 60332-1-2, making it reliable and safe for use in confined and humid environments.
With a grey polyvinyl chloride sheath and an outside diameter of 9.3 mm, the cable is suitable for limited flexible applications and fixed installations where high bit rates and sensitive signal integrity are required. It operates under a voltage rating of 1000 V and withstands temperature ranges from -40°C (minimum) in fixed installations up to +80°C max operating temperature, with occasional flexing supported up to +70°C.
This unitronic Li2YCY cable is ideal for electronic and computer systems, control applications, machine design, office equipment wiring, and other environments that demand reduced signal cross-talk and interference. It is engineered to be RoHS compliant and flame retardant, ensuring compliance with safety and environmental regulations.
The cable’s construction includes stranded 7-wire bare copper conductors, foil wrapping, and static screening of aluminum laminated plastic with a drain wire for enhanced EMI protection.
Accessories compatible with this cable include Lapp’s range of Skintop MS-HF-M SC cable glands designed to maintain low resistance contact, available in sizes M12, M16, M20, M25, and M32.
Constructed with 3 twisted pairs and 0.5 mm² bare copper conductors. Grey jacket made from durable polyvinyl chloride providing flame retardance. Metal foil screen reduces signal interference for sensitive data transmission.
Rated for 1000 V operation voltage and flame retardant according to IEC 60332-1-2. Temperature range supports fixed installation from -40°C up to +80°C. Designed for limited flexible use and fixed installations in dry or damp conditions.
Meets RoHS compliance for environmental safety.
This cable is perfectly suited for industrial automation, electronic instrumentation, and laboratory systems requiring secure and interference-free data signal transmission. Shop Lapp cables in the Electrical, Automation & Cables category on EnvMart for reliable wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently at voltages up to 1000 V.
The maximum operating temperature for fixed installations is +80°C.
This model features 3 pairs of 0.5 mm² bare copper conductors.
The outside diameter of the cable is 9.3 mm.
Yes, it is flame retardant according to the IEC 60332-1-2 standard.
The outer sheath is made from polyvinyl chloride (PVC).
The minimum operating temperature is -40°C.
It is equipped with metal foil shielding to reduce signal interference.
It is ideal for electronic and computer systems, control applications, and machine design.
This unit complies with RoHS standards for environmental safety.
Compatible accessories include Lapp’s range of Skintop MS-HF-M SC cable glands in various sizes.
The conductors are constructed with stranded 7-wire bare copper.
