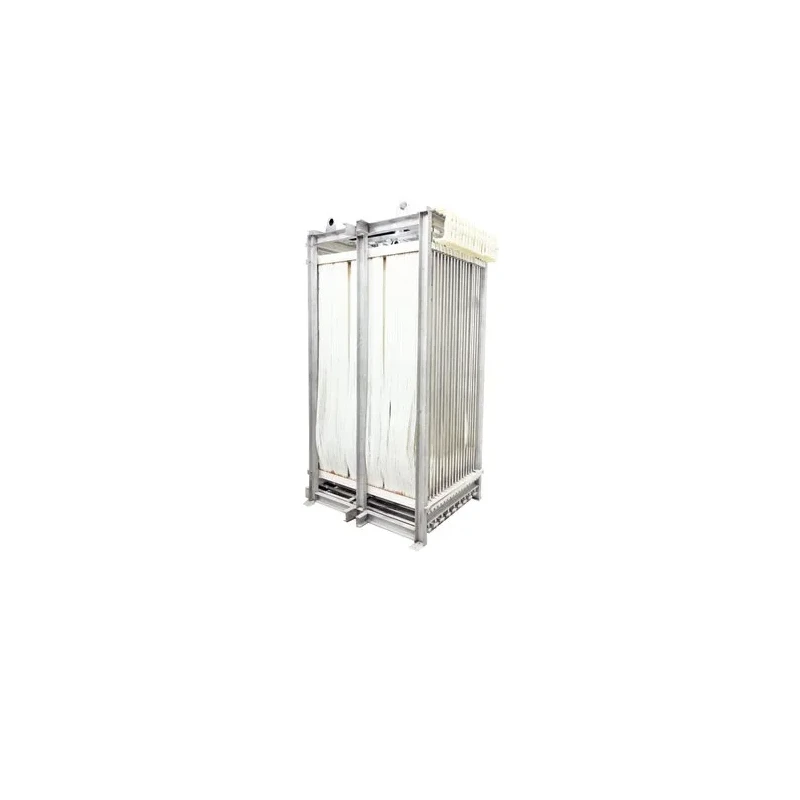

Hollow Fibre Membrane 36 Cassettes HFMBR -IB-15-36
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2060 MM |
| Length | 2100 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-15-36 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 540 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 701.8 Kg |
| Air Nozzle | DN 80 |
| Guide Pipe | DN 80 |
| Linear Velocity (75m/s) min Aeration m3/hr | 130 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 216 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 259 |
| Permeate Nozzle | DN 80 |
| No. of Cassettes | 36 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 36 Cassettes (HFMBR -IB-15-36), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating transmembrane pressure is 400 mbar.
The dimensions are 2060 mm in height, 2100 mm in length, and 1510 mm in width.
The maximum backwash pressure is 2000 mbar.
The operating temperature range is from 5 to 40 degrees Celsius.
The membrane material is reinforced PVDF, while the frame is made of SS-304 or SS-316.
The suitable pH range for this model is between 4.5 and 5.4.
This model includes 36 cassettes.
The weight of the module is 701.8 kg.
The maximum pressure drop is 200 mbar.
The linear velocity specifications are 130 m³/hr for minimum aeration at 75 m/s, 216 m³/hr for standard aeration at 125 m/s, and 259 m³/hr for maximum aeration at 150 m/s.
The operating mode for permeate relaxation is 08-02 minutes.
