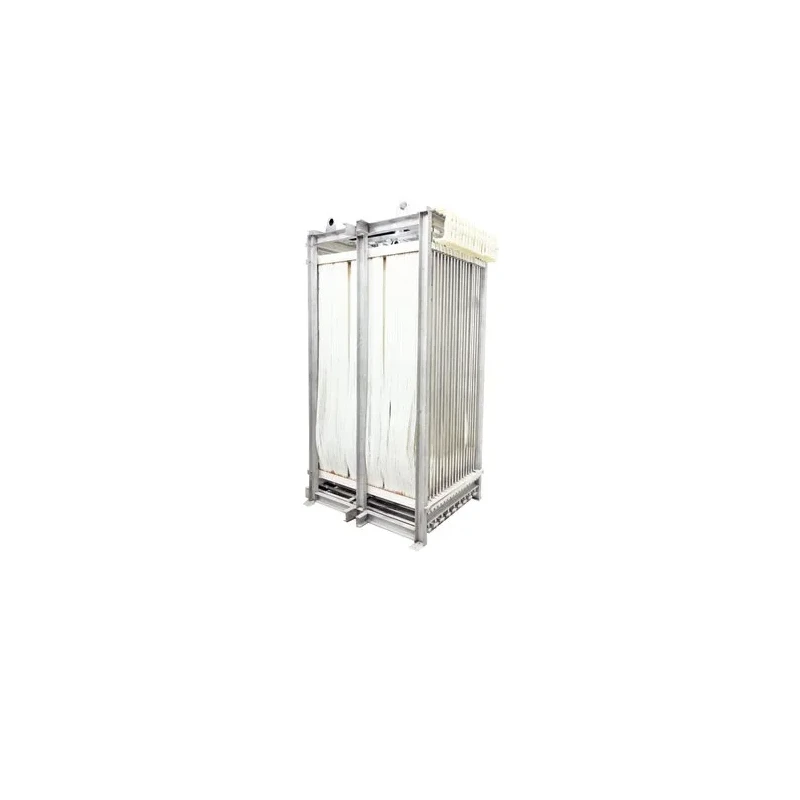

Hollow Fibre Membrane 32 Cassettes HFMBR -IB-15-32
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2060 MM |
| Length | 1900 mm |
| pH Range | 45540 |
| Model | HFMBR -IB-15-32 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 480 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 650.6 Kg |
| Air Nozzle | DN 80 |
| Guide Pipe | DN 80 |
| Linear Velocity (75m/s) min Aeration m3/hr | 115 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 192 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 230 |
| Permeate Nozzle | DN 80 |
| No. of Cassettes | 32 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 32 Cassettes (HFMBR -IB-15-32), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 32 Cassettes is 480 m².
This model can operate at temperatures ranging from 5 to 40 degrees Celsius.
The maximum transmembrane pressure (TMP) for this membrane is 400 mbar.
The dimensions are 2060 mm in height, 1900 mm in length, and 1510 mm in width.
The suitable pH range for this membrane is between 4.5 and 5.4.
The maximum backwash pressure for this model is 2000 mbar.
The membrane frame is made of SS-304/SS316 stainless steel.
This membrane system contains 32 cassettes.
The linear velocity for standard aeration in this model is 125 m/s, which corresponds to 192 m³/hr.
The operating transmembrane pressure range for this unit is between 100 and 500 mbar.
The membrane material used in this model is reinforced PVDF (polyvinyl difluoride).
The aeration flow rates are 115 m³/hr at a minimum linear velocity of 75 m/s, 192 m³/hr at a standard velocity of 125 m/s, and 230 m³/hr at a maximum velocity of 150 m/s.
