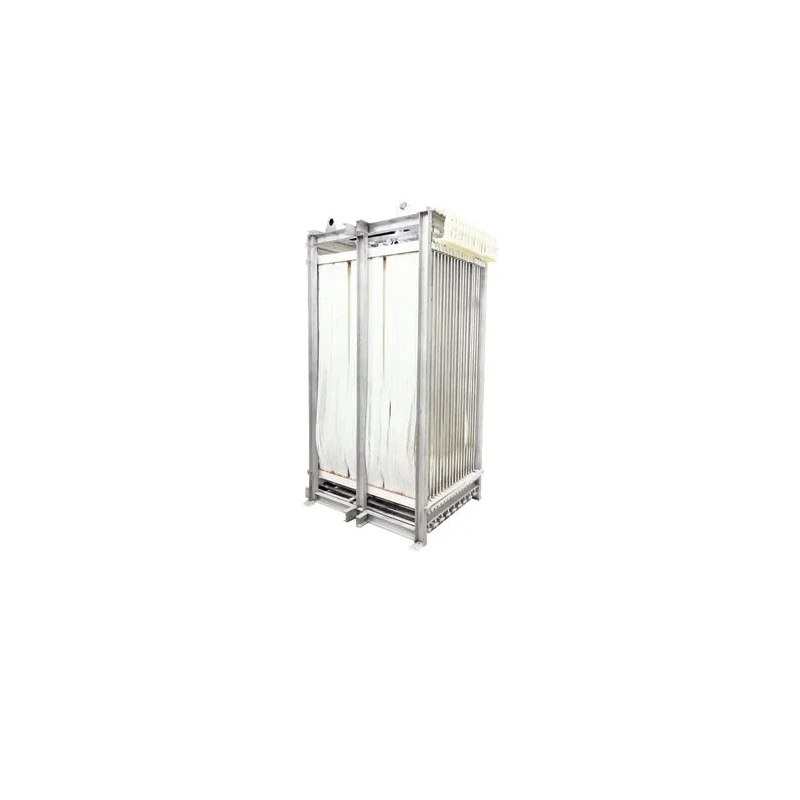

Hollow Fibre Membrane 14 Cassettes HFMBR -IB-15-14
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 2060 MM |
| Length | 1000 Mm |
| pH Range | 45540 |
| Model | HFMBR -IB-15-14 |
| Width | 1510 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 210 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 420.2 Kg |
| Air Nozzle | DN 50 |
| Guide Pipe | DN 50 |
| Linear Velocity (75m/s) min Aeration m3/hr | 50 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 84 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 101 |
| Permeate Nozzle | DN 50 |
| No. of Cassettes | 14 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 14 Cassettes (HFMBR -IB-15-14), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 14 Cassettes (HFMBR -IB-15-14) is 210 m².
The maximum operating temperature for this membrane is 40 degrees Celsius.
The suitable pH range for the Hollow Fibre Membrane is between 4.5 and 5.4.
The maximum backwash pressure for this unit is 2000 mbar.
This model features 14 cassettes.
The frame of this membrane is made from SS-304/SS316 stainless steel.
The maximum transmembrane pressure (TMP) for this membrane is 400 mbar.
The dimensions of this membrane module are 2060 mm in height, 1000 mm in length, and 1510 mm in width.
The operating transmembrane pressure for this model ranges from 100 to 500 mbar.
The weight of the module is 420.2 kg.
The linear velocity for standard aeration is 84 m³/hr.
The membrane material used in this model is reinforced polyvinyl difluoride (PVDF).
