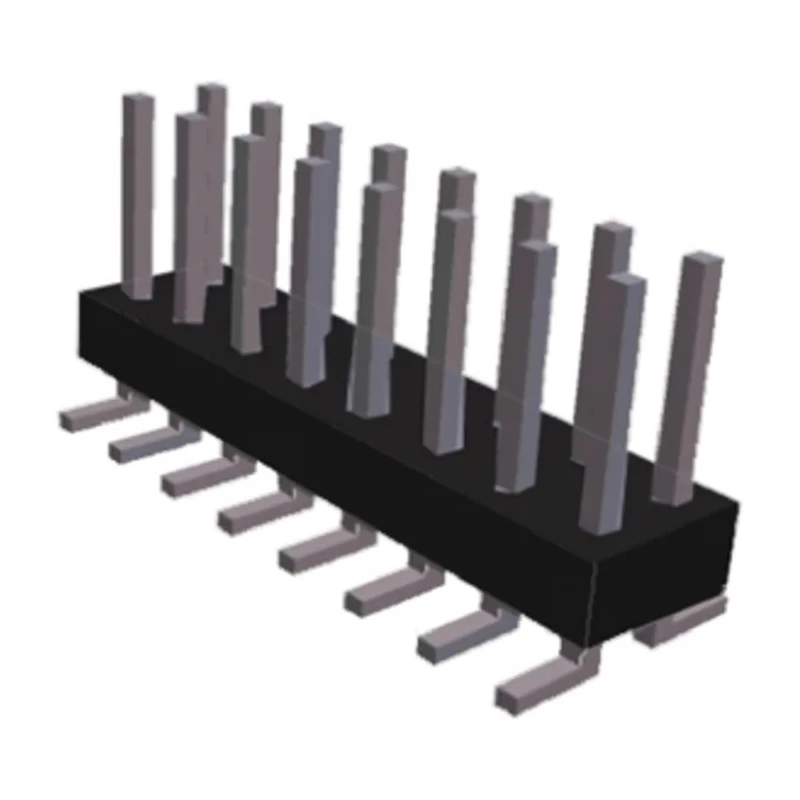

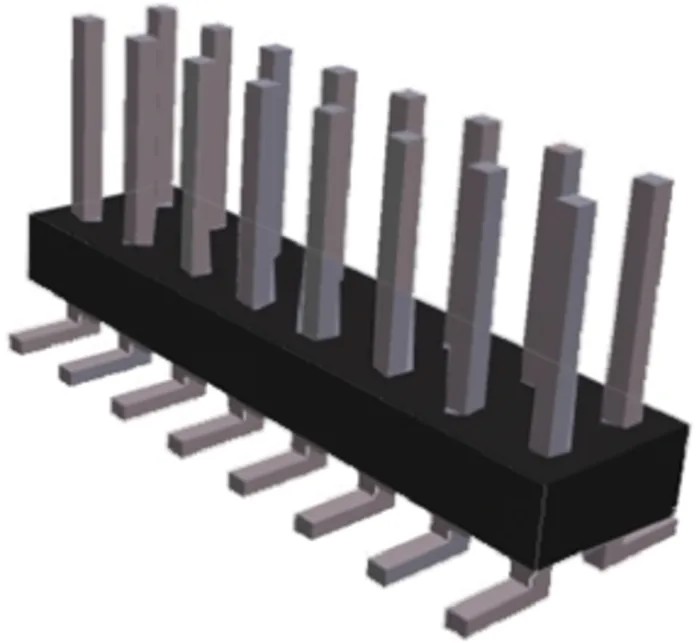

TE Connectivity AMPMODU MOD II Series Straight Surface Pin Header, 10 Contacts, 2 Row, 2.54 mm Pitch, 40V, 3A 5-146130-4

TE Connectivity 5-146130-4 AMPMODU MOD II Series Straight Surface Pin Header, featuring 10 male contacts in 2 rows with a 2.54 mm pitch, offers a highly reliable connector solution for industrial, automotive, telecommunications, and electronic applications. It is designed as part of the AMPMODU Interconnect system, which provides versatile and economical board-to-board and wire-to-board connections utilized broadly in automation and control systems.

The header uses phosphor bronze contact material with gold plating to improve electrical conductivity and resist corrosion. Its thermoplastic housing is unshrouded and configured for straight surface mounting, simplifying assembly and soldering operations while maintaining a robust mechanical and electrical connection.

Operating within a voltage rating of 40V and supporting a current capacity of 3A, this connector ensures stable performance under demanding electrical conditions. It is built to endure operating temperatures from -55°C up to 105°C, suitable for varied environmental exposures.

The solder termination type enhances joint strength, while the tail pin length of 2.29 mm and mating pin length of 5.84 mm provide secure attachment and efficient signal transmission. Manufactured in Mexico, this product meets rigorous quality criteria, making it suitable for automotive controls, industrial and test equipment, telecommunications, medical devices, storage equipment, and computer systems.

Implements a 2.54 mm pitch with 10 male contacts for accurate board-to-board or wire-to-board connections. Constructed with phosphor bronze contacts plated in gold to ensure durability and excellent conductivity. Features a thermoplastic housing material with an unshrouded straight surface mount design.

Operates safely within a 40V voltage rating and supports a current of up to 3A. Designed for use in harsh environments with operating temperatures ranging from -55°C to 105°C. Reliable solder termination type alongside robust mating and tail pin lengths for enhanced mechanical stability.

Manufactured in Mexico to stringent quality standards ensuring consistent performance. Suitable for automotive controls, industrial test equipment, telecommunications, medical instruments, and computer systems. Part of the AMPMODU Interconnect System known for versatility and cost-effectiveness in automation applications.

Unshrouded double row breakaway header enables customization in size and configuration. Explore more advanced PCB header solutions and connector accessories at EnvMart to enhance your electronics manufacturing and assembly capabilities.
