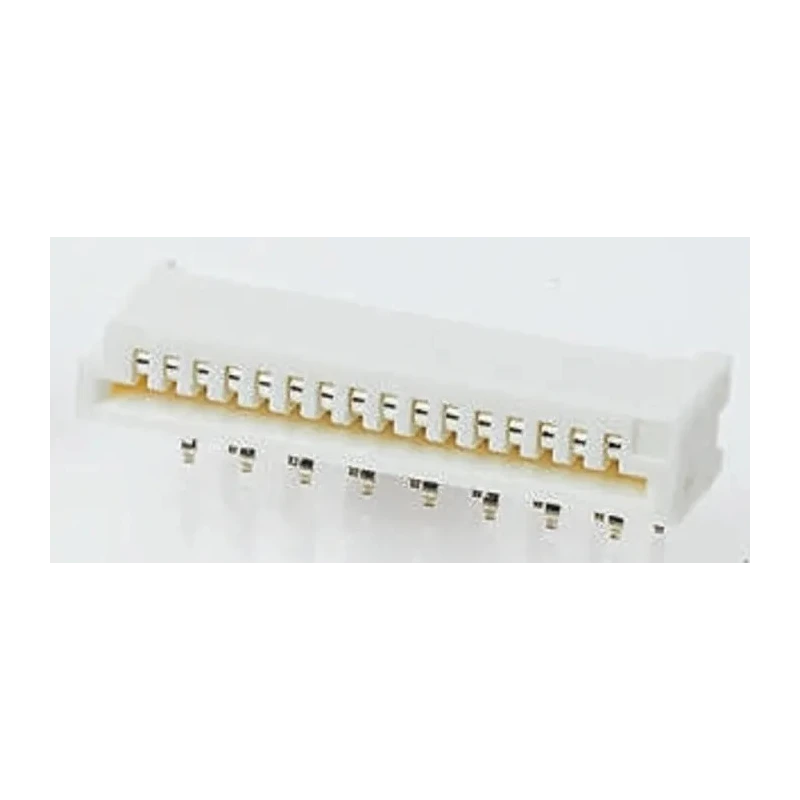

TE Connectivity FPC 1 mm Pitch 9 Way Right Angle Female FPC Connector Solder 84952-9

TE Connectivity 84952-9 is a precision 1 mm pitch 9 Way Right Angle Female FPC Connector designed for surface mount applications with solder termination. It features phosphor bronze contacts plated with tin over nickel for optimal conductivity and corrosion resistance. This connector employs a Zero Insertion Force (ZIF) slide lock actuator housing that eases cable insertion and secures the connection firmly on PCB assemblies. Its right angle design and bottom contact position provide excellent space efficiency for compact device layouts.

The connector’s housing is made from high-performance liquid crystal polymer, offering robust mechanical strength and thermal stability within the industrial temperature range from -40°C to 85°C. Rated for 200V AC voltage and 1A current, this component ensures reliable performance in communication devices, handheld electronics, set-top boxes, industrial controllers, and medical equipment.

The integrated locking mechanism maintains connection integrity even in high vibration or dynamic environments, enhancing durability and lifecycle. No additional application tooling is required for installation, simplifying assembly processes. Solder tabs add further retention strength on the PCB, ensuring a solid, long-lasting mechanical and electrical interface.

This 9-contact FPC connector supports a single row contact configuration, conforming to the FPC series for fine-pitch applications. The compact design and high reliability make it suitable for signal routing in electronics where space is limited and performance is critical.

Features 9 contacts for reliable connection and signal integrity. Constructed with phosphor bronze contacts plated with tin over nickel. Suitable for operating voltages up to 200V AC and currents of 1A. Right angle orientation with bottom contact position for space-saving PCB layout.

Equipped with slide lock actuator for secure cable insertion without additional tooling. Housing made from rugged liquid crystal polymer ensures durability. Meets operating temperature range from -40°C to 85°C for versatile industrial applications.

Locking mechanism included to maintain connection stability in high vibration environments. Ideal for use in hand held scanners, set-top boxes, industrial and medical equipment.

These characteristics make the TE Connectivity 84952-9 suitable for electronics manufacturers requiring dependable FPC Connectors that balance size, performance, and installation ease. Browse additional TE Connectivity connectors and related components at EnvMart for comprehensive electronic connectivity solutions.
