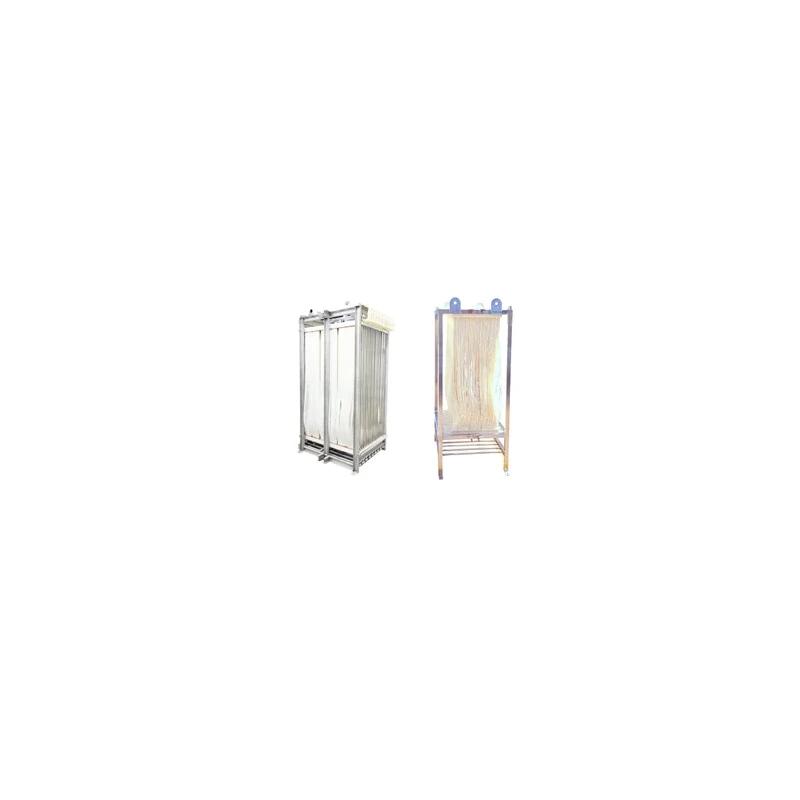

Hollow Fibre Membrane 48 Cassettes HFMBR -IA-D 10-48
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 1660 mm |
| Length | 2660 mm |
| pH Range | 45540 |
| Model | HFMBR -IA-D 10-48 |
| Width | 1360 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 480 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 347.5 Kg |
| Air Nozzle | DN 50 x 4 |
| Guide Pipe | DN 65 |
| Linear Velocity (75m/s) min Aeration m3/hr | 129.6 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 216 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 259.2 |
| Permeate Nozzle | DN 65 x 2 |
| No. of Cassettes | 48 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 48 Cassettes (HFMBR -IA-D 10-48), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 48 Cassettes (HFMBR -IA-D 10-48) is 480 m².
The maximum backwash pressure for this model is 2000 mbar.
The operating temperature range for this membrane is between 5 to 40 degrees Celsius.
This model includes 48 cassettes.
The maximum transmembrane pressure (TMP) for this unit is 400 mbar.
The membrane material is reinforced PVDF, and the frame is made from SS-304/SS316.
The suitable pH range for this model is between 4.5 to 5.4.

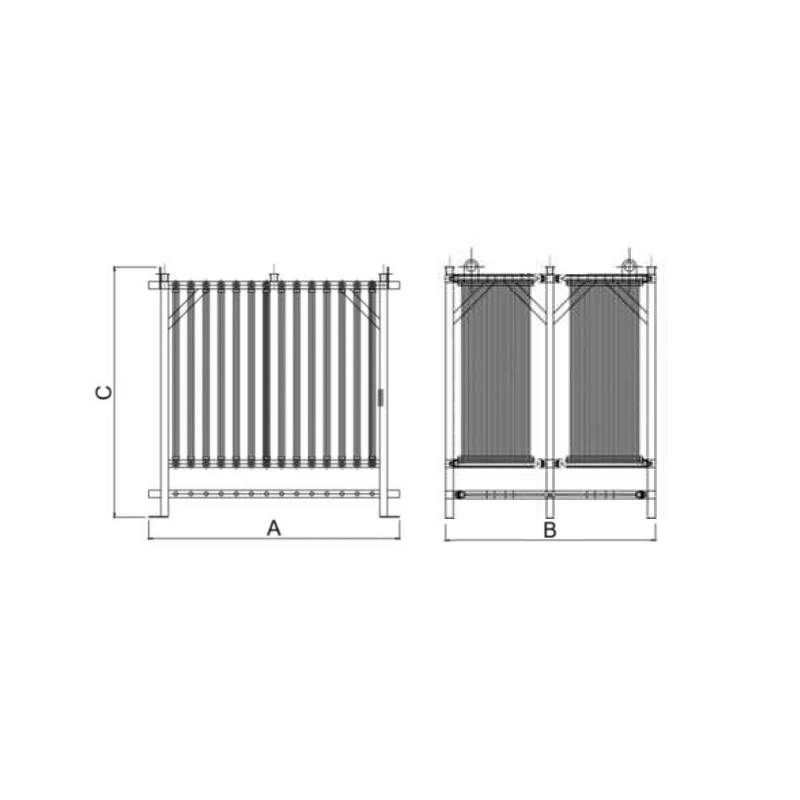

The dimensions of the Hollow Fibre Membrane 48 Cassettes are 1660 mm in height, 2660 mm in length, and 1360 mm in width.
The operating pressure range for this model is between 100 to 500 mbar.
The linear velocity for standard aeration with this model is 216 m³/hr.
The maximum pressure drop allowed for this model is 200 mbar.
The operating mode for permeate relaxation in this model is 08-02 minutes.
