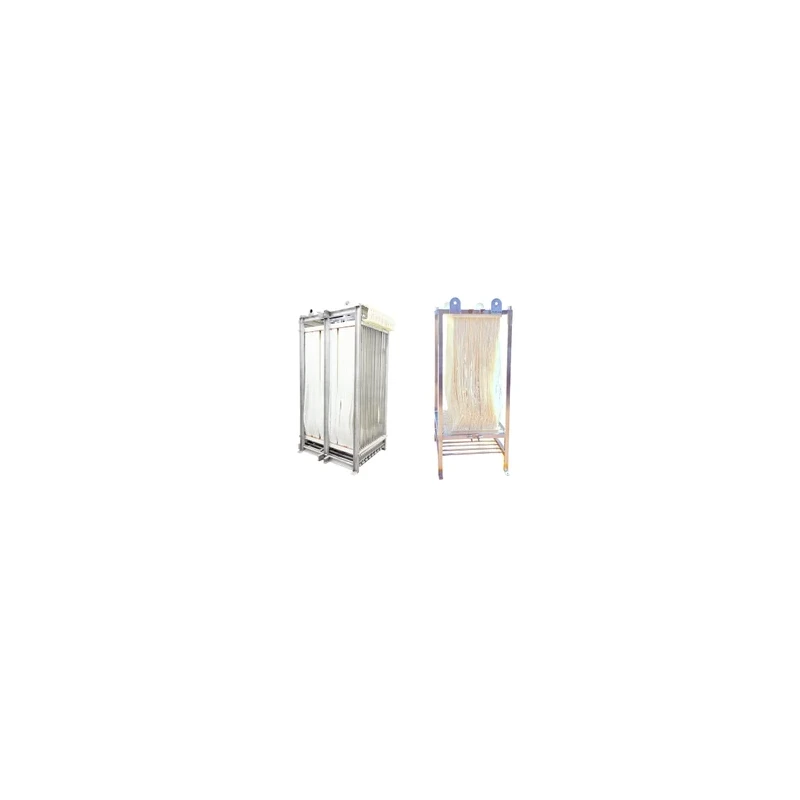

Hollow Fibre Membrane 28 Cassettes HFMBR -IA-10-28
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|
| Height | 1660 mm |
| Length | 3060 mm |
| pH Range | 45540 |
| Model | HFMBR -IA-10-28 |
| Width | 700 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-500 Mbar |
| Effective Membrane Area | 280 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 222.5 Kg |
| Air Nozzle | DN 50 x 2 |
| Guide Pipe | DN 65 |
| Linear Velocity (75m/s) min Aeration m3/hr | 75.6 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 126 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 151.2 |
| Permeate Nozzle | DN 50 x 2 |
| No. of Cassettes | 28 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description
Hollow Fibre Membrane 28 Cassettes (HFMBR -IA-10-28), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 28 Cassettes (HFMBR -IA-10-28) is 280 m².
This membrane operates within a temperature range of 5 to 40 degrees Celsius.
The maximum transmembrane pressure (TMP) for this model is 400 mbar.
The dimensions of this model are 1660 mm in height, 3060 mm in length, and 700 mm in width.
The maximum backwash pressure for this membrane is 2000 mbar.
The membrane is constructed from reinforced polyvinyl difluoride (PVDF) and the frame is made of SS-304 or SS-316.
This model includes 28 cassettes.
The suitable pH range for this membrane is between 4.5 and 5.4.
The maximum pressure drop for this model is 200 mbar.
The linear velocity specifications for aeration are 75.6 m³/hr at a minimum aeration velocity of 75 m/s, 126 m³/hr at standard aeration velocity of 125 m/s, and 151.2 m³/hr at maximum aeration velocity of 150 m/s.
The operating transmembrane pressure range for this model is between 100 and 500 mbar.
The weight of the module is 222.5 kg.
