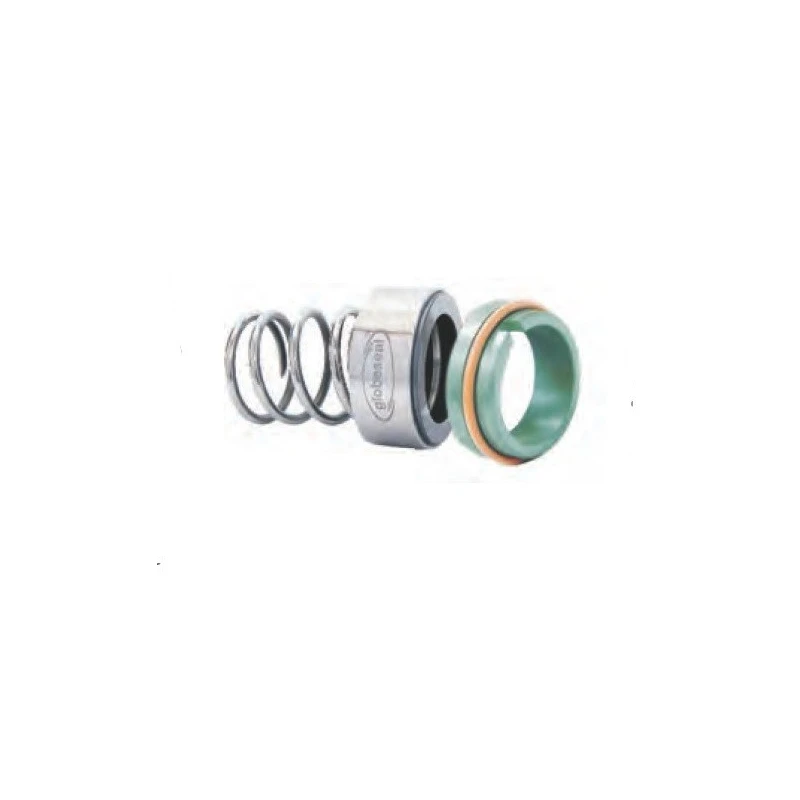

Single Spring Unbalance Seal Series GSS-140
Specifications
| Pressure | 10 Bar (kg/cm 2) |
|---|---|
| Temperature | -45 C to 200 C |
| Shaft Diameter | 10 mm To 100 mm |
| Shaft Speed | Upto 6000 RPM According To Shaft Size & Pressure. |
| Hardware | SS-316 SS-304 Hast-C Monel Alloy-20 |
| Face Material | Carbon Ceramic (99.5%) SIC. T.C. |
| Secondary Seal | Viton EPDM Silicon EPR Kalrez |
Key Features
- High Durability
- High performance
Product Description

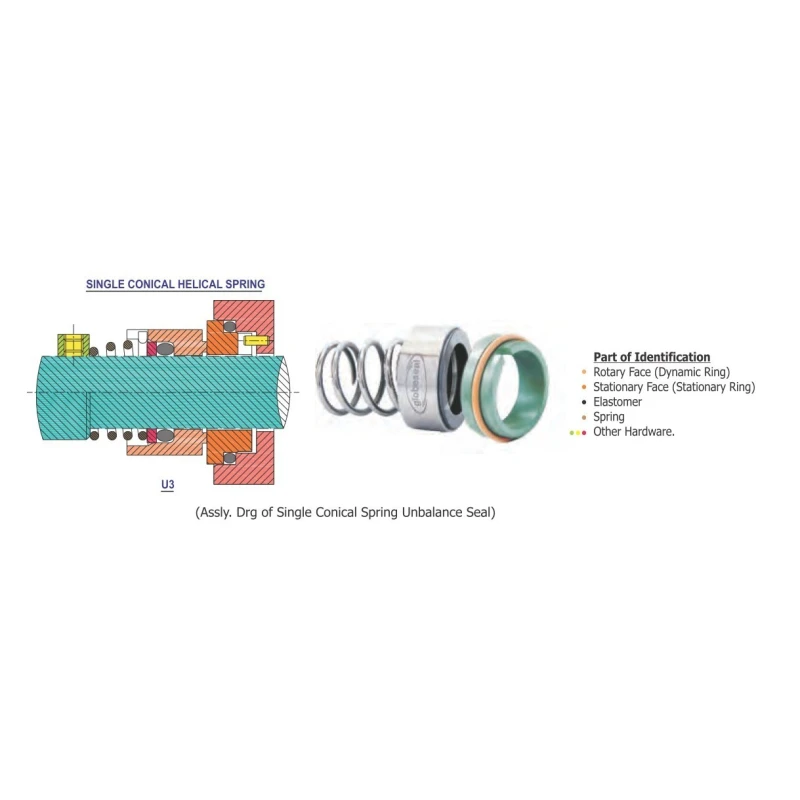

Single Spring Unbalance Seal Series (GSS-140): custom design single coil spring seals. We are a prime manufacturer & supplier of single coil spring seals in India.We provide specially designed GSS 140 series of seals for various industrial applications. It is an internally mounted unbalanced single coil spring seal, driven by the clutch. The seal contains a drive ring and a drive collar. If the spring is clogged, the rotary will be driven reliably. The motion transmits by the shaft to springs, driven by the rotary. The seals are mounted internally.The seal has wide applications in various industries. It is used in petrochemicals, general chemicals, dirty water and slurry, and petroleum refineries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The GSS-140 seal has a pressure rating of 10 Bar (kg/cm²).
This model can operate within a temperature range of -45°C to 200°C.
The maximum shaft speed is up to 6000 RPM, depending on the shaft size and pressure.
The hardware is made from materials such as SS-316, SS-304, Hast-C, and Monel Alloy-20, while the face material consists of Carbon Ceramic (99.5%) SIC and T.C.
The secondary seals can be made from Viton, EPDM, Silicon, EPR, or Kalrez.
Yes, the GSS-140 seal is designed for various industrial applications, including petrochemicals, general chemicals, dirty water, slurry, and petroleum refineries.
This seal is mounted internally and is driven by the clutch.
The drive ring and drive collar are integral components that assist in the reliable operation of the seal, particularly if the spring becomes clogged.
The GSS-140 seal features a custom design as an unbalanced single coil spring seal.
Industries such as petrochemicals, general chemicals, and petroleum refineries can benefit from using the GSS-140 seal due to its wide application range.
The GSS-140 seal requires internal mounting and should be installed following appropriate guidelines to ensure optimal performance.
