FTDI Chip Female DB9 Format RS232 to USB 2.0 Converter Module with FTDI FT232R DB9-USB-F

Free Delivery in India | Lowest Global Shipping Charges

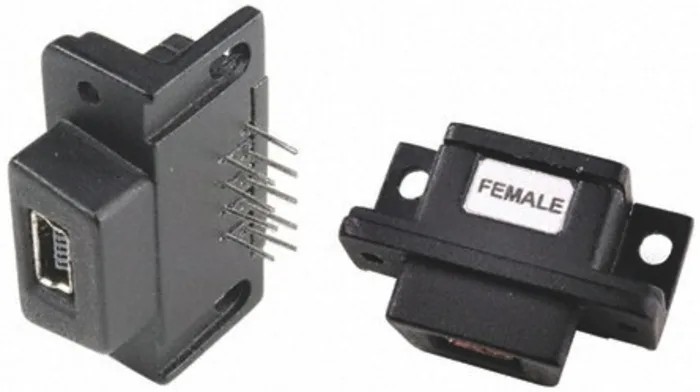

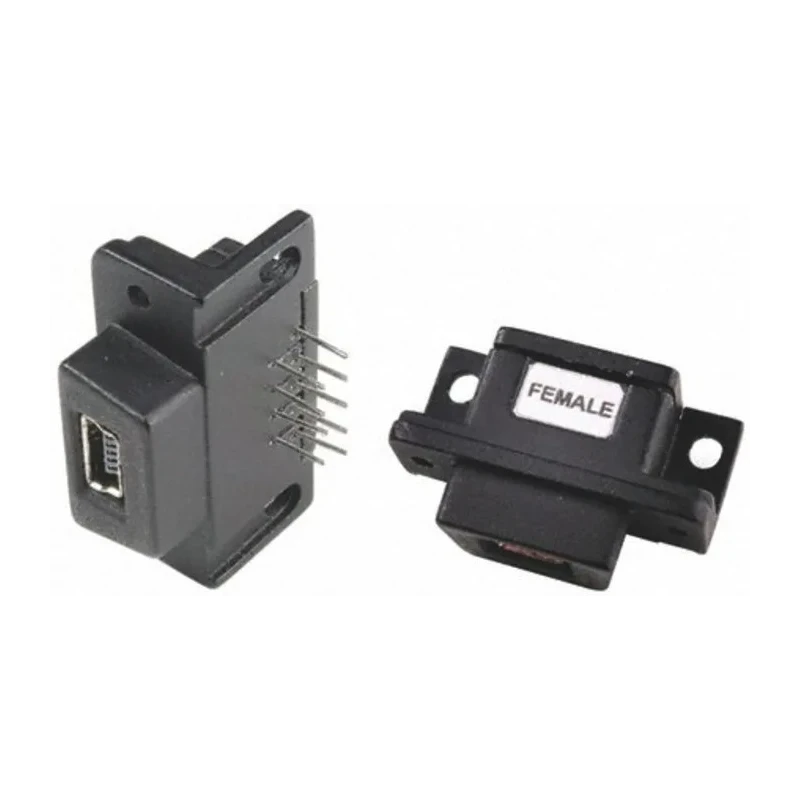

FTDI Chip Female DB9 Format RS232 to USB 2.0 Converter Module with FTDI FT232R DB9-USB-F

Name: FTDI Chip Female DB9 Format RS232 to USB 2.0 Converter Module with FTDI FT232R DB9-USB-F
Brand: FTDI Chip
SKU: 219542
Price: 2.61 USD
Availability: InStock



Category Converter Module Brand FTDI Chip Condition New

Specifications

Country of Origin	China
Brand	FTDI Chip
Model	DB9-USB-F
Technology	RS232 level shifter, USB to Serial
Flow Control	RTS/CTS , DSR/DTR, X-ON/ X-OFF, none
Parity	none, even, odd
Interfaces	USB 1
Interface Type	USB 2.0, UART, RS232
For Use With	RS232 port
Standards/Approvals	FCC Part 15 Subpart B, DecaBDE, Microsoft Windows WHQL, REACH, PFOS, European EMC Directive, WEEE, RoHS
Kit Classification	Converter Module
Featured Device	FTDI FT232R
Kit Name	Female DB9 Format

Key Features

Compatible with female DB9 RS232 port footprint for easy PCB replacement.
Supports RS232, 3.3V, and 5V UART signal levels.
Works with USB 1.1 and 2.0 host and hub ports for wide compatibility.
Certified drivers for Microsoft Windows WHQL, Mac OS X, Linux, and Windows CE.
Supports UART signals including TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, and GND.
Powered directly via USB, no external power needed.
Serial port speed up to 1 Mbps (RS232) or up to 3 Mbps (UART levels).
Operating temperature range from -40°C to 85°C ensures industrial reliability.

Product Description

FTDI Chip DB9-USB-F is a high-speed converter module designed for embedded development and electronics laboratories that require upgrading RS232 serial ports to USB 2.0 interfaces without PCB redesign.

This active converter module incorporates the FTDI FT232R chipset and fits into a standard female DB9 RS232 footprint, providing USB to serial UART translation with support for multiple UART signal levels (RS232, 3.3V, 5V).

It supports USB 1.1 and 2.0 hosts and hubs, providing broad compatibility with modern systems. Certified drivers for platforms including Microsoft Windows (WHQL certified), Mac OS X, Linux, and Windows CE enable easy deployment in diverse environments.

Interface signals supported include transmit (TxD), receive (RxD), and various control signals (RTS, CTS, DSR, DTR, DCD, RI, GND), powered solely by the USB bus, eliminating the need for external power supplies. The module can handle serial communication speeds up to 1 Mbps at RS232 levels or up to 3 Mbps when using 3.3V or 5V UART signal levels.

Communication parameters are configurable, with support for parity modes (none, even, odd), data bits (7 or 8), and several flow control options such as RTS/CTS, DSR/DTR, X-ON/X-OFF, or none, suited for robust industrial and laboratory applications.

Operating reliably over a wide temperature range from -40°C to 85°C, this Converter Module is ideal for embedded development, robotics, automation, educational institutions, and electronics laboratories.

Compatible with female DB9 RS232 footprint for easy hardware replacement. Multiple UART voltage levels enable flexible integration. Broad USB interface compatibility with certified drivers. Full UART signal set supported for comprehensive communication.

Bus-powered operation simplifies installation and reduces external components. High-speed serial communication up to 1 Mbps or 3 Mbps depending on signal levels. Configurable serial communication parameters and multiple flow control options.

Robust temperature tolerance suitable for industrial environments. Choose from the broad range of communication and wireless development tools at EnvMart for your embedded system requirements.
