Hollow Fibre Membrane 56 Cassettes HFMBR -IADO6-56
Specifications
| Operating Temperature | 5-40 degree C |
|---|---|

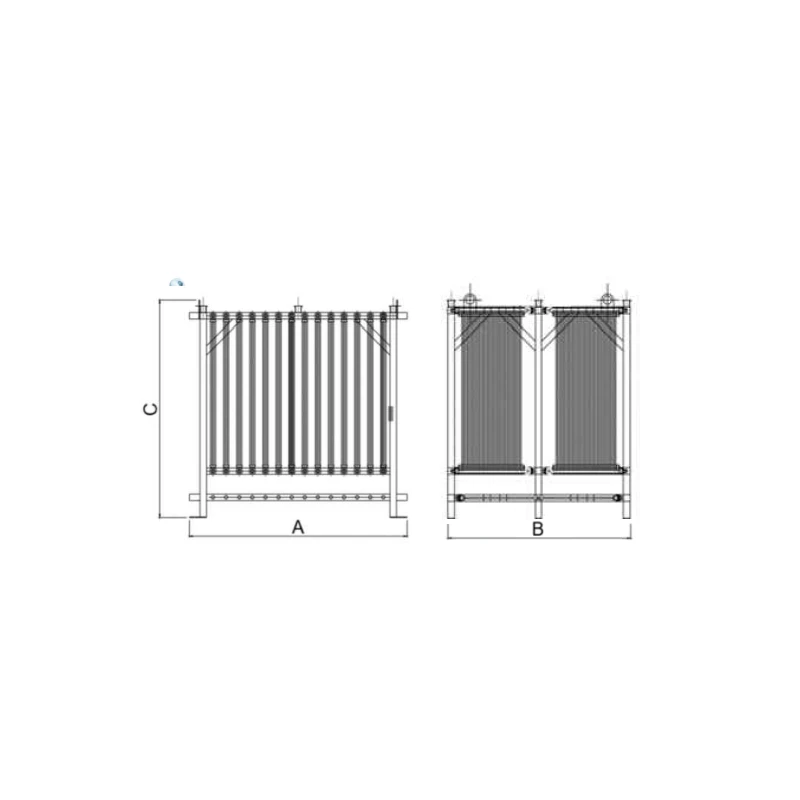

| Height | 1260 mm |
| Length | 3060 mm |
| pH Range | 45540 |
| Model | HFMBR -IADO6-56 |
| Width | 1360 mm |
| Max. pressure drop | 200 Mbar |
| Operating Trans. Pressure | 100-300 Mbar |
| Effective Membrane Area | 336 M2 |
| Operating Mode (Permeate-Relaxation) | 08-02 Min |
| Maximum Backwash pressure | 2000 Mbar |
| Max TMP | 400 Mbar |
| Wt. of Module (Kg.) | 317.8 Kg |
| Air Nozzle | DN 50 x 2 |
| Guide Pipe | DN 65 |
| Linear Velocity (75m/s) min Aeration m3/hr | 120.96 |
| Linear Velocity (125m/s) Standard Aeration m3/hr | 201.6 |
| Linear Velocity (150m/s) Max Aeration m3/hr | 241.92 |
| Permeate Nozzle | DN 50 x 2 |
| No. of Cassettes | 56 |
| MOC of Frame | SS-304/SS316 |
| Membrane Mterial | Rainforced PVDF |
Key Features
- Permanently hydrophilic
- Backwashable Membrane
- High chlorine tolerance
Product Description

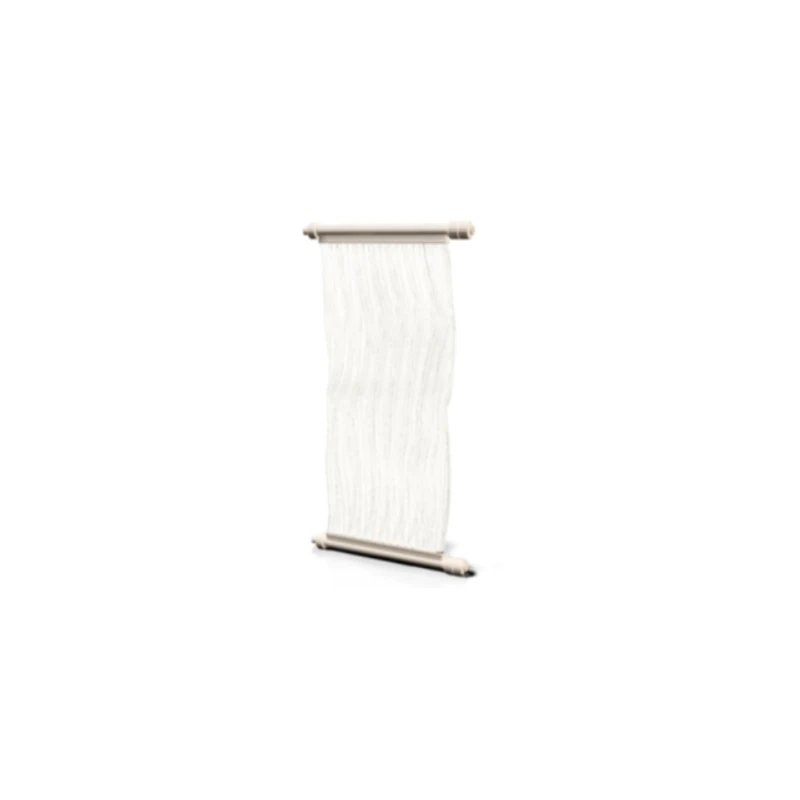

Hollow Fibre Membrane 56 Cassettes (HFMBR -IADO6-56), is a high-quality reinforced Hollow Fibre MBR membrane optimized for small tolarge flux wastewater treatment plants.Structured with PVDF (permanently hydrophilic polyvinyl difluoride) has the advantage of dry storage.HFMBR PVDF Series membranes can be used for a wide variety of treatment applications such as industrialand domestic wastewater
- High Packing Density
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective membrane area of the Hollow Fibre Membrane 56 Cassettes (HFMBR -IADO6-56) is 336 m².
The maximum operating temperature for the HFMBR -IADO6-56 is 40 degrees Celsius.
This membrane can operate within a pH range of 4.5 to 5.4.
The Hollow Fibre Membrane 56 Cassettes system includes 56 cassettes.
The maximum pressure drop for the HFMBR -IADO6-56 is 200 mbar.
The weight of the module for this model is 317.8 kg.
The frame of the Hollow Fibre Membrane 56 Cassettes is made from SS-304/SS316.
The maximum transmembrane pressure (TMP) for the HFMBR -IADO6-56 is 400 mbar.
The linear velocities for aeration are 120.96 m³/hr at 75 m/s, 201.6 m³/hr at 125 m/s, and 241.92 m³/hr at 150 m/s.
The maximum backwash pressure for the Hollow Fibre Membrane 56 Cassettes is 2000 mbar.
The operating transmembrane pressure range for the HFMBR -IADO6-56 is between 100 to 300 mbar.
The operating temperature range for the Hollow Fibre Membrane 56 Cassettes is from 5 to 40 degrees Celsius.
