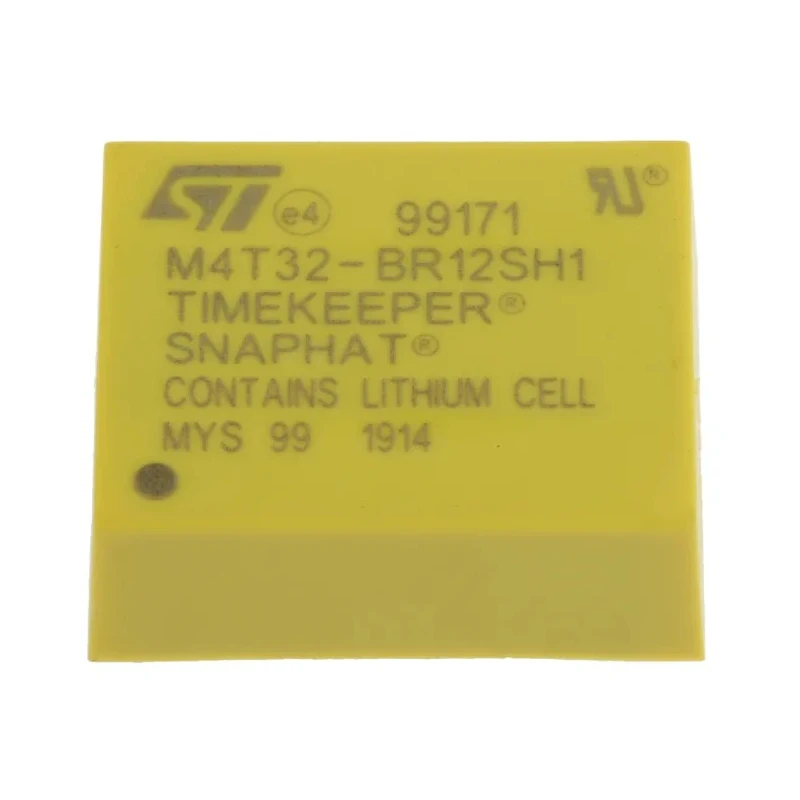

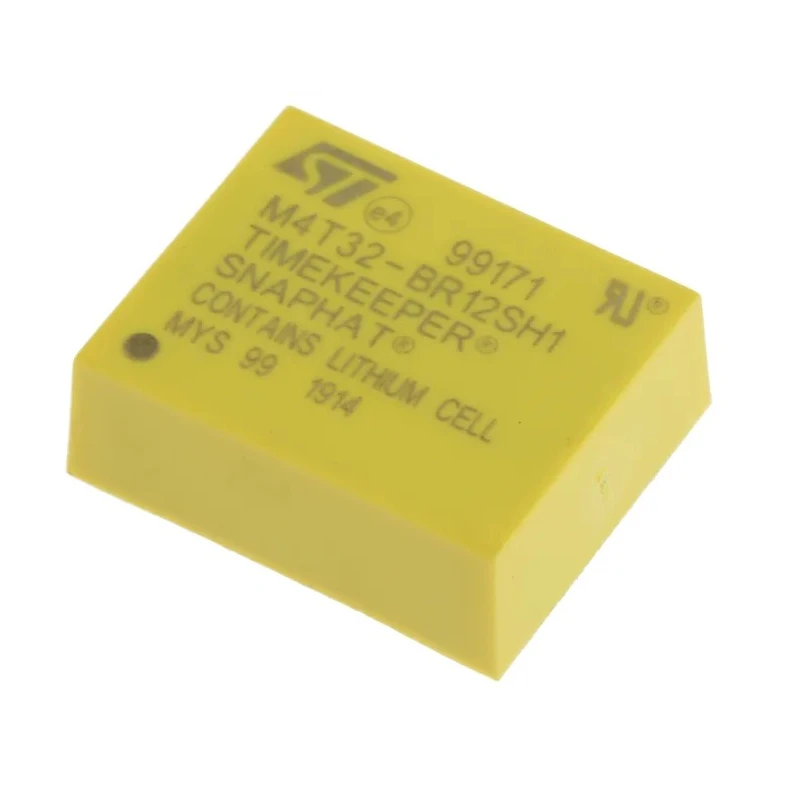

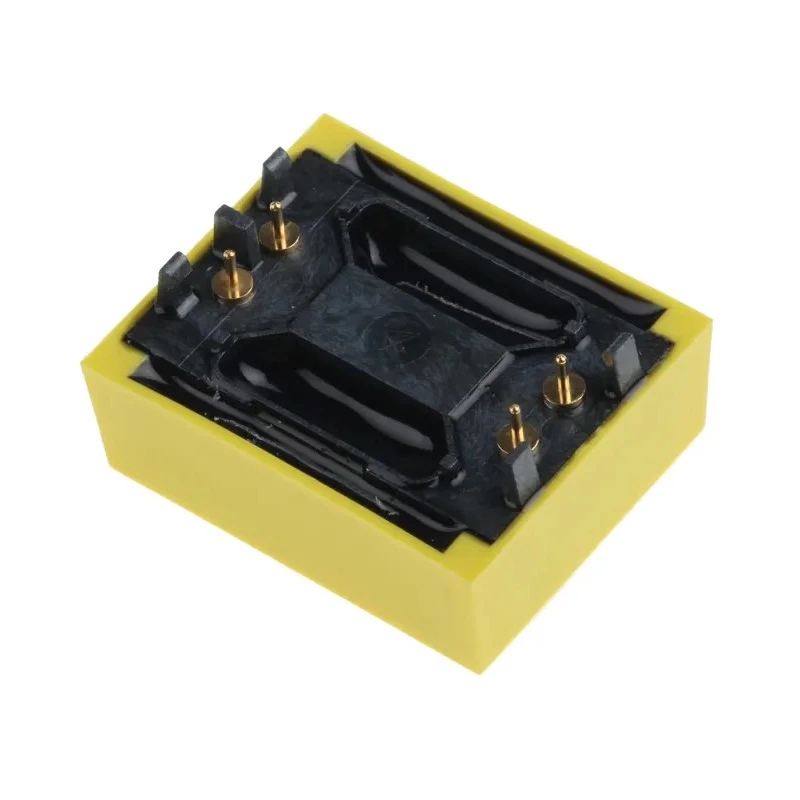

STMicroelectronics Battery Backup IC Lithium Carbon Monofluoride Through Hole SNAPHAT 4-Pin 2.8 V M4T32-BR12SH1

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Battery Backup IC Lithium Carbon Monofluoride Through Hole SNAPHAT 4-Pin 2.8 V M4T32-BR12SH1

Name: STMicroelectronics Battery Backup IC Lithium Carbon Monofluoride Through Hole SNAPHAT 4-Pin 2.8 V M4T32-BR12SH1
Brand: STMicroelectronics
SKU: 219279



Category Battery Management IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Battery type	Lithium Carbon Monofluoride
Height	6.99mm
Length	21.84mm
Model	M4T32-BR12SH1
Mount Type	Through Hole
Series	M4T32-BR12SH
Maximum Operating Temperature	70°C
Package Type	SNAPHAT
Sub Type	Battery Backup IC
Minimum Operating Temperature	0°C
Pin Count	4
Minimum Supply Voltage	2.8V

Key Features

Designed specifically for battery backup applications with Lithium Carbon Monofluoride chemistry.
Features a SNAPHAT package type ensuring easy snap-on attachment on PCB-mounted ICs.
Operates within a temperature range of 0°C to 70°C for reliable performance.
Compact dimensions with length 21.84 mm and height 6.99 mm to suit space-constrained designs.
Pin count includes 4 pins facilitating secure electrical connections.
Compatible with TIMEKEEPER® non-volatile packages from STMicroelectronics.
Suitable for industrial, electronic, and power management applications requiring long-life backup solutions.

Product Description

STMicroelectronics M4T32-BR12SH1 is a battery backup IC utilizing Lithium Carbon Monofluoride cell technology, featuring a SNAPHAT 4-pin through-hole package. It operates at a supply voltage of 2.8 V, making it ideal for applications demanding reliable power backup within its operating temperature range of 0°C to 70°C.

The SNAPHAT package design enables the battery and crystal to be detached but easily snapped on the top of surface-mounted ICs on printed circuit boards, facilitating simple assembly and replacement. This product is compatible with STMicroelectronics' TIMEKEEPER® non-volatile packages, enhancing its versatility.

With compact dimensions measuring 21.84 mm in length and 6.99 mm in height, the device fits well into various industrial and consumer electronics requiring stable backup power solutions. Its four-pin configuration ensures robust electrical connectivity.

Typical use cases include industrial equipment, power management ICs in semiconductor applications, and electronics requiring long-lasting battery backup to maintain clock functions or memory during power interruptions.

Designed for dependable battery backup applications. Lithium Carbon Monofluoride battery type ensures longevity and stable voltage. Through hole mount type for secure PCB integration. Operating temperature range from 0°C to 70°C for diverse environments.

Compact SNAPHAT package for easy installation and replacement. Compatible with TIMEKEEPER® non-volatile packages. Four-pin design for reliable electrical interfacing. Explore other power management ICs and battery backup solutions on EnvMart to enhance your electronics designs with trusted semiconductor products.

Explore more products in our Battery Management IC category.
