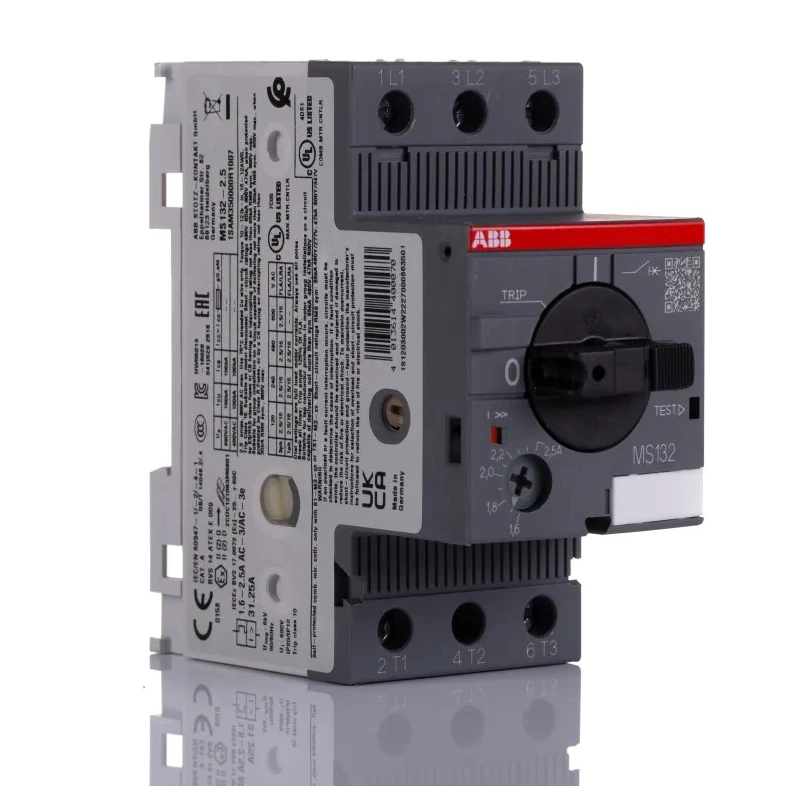

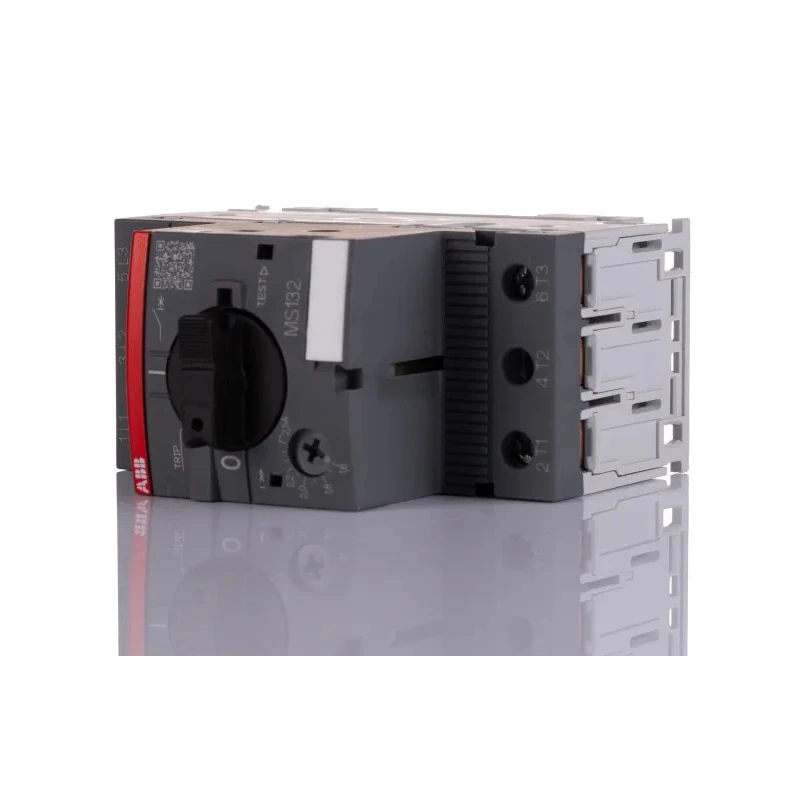

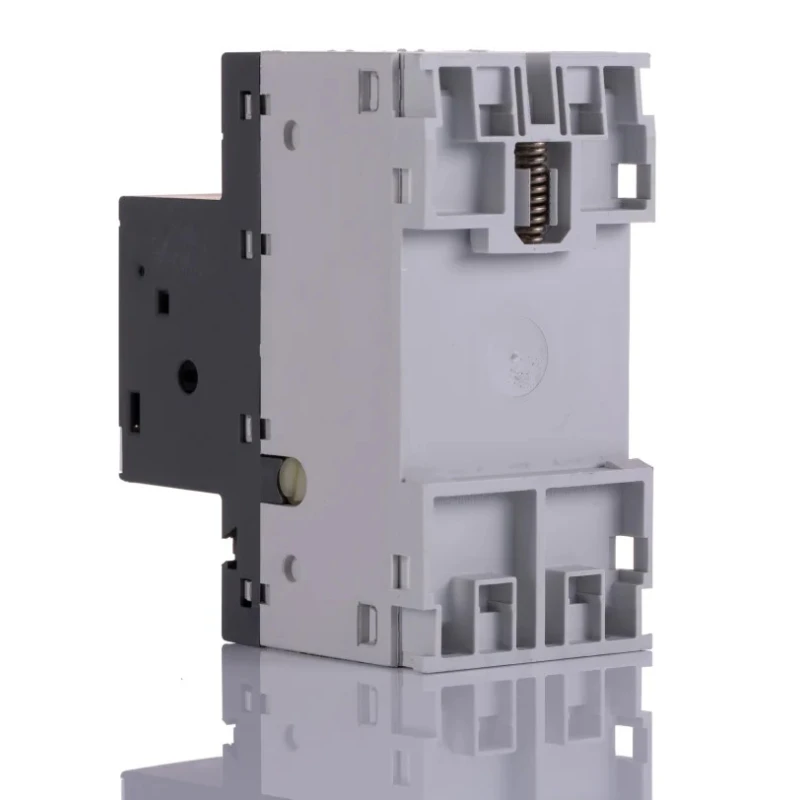

ABB 3 Pole Motor Protection Circuit Breaker MS132 Series 1.6-2.5A Current Rating 600V 70°C Operating Temp MS132



Category Motor Protection Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Model	MS132
IP Rating	IP10, IP20
Overall Length	90mm
Current Rating	1.6, 2.5A
Series	MS132
Overall Width	45mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-25°C
Sensing type	Current
Supply Voltage	600V
Number of Poles	3
Overall Depth	81.25mm
Motor Protection Component	Circuit Breaker
Motor Protection System	Motor Protection Circuit Breaker

Key Features

The device features three protective poles suitable for both single-phase and three-phase power supplies.
It supports an operating temperature range from -25°C to 70°C ensuring reliable performance under varied conditions.
Mounts easily on standard DIN rails for secure and efficient installation.
Highly durable with an electrical lifespan of up to 50,000 cycles and mechanical lifespan of 100,000 cycles.
Incorporates a lockable rotary switch to prevent unauthorized tampering for enhanced safety.
Front panel clearly indicates status for quick diagnostics and troubleshooting.
Rated for short-circuit protection up to 100kA to protect motor circuits effectively.
Constructed with IP10 and IP20 ratings providing protection against solid objects but limited protection from liquids.

Product Description

ABB MS132 Motor Protection Circuit Breaker series offers reliable motor protection with a current sensing range of 1.6 to 2.5 amps and a supply voltage of 600V, designed to safeguard motor-driven industrial equipment.

This circuit breaker is equipped with three poles accommodating common industrial single-phase and three-phase power configurations. It functions efficiently in operating temperatures between -25°C and 70°C, making it suitable for diverse industrial environments such as HVAC systems, milling machines, water treatment plants, and packing equipment.

The MS132 series features energy-efficient operation with power loss ranging from 0.7W to 1.8W and includes a tamper-proof lockable rotary switch enhancing operational safety. Installation is streamlined with compatibility for industry-standard DIN rail mounting.

The device withstands short circuit events up to 100kA, providing robust protection and minimizing potential damage to motor circuits. Its clear front panel status indicators enable fast and effective troubleshooting to reduce downtime.

Three protective poles for versatile industrial motor applications. Adjustable current rating between 1.6 and 2.5 amps for tailored protection. Durable electrical service life rated at 50,000 operational cycles. Lockable rotary switch ensures tamper-resistant operation.

Compliance with CCC, CE, CSA, cUL, IEC, EN, and UL standards.

Manufactured in Germany, the ABB MS132 series combines stringent quality controls with excellent performance guarantees. It is ideally suited for demanding industrial environments requiring precise motor protection and control.
