ABB Auxiliary Contact 2 Contact 1 NO 1 NC Side Mount 6 A 600 V DC 690 V AC CAL4-11 1SBN010120R1011 CAL4-11

Free Delivery in India | Lowest Global Shipping Charges

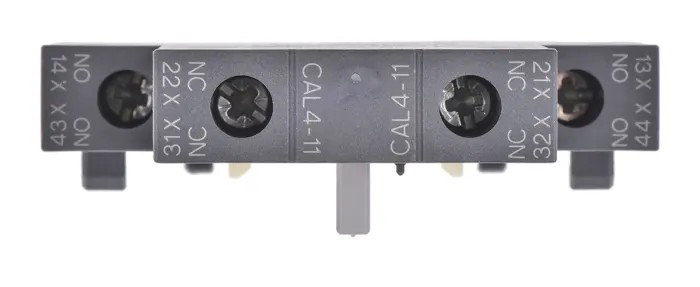

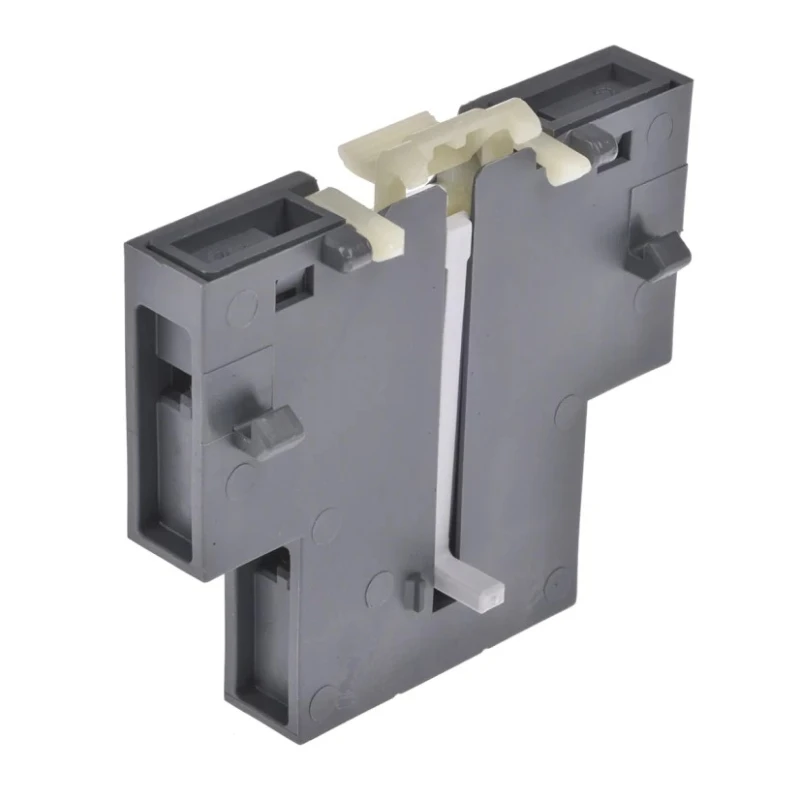

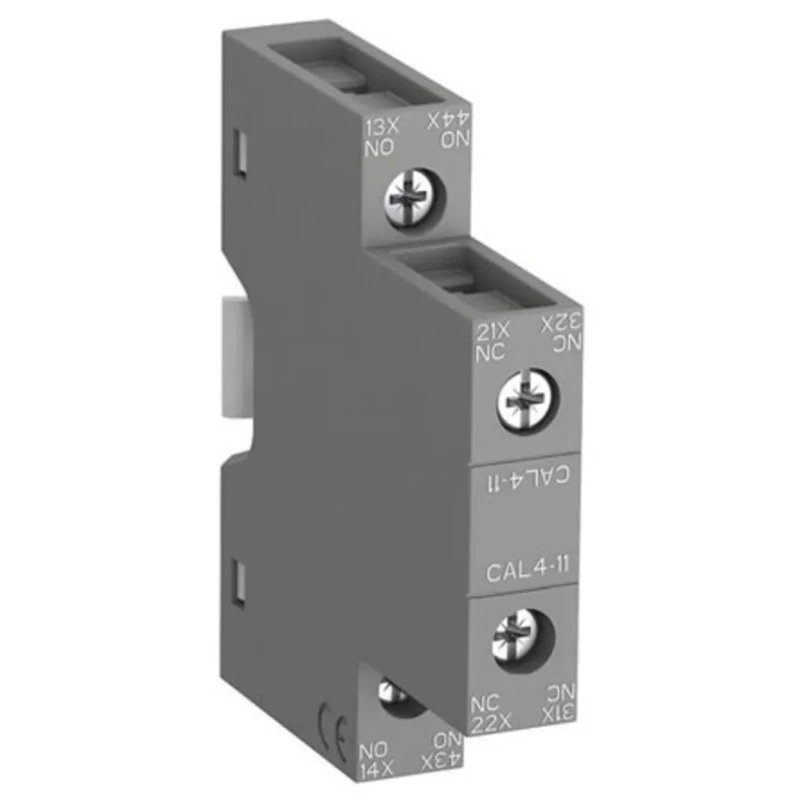

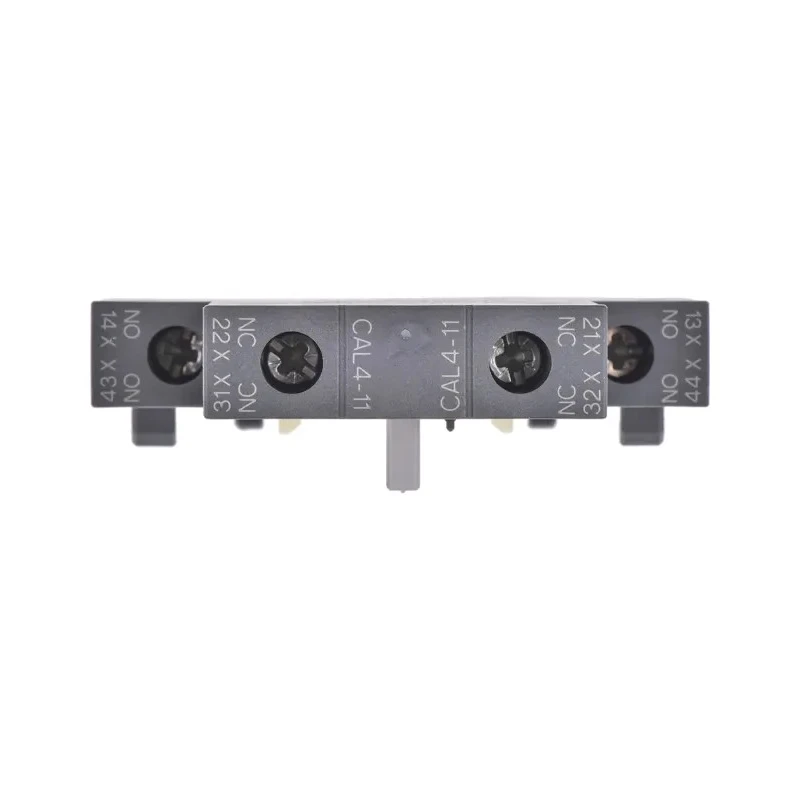

ABB Auxiliary Contact 2 Contact 1 NO 1 NC Side Mount 6 A 600 V DC 690 V AC CAL4-11 1SBN010120R1011 CAL4-11



Category Auxiliary Contacts Brand ABB Condition New

Specifications

Country of Origin	Czech Republic
Brand	ABB
Model	CAL4-11
Mount Type	Side
Series	CAL4-11
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Mounting Location	Side Mounting
Number of Contacts	2
Contact Voltage	600, 690V dc
Normal State Configuration	1 NO/1 NC
Contact Current	6A
Operational Current Ie	6A
Pole and Throw Configuration	2P
Mechanical Durability	10Mcycles
Rated Insulation Voltage Ui	690V

Key Features

Compact size fitting 60 mm length, 12 mm width, and 69.4 mm height dimensions.
Robust plastic casing provides touch-proof safety against electric shock.
Wide operating temperature range from -40°C to +70°C ensures reliable performance in harsh environments.
Mechanical durability rated at 10 million cycles for long operational life.
Screw terminal type ensures secure wiring connections.
Rated insulation voltage of 690 V and impulse withstand voltage of 6 kV for industrial safety.
Suitable for industrial automation, medical devices, and commercial network applications.
Mechanical construction supports maximum switching frequency of 3600 cycles per hour.

Product Description

ABB CAL4-11 auxiliary contact (model 1SBN010120R1011 CAL4-11) is a side-mount auxiliary contact designed for industrial automation and control applications where reliable switching feedback is required. It features two contacts configured as 1 normally open (NO) and 1 normally closed (NC) to provide accurate circuit status signals to controllers and relays.

This auxiliary contact supports a contact current rating of 6 A and operates at voltages up to 600 V DC and 690 V AC with a rated insulation voltage of 690 V. Its compact form factor, measuring 60 mm by 12 mm by 69.4 mm, permits installation in confined spaces typical of industrial control panels.

The device is housed in a durable plastic casing that is touch-proof, preventing accidental electrical shocks during handling or maintenance. The screw terminal design allows for easy and secure electrical connections.

Operating reliably in a temperature range from -40°C to +70°C, this auxiliary contact is engineered to withstand demanding industrial conditions. It provides a mechanical durability of 10 million operating cycles and supports switching frequencies up to 3600 cycles per hour, ensuring long service life and minimal downtime.

This product is suitable for various industrial uses including automation processes, medical equipment interface, and commercial network installations requiring high reliability and safety compliance. Manufactured in the Czech Republic, it meets industrial quality standards though no specific certifications are indicated.

Compact and space-saving dimensions suitable for tight installations. Touch-proof housing enhances operator safety. Wide operating temperature range guarantees performance in diverse environments. High mechanical durability extends product lifespan.

Screw terminals simplify installation and wiring security. Rated for both DC and AC voltages up to 690 V providing versatile applications. Supports industrial automation, medical, and commercial network applications. Manufactured in Czech Republic ensuring quality build.
