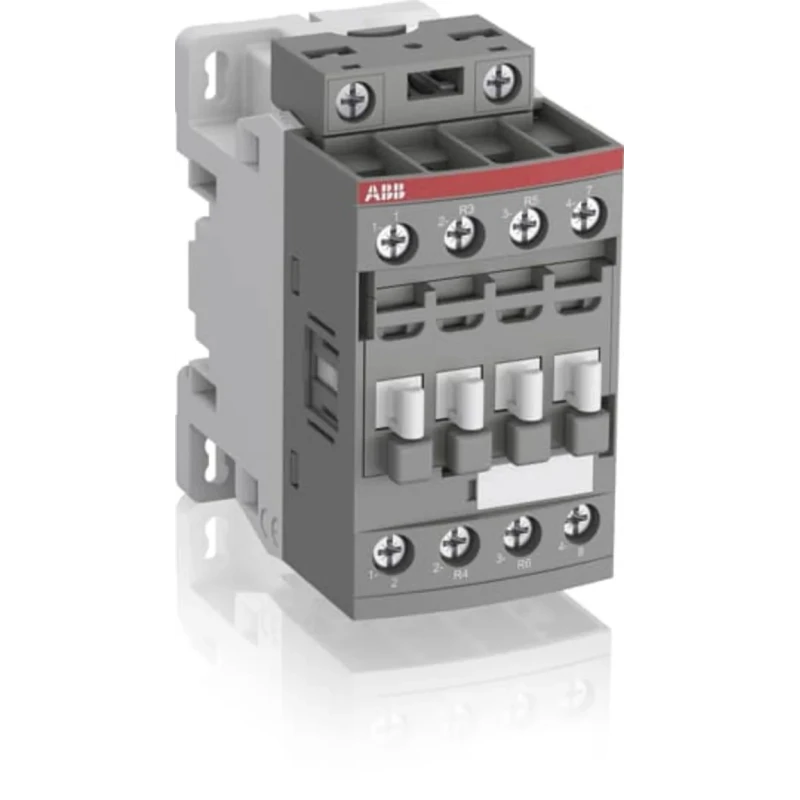

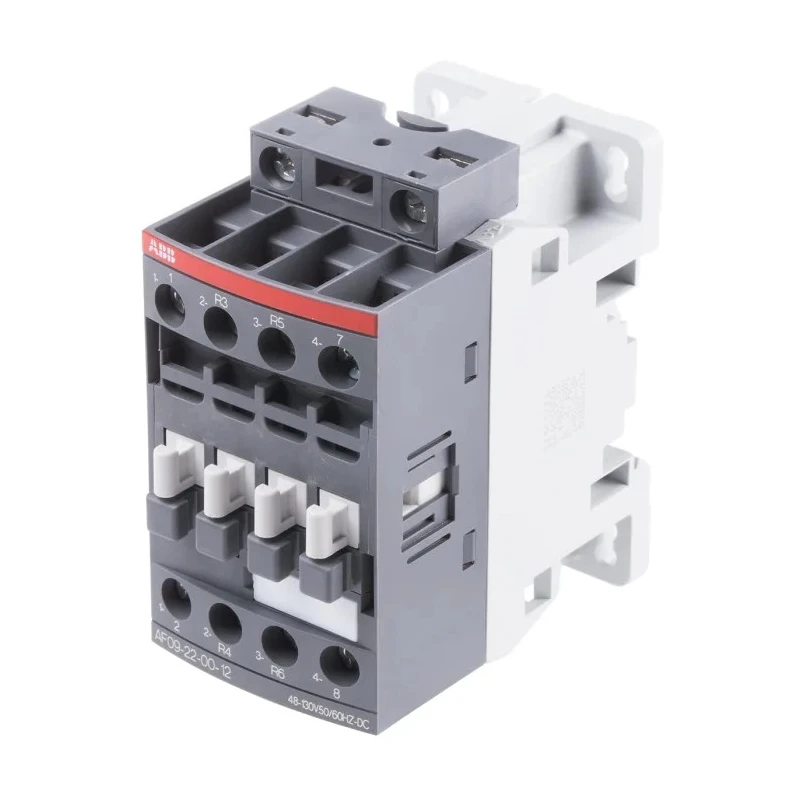

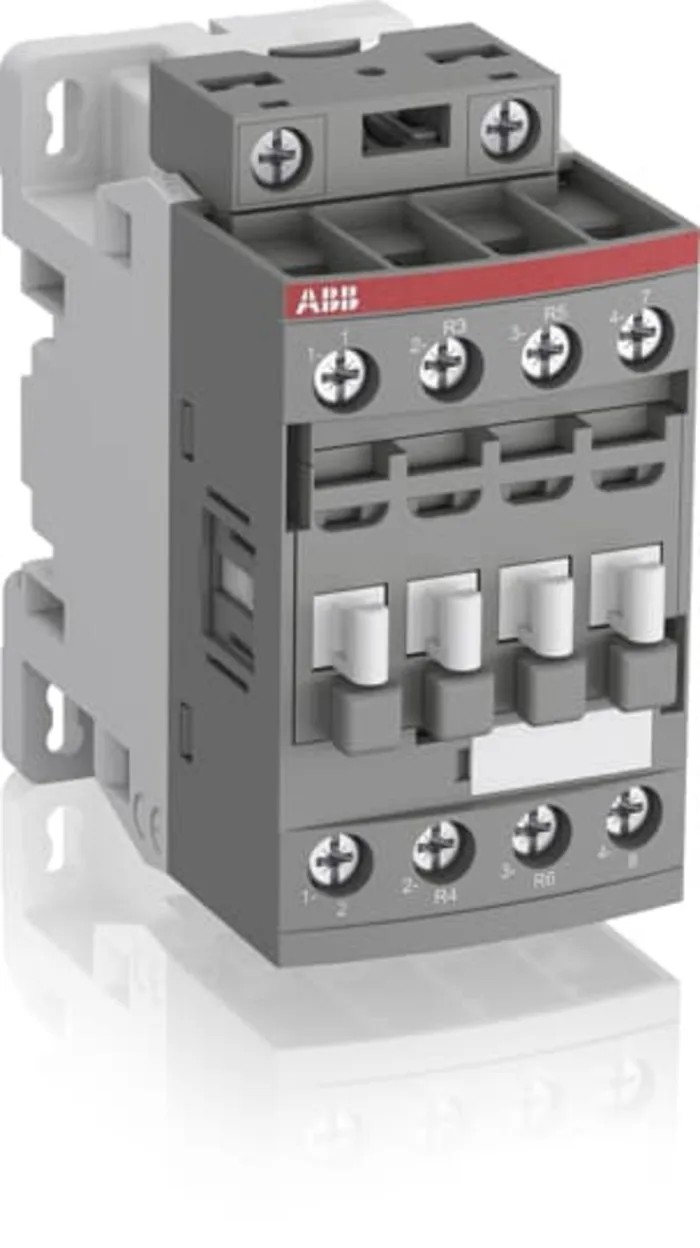

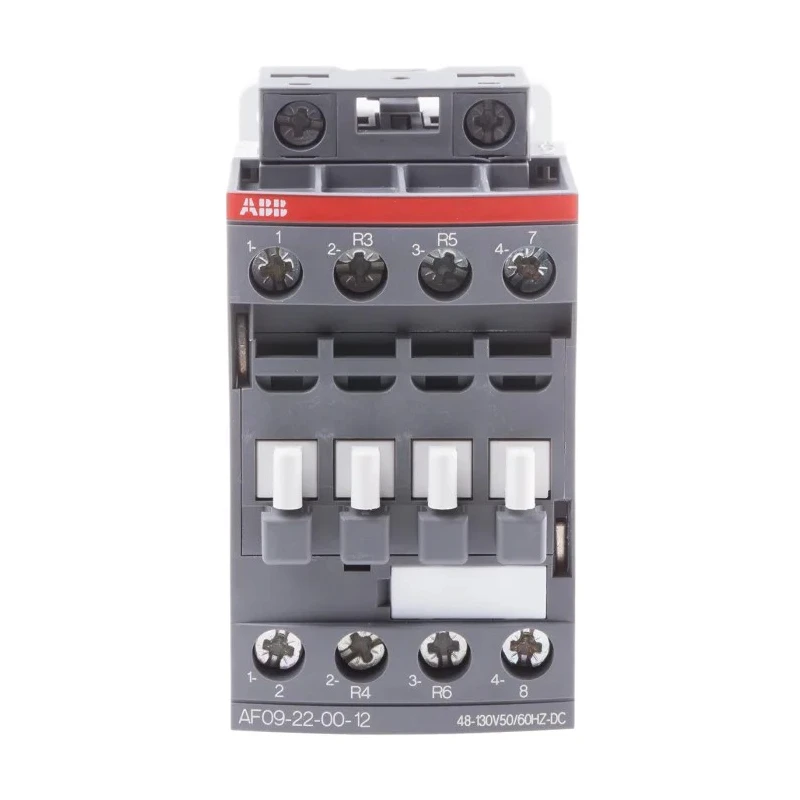

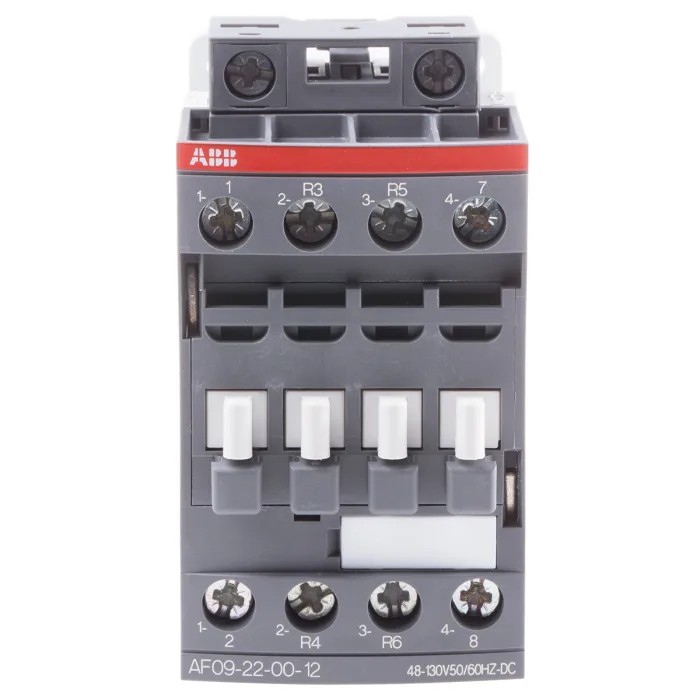

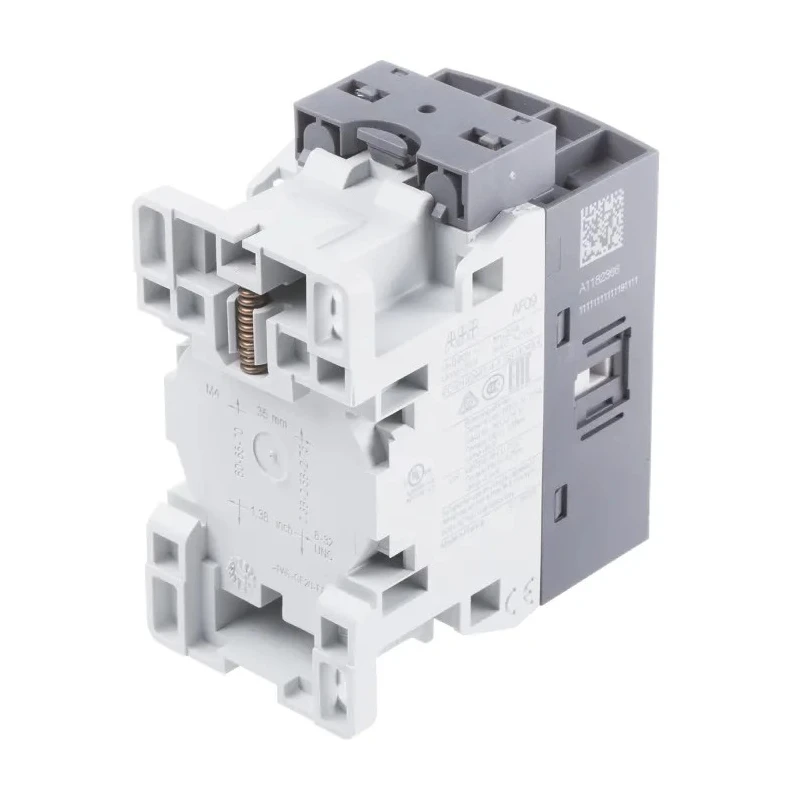

ABB AF09 Contactor, 110V AC/DC Coil, 4-Pole, 25 A, 4 kW Power Rating, 130V Control Circuit, 2 NO/2 NC, 690V AC AF09



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF09
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF09
Power Rating	4kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	110V ac/dc
Normal State Configuration	2 NO/2 NC
Contact Current	25A
Auxiliary Contact Configuration	2 NO/2 NC
Operational Current Ie	30A
Control Circuit Voltage Uc	130V
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

The 2 NO/2 NC contact configuration offers flexible circuit control.
Screw terminal type enables easy installation and maintenance.
Rated for contact voltage up to 690V AC suitable for high voltage operations.
Compatible with control circuit voltage of 130V for precise motor control.
DIN rail mount type for convenient integration in control panels.
Designed to operate in temperatures ranging from -40°C to 70°C.
Meets IEC 60947-4-1 standards ensuring reliable industrial performance.
Compact dimensions of 80mm length, 45mm width, and 77mm depth.

Product Description

ABB AF09 Contactor with model AF09 and coil voltage 110V AC/DC is a 4-pole electrical control device optimized for motor control applications. It supports contact currents up to 25 amperes and a power rating of 4 kW, making it suitable for various industrial automation tasks.

This contactor features a 2 Normally Open (NO) and 2 Normally Closed (NC) auxiliary contact configuration, allowing flexible circuit control in automation and control gear systems. The screw terminal type facilitates simple installation and ease of maintenance.

Rated for 690V AC contact voltage, this contactor is well suited for high voltage applications in manufacturing, processing plants, and other industrial environments. The control circuit voltage of 130V enhances compatibility with multiple control systems.

Designed to mount on a standard DIN rail, the contactor has compact dimensions of 80mm length, 45mm width, and 77mm depth, providing space-efficient integration into electrical panels. It operates reliably within a temperature range from -40°C to 70°C, making it durable under various environmental conditions.

The product conforms to IEC 60947-4-1 standards, confirming its compliance with stringent industrial safety and quality norms. With an operational current Ie rating of 30A, it assures robust performance for switching tasks in automation and control systems.

The 2 NO/2 NC contact setup delivers adaptable circuit control functionality. Screw-type terminals ensure secure and straightforward connections. Supports high voltage operations up to 690V AC contact voltage. Suitable for motor control applications in industrial automation.

Compact DIN rail mount design for easy panel integration. Wide operating temperature range from -40°C to 70°C caters to diverse environments. Compliance with IEC 60947-4-1 for assured safety and reliability. Durable construction with precise control at 130V coil voltage.

Robust 4 kW power rating for diverse industrial motors.

This contactor is ideal for use in industrial manufacturing plants, automation systems, and electrical motor control applications requiring reliable switching at high voltages and currents. Discover more quality Contactors and automation components to enhance your industrial control setups at EnvMart.
