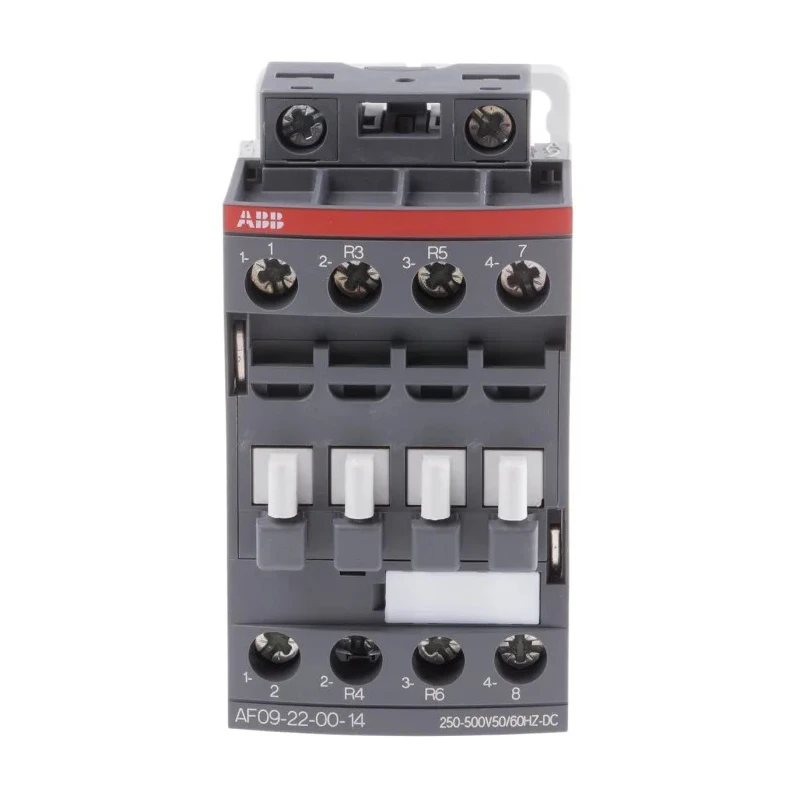

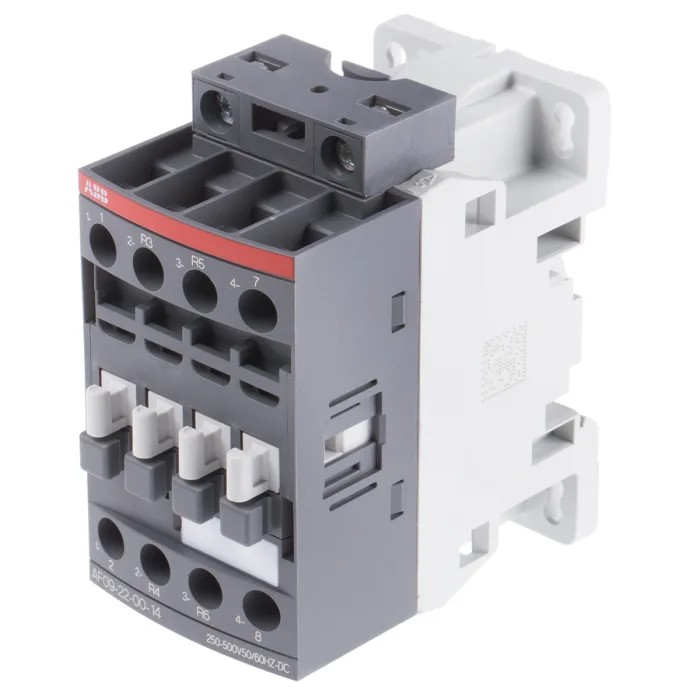

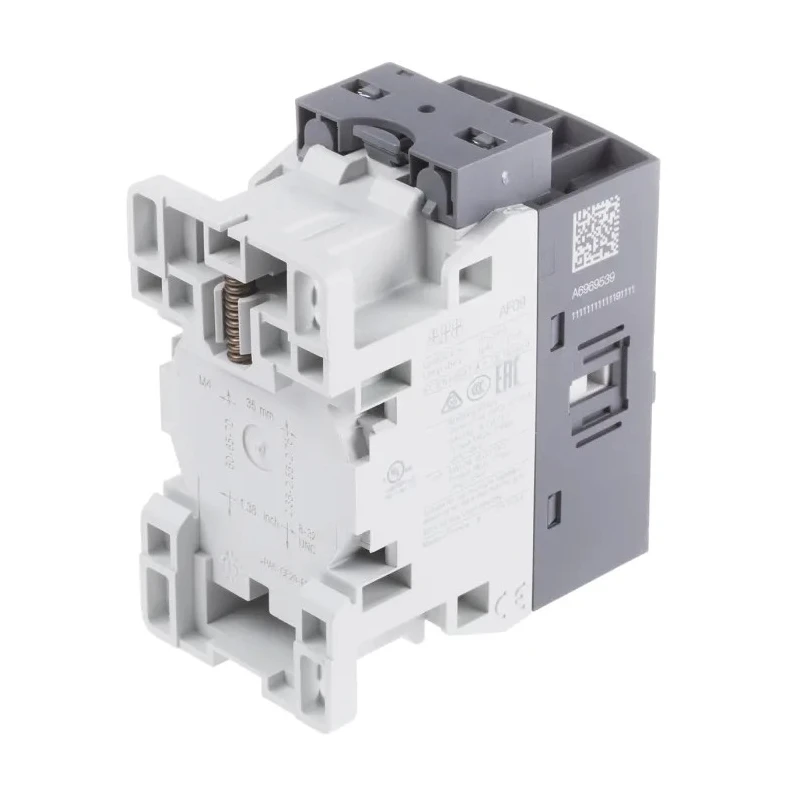

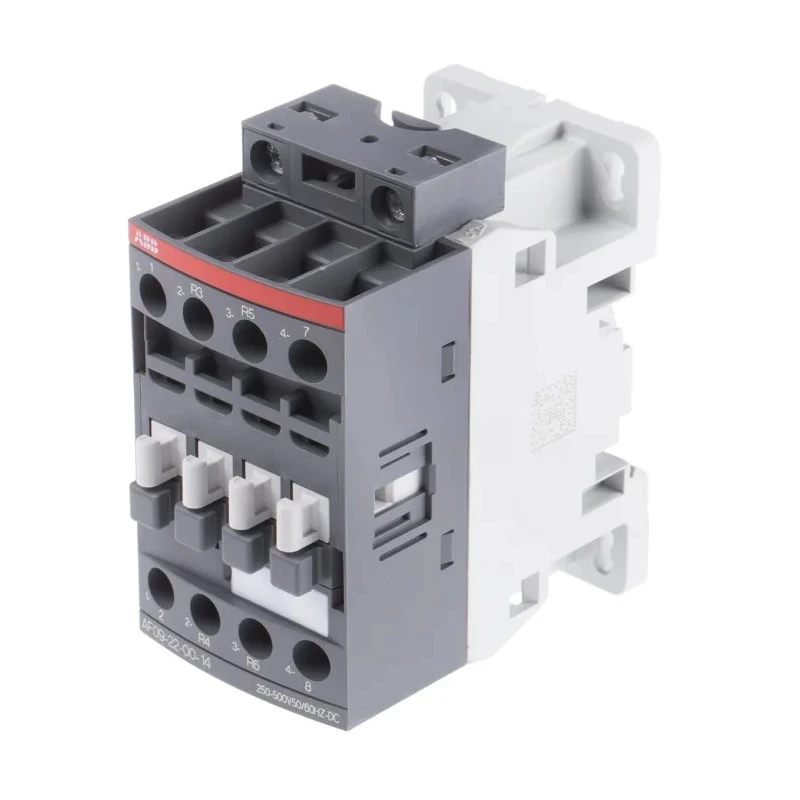

ABB AF09 4-Pole Contactor 25 A, 4 kW Power Rating, 250-500 V AC/DC Coil Voltage, 690 V AC Contact Voltage AF09



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF09
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF09
Power Rating	4kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	250, 500V ac/dc
Normal State Configuration	2 NO/2 NC
Contact Current	25A
Operational Current Ie	25A
Control Circuit Voltage Uc	500V ac/dc
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

Operates on a coil voltage range of 250 to 500 V AC/DC for versatile applications.
Supports contact voltage of up to 690 V AC ensuring robust switching performance.
Equipped with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts for comprehensive control configurations.
Compact DIN rail mounting enables easy and secure installation in electrical panels.
Screw terminal type facilitates reliable and straightforward wiring connections.
Wide operating temperature range from -40°C to 70°C ensures functionality in harsh environments.
Adheres to IEC 60947-4-1 standards for safety and performance compliance.
4-pole design allows effective motor control for three-phase systems in various industries.

Product Description

ABB AF09 4-Pole Contactor is engineered for industrial motor control applications, offering a dependable solution with a coil voltage range of 250 to 500 V AC/DC and a contact voltage capacity of 690 V AC. This model supports a contact current of 25 A and a power rating of 4 kW, enabling efficient handling of motor start and stop operations in demanding environments.

The contactor features a 4-pole configuration with 2 Normally Open (NO) and 2 Normally Closed (NC) contacts, providing versatile circuit control options. Its compact design allows mounting on standard DIN rails, simplifying installation in control cabinets.

Equipped with screw terminals, the AF09 ensures secure and straightforward wiring connections, accommodating conductors ranging from 0.75 mm² to 6 mm². Its operational temperature range from -40°C to 70°C makes it reliable under extreme environmental conditions.

Compliance with IEC 60947-4-1 standards guarantees that the contactor meets stringent international safety and performance requirements. The robust build and built-in surge protection improve operational reliability, making this contactor suitable for industrial, manufacturing, HVAC, and water treatment system control.

This device is ideal for controlling three-phase motors in machinery, supporting motor start/stop tasks across diverse industrial sectors. Its versatile coil voltage range accommodates both AC and DC power sources, enhancing flexibility in system integration.

Operates on coil voltage range: 250 to 500 V AC/DC. Contact voltage capacity: 690 V AC with 25 A current rating. 4-pole configuration with 2 NO and 2 NC contacts. DIN rail mount type for easy installation. Screw terminal type ensuring secure electrical connections.

Wide operating temperature range: -40°C to +70°C. Complies with IEC 60947-4-1 standards. Suitable for industrial motor control applications. Explore the full range of ABB Contactors and automation control gear on EnvMart for reliable industrial electrical components.
