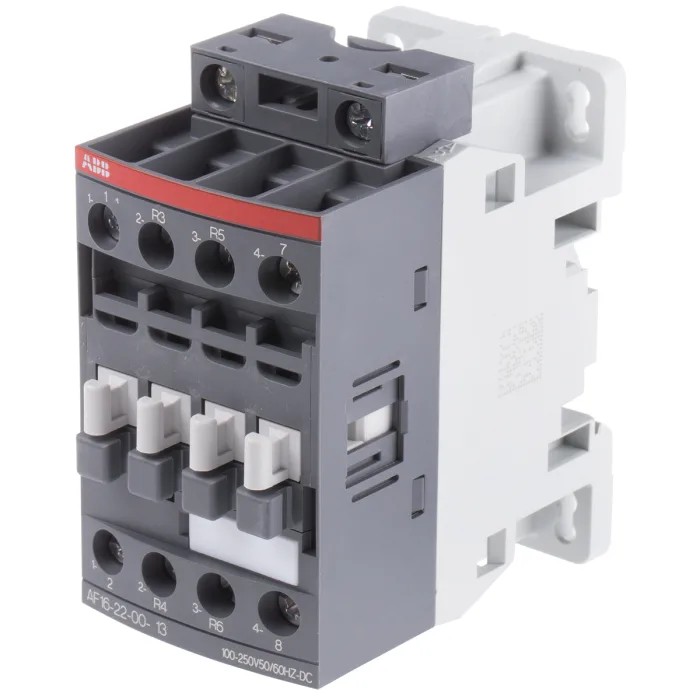

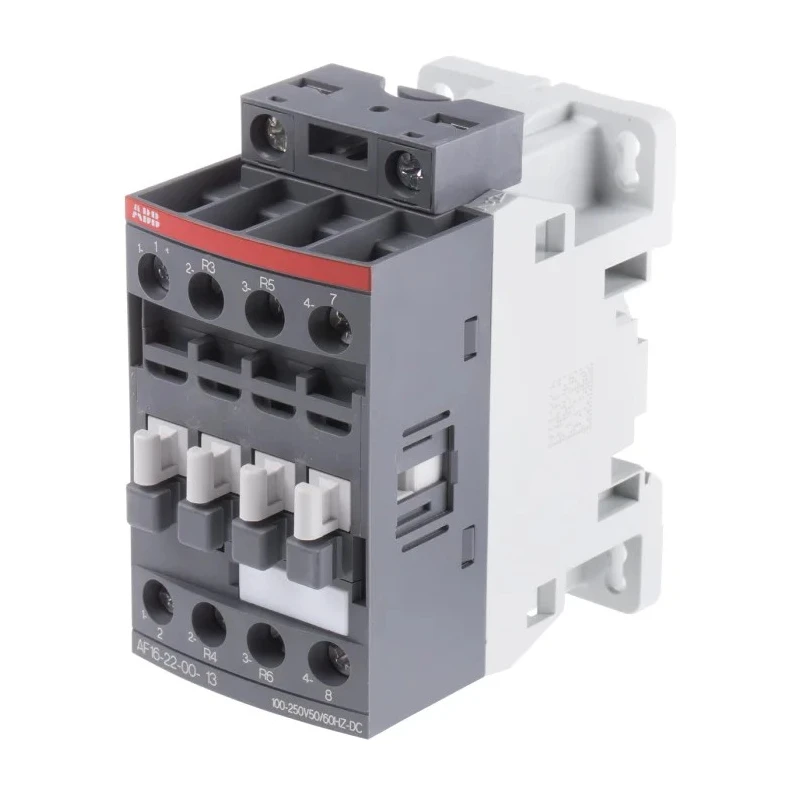

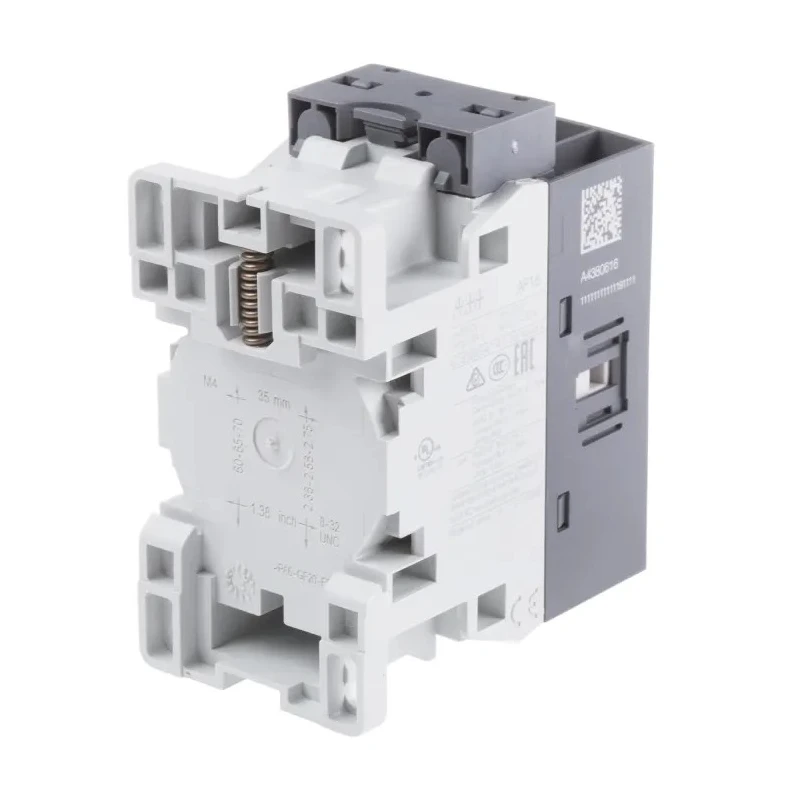

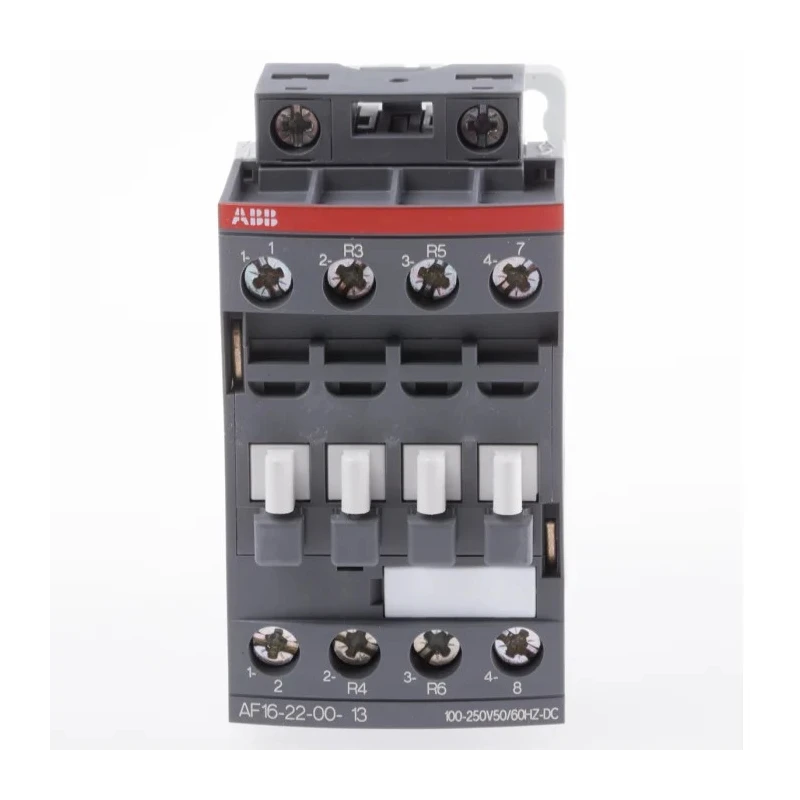

ABB AF16 Contactor, 230V AC Coil Voltage, 4-Pole, 30 A Current, 7.5 kW Power Rating, 2 NO/2 NC, 690V AC Contact Voltage AF16



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	80mm
Model	AF16
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF16
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	2 NO/2 NC
Contact Current	30A
Operational Current Ie	30A
Control Circuit Voltage Uc	250V
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

Operates at a coil voltage of 230V AC.
Features 4 poles with screw terminal connections.
Supports motor loads up to 30 A and 7.5 kW at 250V.
Includes 2 normally open and 2 normally closed contact configurations.
Suitable for DIN rail mounting in control panels.
Works within temperature range from -40°C to +70°C.
Complies with IEC 60947-4-1 standards ensuring industrial reliability.
Designed for motor control applications in industrial environments.

Product Description

ABB AF16 Contactor is a high-quality industrial automation component equipped with a 230V AC coil voltage and designed for motor control applications. Its 4-pole configuration supports robust switching functions, handling currents up to 30 A and power ratings of 7.5 kW at 250V, ideal for reliable three-phase motor operation in manufacturing, construction, and industrial process control.

This contactor features screw terminals for secure and easy wiring, with a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts, allowing flexible control circuit designs for various applications. The device is designed for DIN rail mounting, streamlining installation in industrial control panels.

Engineered to operate reliably in challenging environments, it withstands temperatures from -40°C to +70°C and complies with IEC 60947-4-1 standards, ensuring safety, durability, and performance under demanding conditions. Its compact form factor (45mm width x 77mm depth x 80mm length) minimizes panel space requirements.

Applications include three-phase motor control in automated production lines, HVAC systems, machinery control, and industrial automation setups where high reliability and precision switching are essential. The ABB AF16 contactor supports control voltages up to 250V, providing versatility for diverse electrical control circuits.

Operates with 230V AC coil voltage for efficient motor control. 4-pole construction with 2 NO/2 NC contacts facilitates flexible control schemes. Supports continuous operational current of 30 A ensuring robust performance.

Compact DIN rail mount design enhances ease of installation. Rated for power applications up to 7.5 kW @ 250V. Wide operating temperature range from -40°C to +70°C. Conforms to IEC 60947-4-1 for industrial compliance and safety.

Screw terminal type provides secure and reliable connections. Compact dimensions optimize panel space utilization. Designed for use in industrial and manufacturing motor control systems.

This ABB AF16 contactor is essential for controlling three-phase motors in industrial environments, ensuring safe, efficient, and reliable switching operations. Suitable for applications requiring precise motor control, the device aids in minimizing downtime and enhancing system performance.
