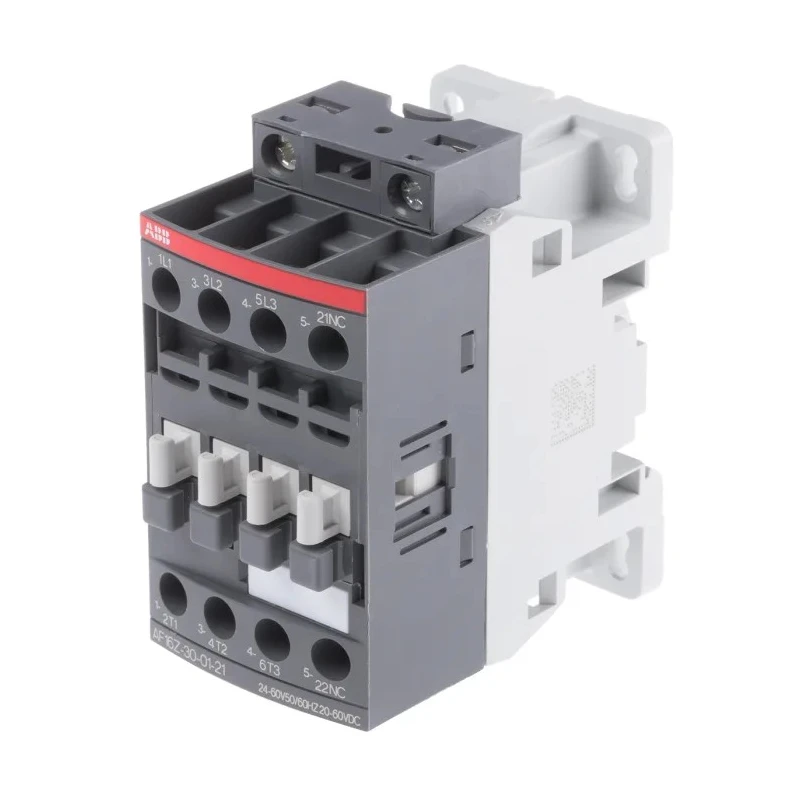

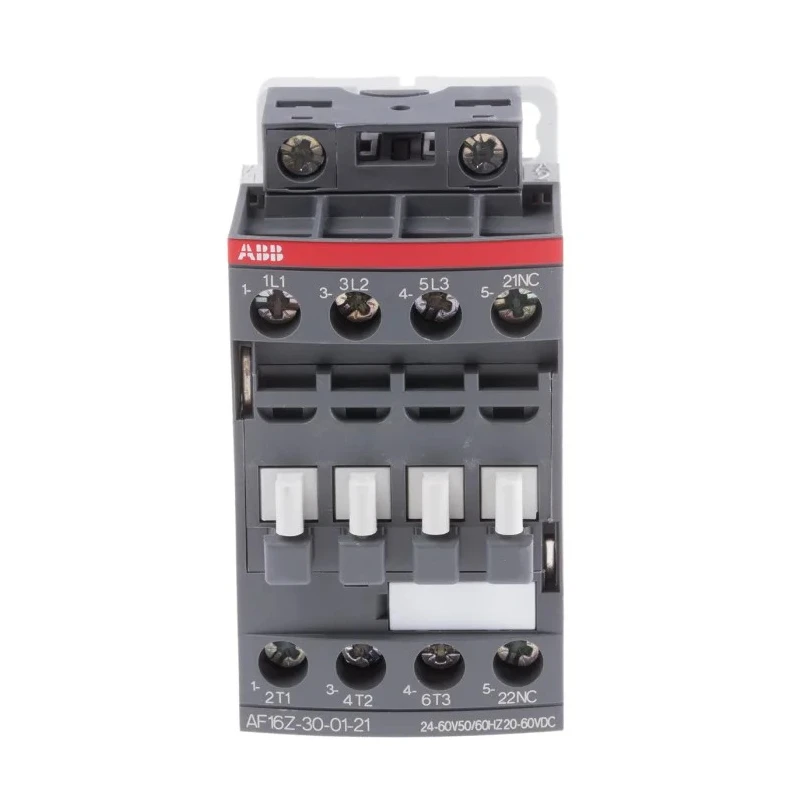

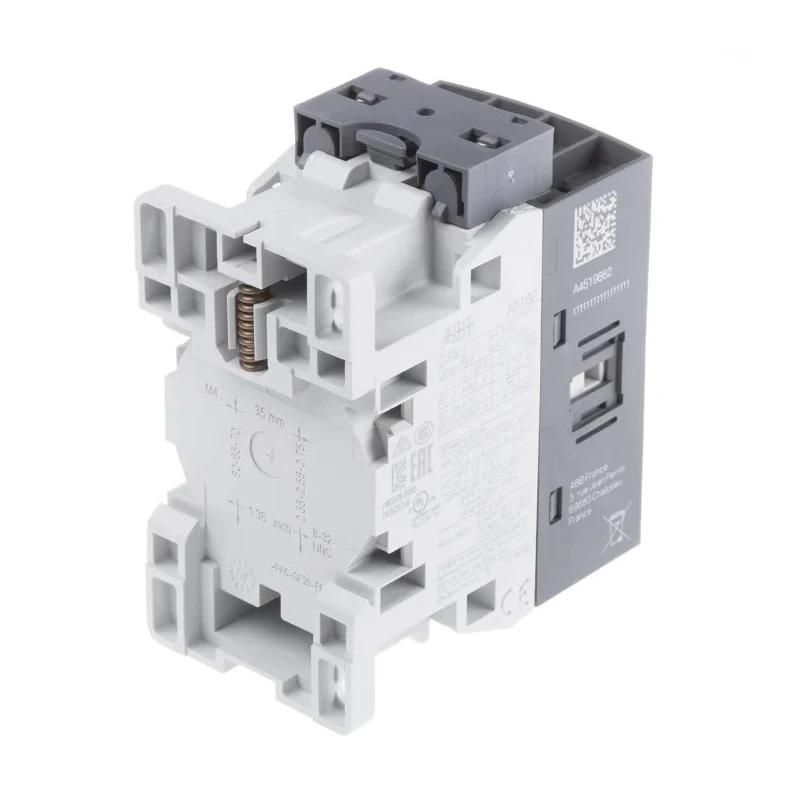

ABB AF16Z Contactor 60V DC Coil, 3-Pole, 10.5 A, 7.5 kW, 3 NO, 690V AC AF16Z



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Control Unit
Length	80mm
Model	AF16Z
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF16Z
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	3 NO
Contact Current	10.5A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	30A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	3P

Key Features

The contactor features a 60V DC coil compatible with control circuits requiring this voltage.
Supports 690V AC contact voltage ensuring high voltage applications.
Includes one auxiliary contact configured as 1 NC for auxiliary control functions.
Designed for DIN rail mounting enabling quick and secure installation in control panels.
Operates reliably within a temperature range of -40°C to 70°C suitable for diverse environments.
Compact dimensions of 80mm length, 45mm width, and 77mm depth enable space-efficient setups.
Constructed with screw-type terminals for secure electrical connections.
Meets IEC 60947-4-1 standards for industrial safety and performance.

Product Description

ABB AF16Z Contactor with a 60V DC coil voltage and 3 poles is a high-performance control unit designed for industrial motor control applications. This contactor supports a contact current of 10.5 A and a power rating of 7.5 kW, capable of handling robust operational demands.

Featuring a durable 3 NO normal state configuration and one auxiliary contact (1 NC), the device integrates surge protection to minimize energy consumption and enhance lifespan. Its block type design allows straightforward expansion through additional contact blocks when needed.

The contactor is mounted via a DIN rail, ensuring standardized installation in electrical cabinets, which simplifies maintenance and replacement. The compact form factor (80mm x 45mm x 77mm) suits tight installations without compromising performance.

Designed to operate efficiently in harsh conditions, it supports a wide temperature range from -40°C to 70°C, making it suitable for extensive industrial and automation environments. It complies with IEC 60947-4-1 electrical standards, guaranteeing safety and reliability.

Typical uses include controlling motors in industrial machinery, automation systems requiring precise control, and power distribution setups demanding dependable switching capabilities. The auxiliary contact provides feedback functionality for control circuits in automated systems.

The contactor’s 60V DC coil enables compatibility with control circuits. 3-pole configuration provides robust switching for various electrical loads. Wide temperature operational range enhances reliability in extreme conditions.

Conforms to IEC safety and operational standards. Compact DIN rail mount design for efficient installation. Auxiliary contact facilitates additional control features in automation. Surge protection minimizes power consumption during switching operations.

Suitable for motor control and industrial automation applications. Durable construction ensures longevity in industrial environments. For precise control and reliable switching in demanding industrial settings, choose the ABB AF16Z contactor. Explore more in our Automation & Control Gear category at EnvMart.
