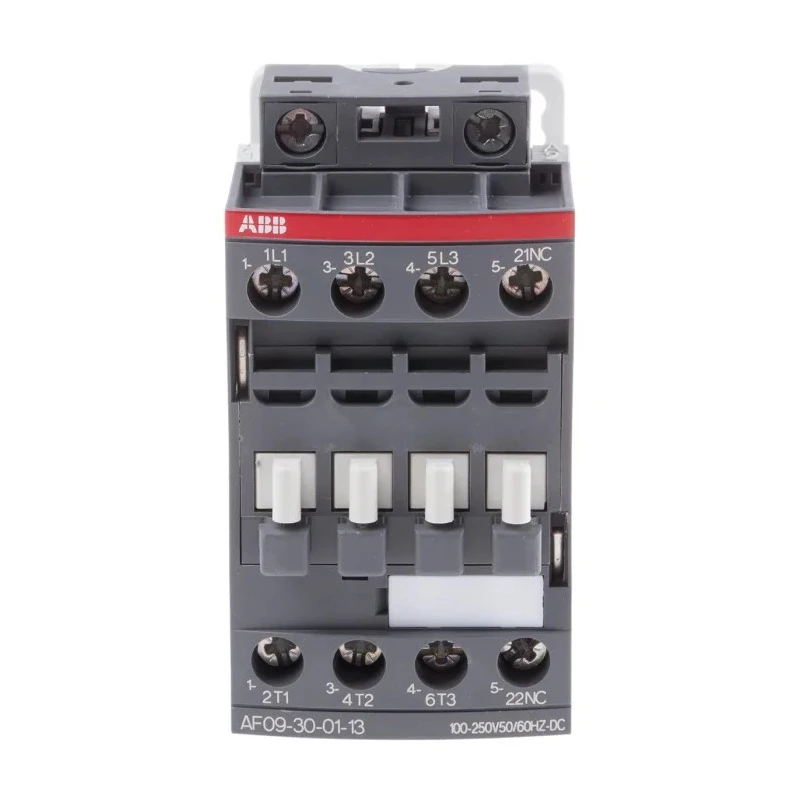

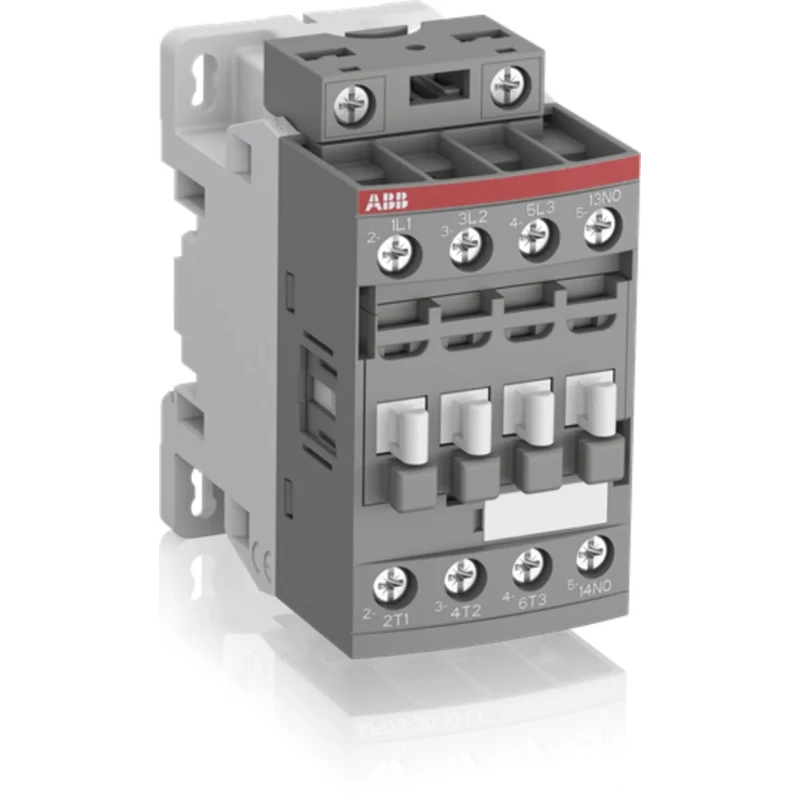

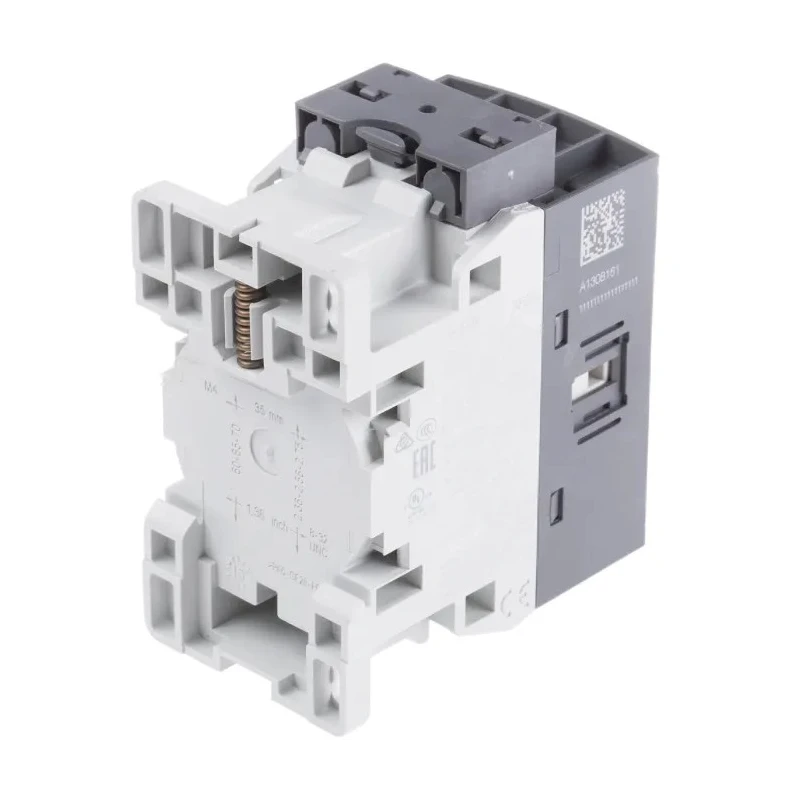

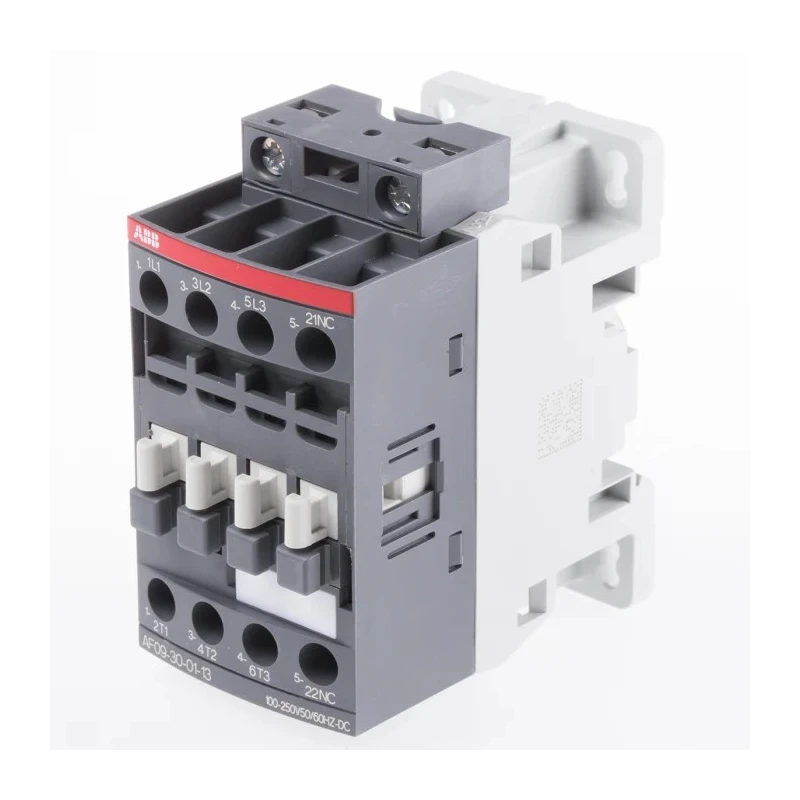

ABB AF Contactor, 230V AC Coil, 3-Pole, 9 A, 4 kW Power Rating, 3 NO Contacts, 690V AC Contact 1SBL137001R1301 AF09-30-01-13



Category Contactor Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Function	Motor Control
Length	86mm
Model	1SBL137001R1301 AF09-30-01-13
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF
Power Rating	4kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	230V ac
Normal State Configuration	3 NO
Contact Current	9A
Number of Auxiliary Contacts	1
Auxiliary Contact Configuration	1 NC
Operational Current Ie	25A
Control Circuit Voltage Uc	130V
Contactor Application	Motor Control
Pole and Throw Configuration	3P

Key Features

Equipped with a 230V AC coil voltage suitable for standard industrial power supply.
Features 3 poles with 3 normally open (NO) contacts for versatile motor control.
Supports a contact voltage of 690V AC and a contact current rating of 9 amperes.
Compact DIN Rail mount design with dimensions 86mm length, 45mm width, and 77mm depth for space-efficient installation.
Operates reliably within a temperature range of -40°C to 70°C for demanding industrial environments.
Includes one auxiliary contact configured as normally closed (NC) with screw terminal connections.
Rated for motor control with an operational current (Ie) of 25A and standard compliance to IEC 60947-4-1.

Product Description

ABB 1SBL137001R1301 AF09-30-01-13 Contactor, designed with a 230V AC coil voltage and rated for motor control applications, delivers dependable switching capability with a power rating of 4 kW.

This 3-pole contactor features 3 normally open (NO) contacts and supports contact currents up to 9 amperes at 690V AC, ensuring efficient load management in industrial motor control circuits.

Its compact dimensions of 86mm (length) x 45mm (width) x 77mm (depth) facilitate installation on standard 35mm DIN rails, conserving valuable panel space.

Built to operate in harsh environmental conditions, it supports a broad temperature range from -40°C to +70°C, making it suitable for automotive, marine machinery, and manufacturing facilities.

The contactor incorporates one normally closed (NC) auxiliary contact with screw terminals improving control circuit flexibility. It complies with IEC 60947-4-1 standards, representing industry-standard safety and reliability.

With a maximum electrical switching frequency of 1,200 cycles per hour, the contactor is ideal for applications requiring rapid switching, such as motor start-stop operations. 230V AC coil voltage for compatibility with common industrial power supplies.

3 poles with 3 NO contacts ensuring safe and effective circuit control. 9A contact current and 4 kW power rating for moderate power motor control. Compact DIN rail mounting reduces panel space requirements. Operational temperature range from -40°C to 70°C for extended service life in demanding environments.

One auxiliary contact (1 NC) provides flexible control circuit configurations. IEC 60947-4-1 compliance guarantees adherence to international standards.

This ABB AF Series contactor is built for reliable motor control in various industrial sectors, including automotive, marine, and manufacturing. It combines robust construction with versatile electrical specifications to suit a range of applications.
