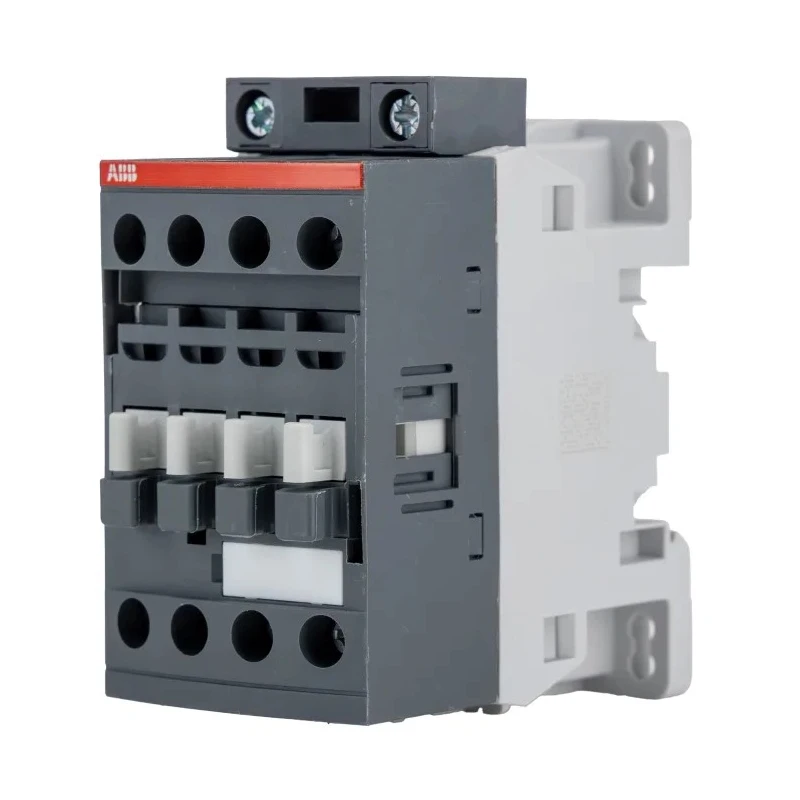

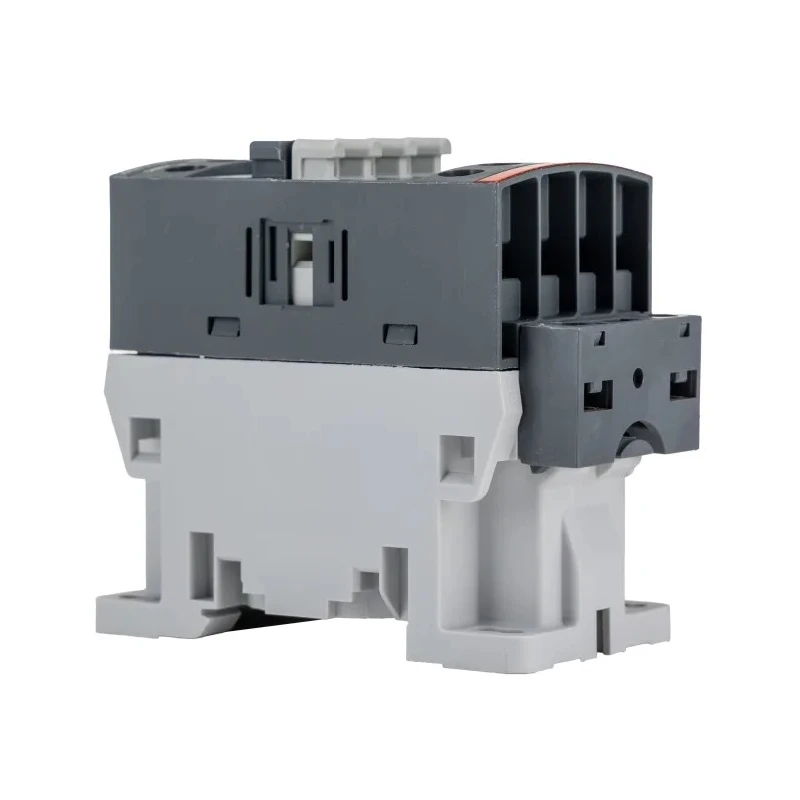

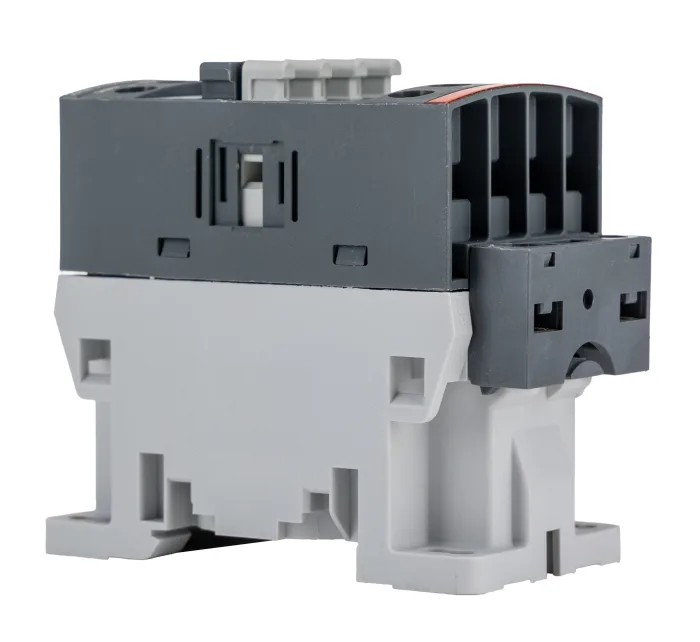

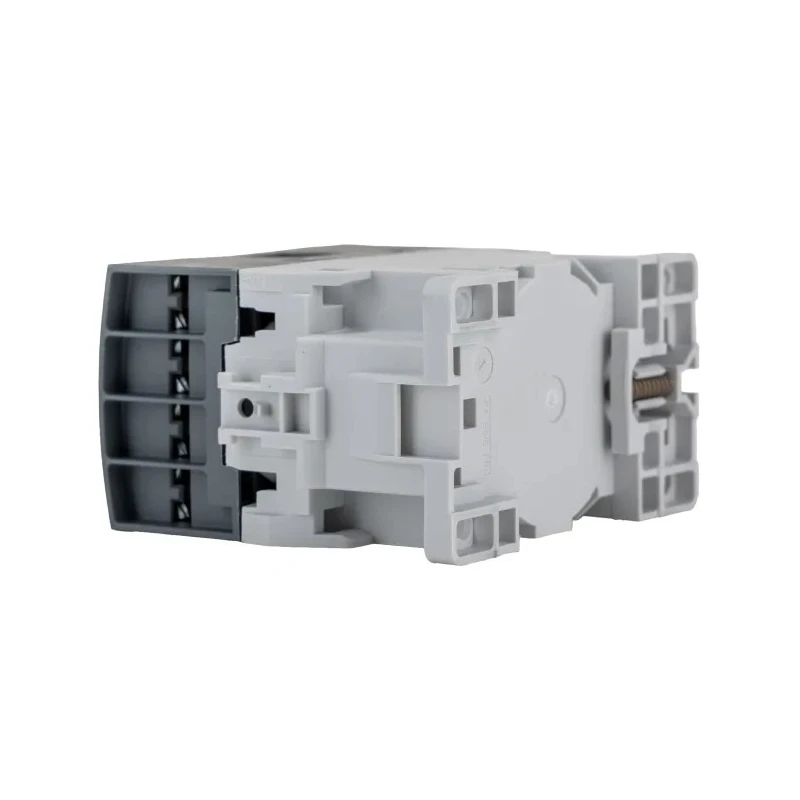

ABB AF Contactor, 4-Pole 30A Motor Control, 7.5 kW Power Rating, 250V Coil 1SBL176501R2300



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Motor Control
Length	77mm
Model	1SBL176501R2300
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC/EN 60947-4-1
Coil Voltage	250V
Normal State Configuration	2 NO/2 NC
Contact Current	30A
Number of Auxiliary Contacts	8
Operational Current Ie	30A
Control Circuit Voltage Uc	250V
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

Designed for motor control with a 4-pole configuration and 30 amp contact current.
Power rated at 7.5 kW suitable for industrial motors.
Operates with a robust 250V coil voltage for reliable switching performance.
Includes 2 normally open (NO) and 2 normally closed (NC) contacts for versatile control.
Mounts securely on DIN rails for stable installation in electrical panels.
Features screw terminals for easy and durable electrical connections.
Built to operate in temperatures ranging from -40°C to +70°C for harsh environments.
Complies with IEC/EN 60947-4-1 standards ensuring high safety and quality.

Product Description

ABB 1SBL176501R2300 AF Contactor is a high-performance motor control device designed for industrial and automation applications. With a 4-pole configuration and 30A contact current, this contactor handles motors up to 7.5 kW effectively while operating at a coil voltage of 250V. It provides reliable switching, ideal for controlling power circuits in manufacturing and electrical systems.

The contactor's robust design includes 2 normally open (NO) and 2 normally closed (NC) contacts, enabling versatile control circuit configurations. It is mounted on a DIN rail, ensuring stable and secure positioning within electrical cabinets. Screw terminals facilitate easy, secure wiring installation.

Engineered for durability, this model operates reliably in extreme temperatures ranging from -40°C to +70°C and meets stringent IEC/EN 60947-4-1 safety and performance standards. Its compact form factor (77 mm length, 45 mm width, 77 mm depth) allows for efficient use in tight spaces.

Key features include a wide operational temperature range, built-in surge protection safeguarding against voltage spikes, and compatibility with a variety of control voltages for flexible application across different industrial environments.

Designed for efficient motor control up to 7.5 kW power rating. Reliable operation with 250V coil voltage and 30A contact current. Compact DIN rail mount design facilitates integration into control panels. Built-in surge protection enhances device and system longevity.

Screw terminal connections ensure ease of installation and maintenance. Operates in extreme temperature ranges from -40°C to +70°C. Complies with international IEC/EN 60947-4-1 standards. Includes 2 NO and 2 NC contacts for versatile control applications.

This ABB AF Contactor is widely used in industrial automation, manufacturing machinery control, and commercial motor control systems. Its robust construction and reliable performance make it a trusted choice for critical motor switching operations.
