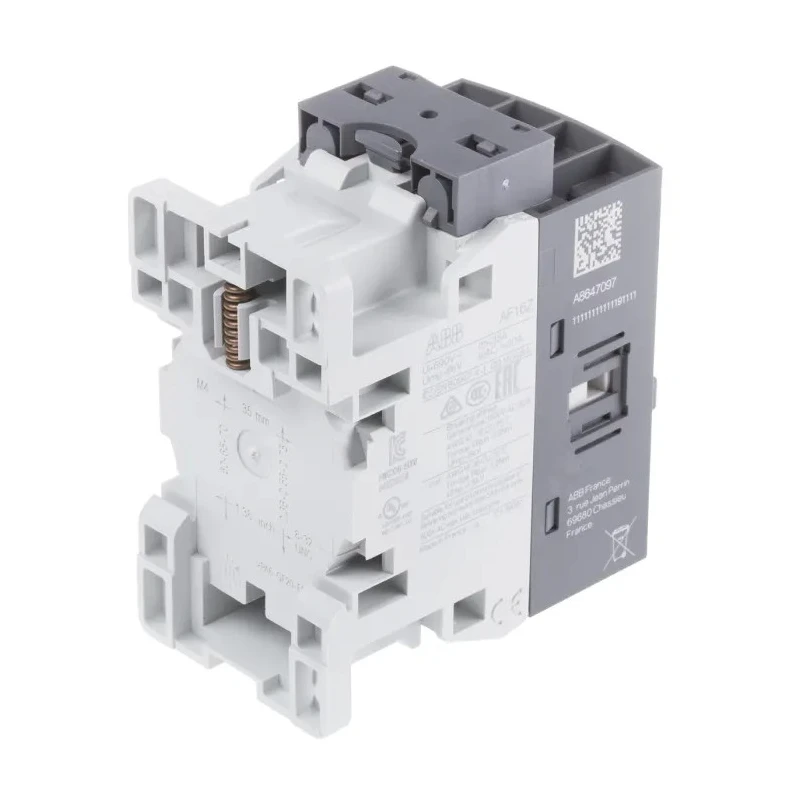

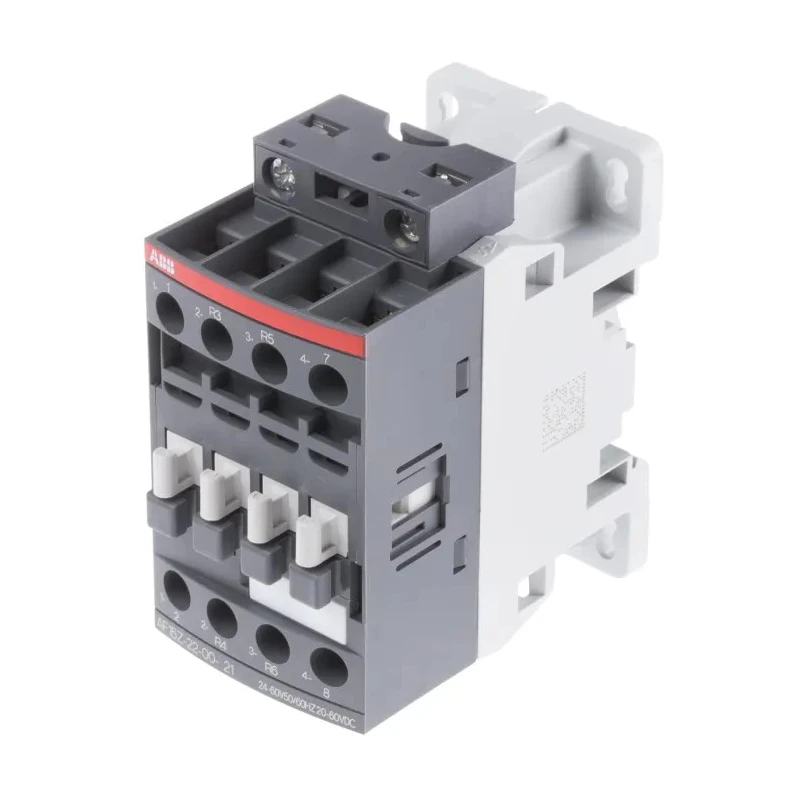

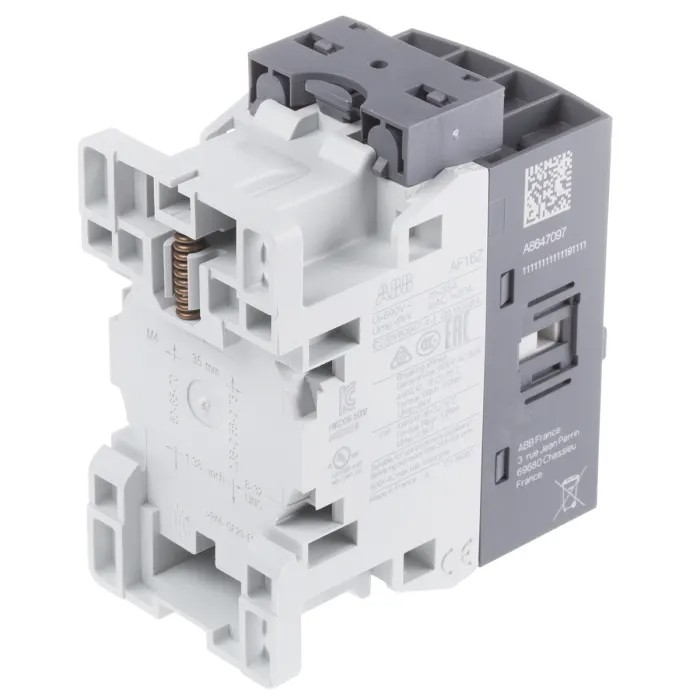

ABB AF16Z Contactor 60V DC Coil 4-Pole 30 A 7.5 kW, 2 NO/2 NC Contacts, 690V AC AF16Z

Free Delivery in India | Lowest Global Shipping Charges

ABB AF16Z Contactor 60V DC Coil 4-Pole 30 A 7.5 kW, 2 NO/2 NC Contacts, 690V AC AF16Z



Category Contactors Brand ABB Condition New

Specifications

Country of Origin	France
Brand	ABB
Function	Control Unit
Length	80mm
Model	AF16Z
Depth	77mm
Width	45mm
Mount Type	DIN Rail
Series	AF16Z
Power Rating	7.5kW
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	4
Standards/Approvals	IEC 60947-4-1
Contact Voltage	690V ac
Coil Voltage	60V dc
Normal State Configuration	2 NO/2 NC
Contact Current	30A
Operational Current Ie	30A
Control Circuit Voltage Uc	60V dc
Contactor Application	Motor Control
Pole and Throw Configuration	4P

Key Features

Equipped with a 60V DC coil voltage for precise control.
Four-pole design supports 2 normally open and 2 normally closed contacts.
Rated for 30 amperes contact current and 690V AC contact voltage.
Power rating of 7.5 kW suitable for industrial motor control.
Compact dimensions of 80mm length, 45mm width, and 77mm depth enable easy DIN rail mounting.
Built-in surge protection enhances reliability and longevity.
Screw terminal connections ensure secure and easy wiring.
Operating temperature range from -40°C to +70°C for diverse environments.

Product Description

ABB AF16Z Contactor with model 1SBL176501R2100 AF16Z-22-00-21 is a 4-pole industrial control unit designed for reliable motor control and power circuit switching. It uses a 60V DC coil and supports a contact voltage of up to 690V AC with a contact current capacity of 30 A and power rating of 7.5 kW. The device is engineered for robust operational stability, featuring built-in surge protection and screw terminals for secure connections.

The compact block design measures 80mm in length, 45mm in width, and 77mm in depth, allowing easy installation on DIN rails in control panels. Its operational temperature range of -40°C to +70°C suits a wide variety of industrial environments. The contactor features a pole and throw configuration of 4 poles with 2 normally open and 2 normally closed contacts, enabling control of three-phase motors and auxiliary circuits.

Compliant with IEC 60947-4-1 standards, this contactor ensures safety and performance in automation and control gear applications. It is widely used in industrial automation systems, power circuit switching for machinery operations, and environments requiring dynamic switching with high reliability.

Equipped with a 60V DC coil voltage for precise control. Four-pole design supports 2 normally open and 2 normally closed contacts. Rated for 30 amperes contact current and 690V AC contact voltage. Power rating of 7.5 kW suitable for industrial motor control.

Compact dimensions of 80mm length, 45mm width, and 77mm depth enable easy DIN rail mounting. Built-in surge protection enhances reliability and longevity. Screw terminal connections ensure secure and easy wiring. Operating temperature range from -40°C to +70°C for diverse environments.

Complies with IEC 60947-4-1 standard for quality and safety.

This contactor is indispensable for industrial applications requiring motor control and power switching solutions, especially where a robust, compact device with surge protection and flexible voltage ratings is critical. Explore more Automation & Control Gear from ABB and related Contactors on EnvMart for industrial-grade solutions.
